  • Page 1 CREATOR’S BOOKLET...
  • Page 2 Enhance your STEM knowledge with the CircuitMess toy collection! Wacky Robots are a quirky group of mini-robots that will help you master the basics of robotics and electronics. Collect all the Wacky Robots and unlock new games for the BIT!
  • Page 3 Connect your robots to Sparkly, a robot car that follows the source of light. Sparkly, BIT, and Wacky Robots are sold separately.

  • Page 4: How Does It Work

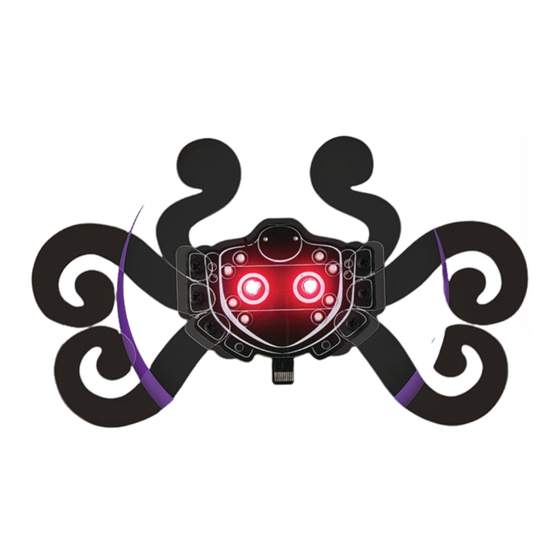

    Meet Artemis Introducing Artemis, a DIY Wacky Robot that will introduce you to the exciting world of robotics and STEM. With Artemis, you’ll learn about different electronic components, counters and resistance. At the end, you’ll have a cool robot that lights up. How does it work? Assemble your Learn about resistance...
  • Page 5 DIY game console. People liked the idea, so he launched it on Kickstarter, which raised $100,745! After that, CircuitMess was born. We are a small and fast–growing team of tech lovers who wish to share our love of creating new technology...
  • Page 7 The mission Everybody knows how important technology is, but less than 1% of the population knows HOW TO MAKE new technology. We’re here to change that! With our kits, we want to inspire people to be CREATORS instead of just consumers.

  • Page 8: What's Inside The Box

    What’s inside the box? LEDs Screwdriver Plastic bolts Coin battery Plastic standoffs Acrylic casings You’ll learn about: Electronics and How counters work Resistance different electronic components...
  • Page 10 What’s a decade counter? What’s a decade counter? A decade counter is a chip whose chip whose A decade counter is a main task is counting impulses main task is counting impulses in the decimal system. in the decimal system. The voltage at which the counter The voltage at which the counter operates is between 3 and 15V.
  • Page 12 The advantages of LED lights LED lights are energy-efficient, long-lasting, and emit less heat. They use up to 90% less energy than regular bulbs, last up to 40 times longer, and have superior light quality. Here’s a breakdown of a few advantages LEDs have: Long Lifespan The average incandescent bulb lasts about 1,000 hours, and the lifespan of an...
  • Page 13 Improved Environmental Performance Many traditional lighting sources use mercury as part of their construction. Because of this, when they reach the end of their lifespans, they require special handling, and LEDs don’t. The Ability to Operate in Cold Conditions LED lights perform better in cold temperatures by about 5%.
  • Page 14 A Brief History of LEDs 1963–1970 1962 Researchers and engineers continue to experiment with Nick Holonyak, Jr. semiconductors with the goal of (the “Father of the LED”) producing more efficient LEDs. invented the first LED that produced visible, red light.
  • Page 15 1994 1972 M. George Craford used one Shuji Nakamura invented red and one green diode to ultrabright blue LEDs that served create a pale yellow light. as the foundation for today’s common commercial LEDs.
  • Page 16 Blue LED - A Nobel Prize Winner Hiroshi Amano, Shuji Nakamura and Isamu Akasaki won a Nobel Prize in Physics in 2014 for inventing the blue LED. Nobel prize...
  • Page 17 But what makes the blue LED so special? With the invention of blue LEDs, scientists were finally able to produce white LED light. White LED light is used in high-quality, energy-efficient displays, such as those used in smartphones, laptops, and televisions. These displays are known as OLEDs (Organic Light Emitting Diodes).
  • Page 18 ARTEMIS BUILD GUIDE You’ll need to break one large acrylic piece from the kit to get a bunch of smaller casings. Warning: Be careful when breaking to avoid damaging the parts you need. In the end, you’ll have nine separate pieces of acrylic casings. If you have excessive acrylic in the holes on the casings, simply push it out.
  • Page 19 This is what your casings should look like: Remove the protective foil from both sides of the casings now.
  • Page 20 After removing the foil, the casings should be transparent.
  • Page 21 Now, we can start with the assembly! Place the casing from the photo below onto the PCB.
  • Page 22 Then, take the casings representing Artemis’ arms, eight plastic bolts, and eight standoffs. The photo above shows the exact arrangement of the casings.
  • Page 23 Take one casing and one bolt. Put the casing representing the arm on the main casing and PCB.
  • Page 24 Put the bolts on the front and the standoffs in the back.
  • Page 25 Fasten the standoff using your fingers.
  • Page 26 Artemis should look like this after Now, we have assembled you put all the casings on it: one side of Artemis: Next, take the coin battery and place it on the backside (make sure the + symbol on the battery matches the + sign on the board - front and up).
  • Page 27 Put whichever LEDs you like on Artemis. Pay attention to the polarity of the LEDs as you connect them. If you flip Artemis around, you’ll notice the + and - signs next to each connector. Those represent the polarity. Plus and minus signs on the LED are marked with cut-off (-) and rounded (+) parts on the LED.

  • Page 28: On/Off Switch

    Push the on/off switch and check if the LEDs are lighting up. Take them out and invert them if they don’t light up. On/Off Switch...
  • Page 29 After you’ve inserted all the LEDs, they’ll light up in the circle one after the other.
  • Page 30 You can now see how the decade counter functions. To adjust the speed of the counter, you can use the potentiometer located on Artemis’ back. You can adjust it by twisting the potentiometer with a screwdriver. On/Off Switch Potentiometer...
  • Page 31 We hope you enjoyed putting Artemis We hope you enjoyed putting Artemis together and learned something new. together and learned something new. Connect it to the CircuitMess Connect it to the CircuitMess BIT and unlock a new game! BIT and unlock a new game!

  • Page 33: Safety First

    If you have never used a screwdriver, carefully follow the assembly instructions on our website and, if necessary, ask someone more experienced or older than you to help you. If you are having problems with our kit, contact our customer support via email at contact@circuitmess.com.
  • Page 34 If you Overheating may cause an explosion. suspect that any part of your CircuitMess Wacky Robots kit (especially the batteries) • Do not disassemble or damage the is damaged, stop using the device. Using battery to avoid battery leakage, a damaged device may cause injury.
  • Page 35 If you are not sure whether your device that evaporate, such as helium, can damage or the included battery is safe to use, the functionality of CircuitMess Wacky Robots. turn off the device, put it in a safe place, Do not use CircuitMess Wacky...
  • Page 36 These devices can be used in all EU suitable for the child’s age and abilities. Member States. Check all the national 3. Check from time to time if CircuitMess and local regulations about using the Wacky Robots are damaged or worn device.
  • Page 37 Croatia parts or electronic components supplied OIB: 50943449035 in the CircuitMess Wacky Robots DIY educational kits, CircuitMess d.o.o. will Proper disposal of this product repair the product or send an equivalent WEEE markings on the product indicate that replacement product at their own expense.
  • Page 38 Malfunctions due to improper handling, faults due to wear of the device and/or CircuitMess d.o.o. as the warranty provider its parts (in you need help with assembly and/or its authorized partners will not or if you have difficulty using the device...
  • Page 39 WARRANTY SHEET CircuitMess Wacky Robots Product name: do-it-yourself educational solder kit Warranty on components and 24 months parts contained in this set is: Date of purchase: Seller and point of sale stamp: Invoice number: Information on interventions during warranty period is entered by a repair shop technician at an authorized repair shop.
  • Page 40 Scan and find more fun games and lessons:...
