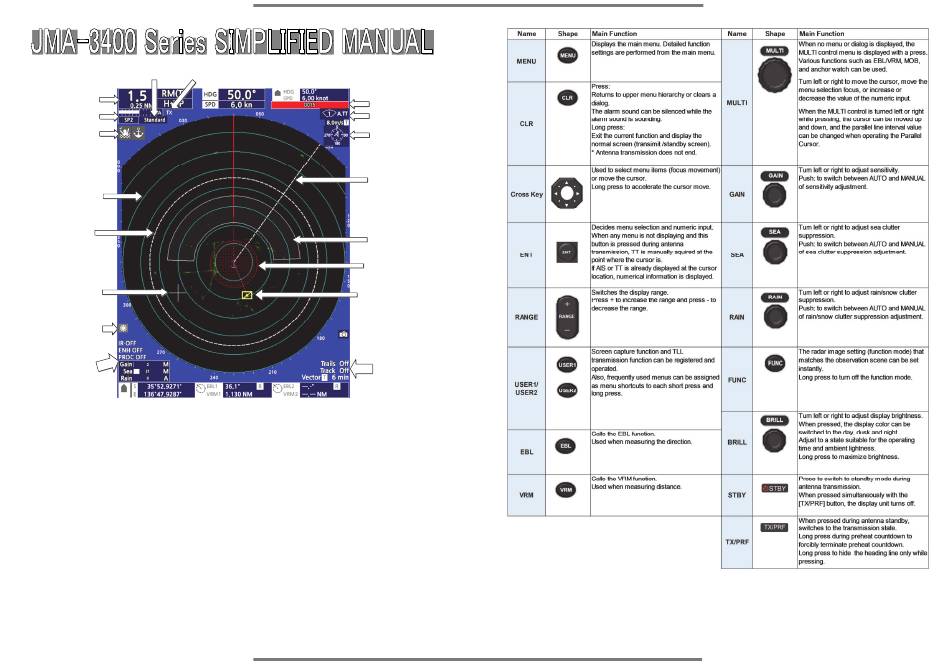

JRC JMA-3400 Series Simplified Manual

Function mode
Scanner transmission status
Range
Tune/Pulse Width
MOB/Anchor Watch
running icon
Range Rings
VRM
Cursor
Display color setting/
System running animation
*Icon drawing is updated
at regular intervals.
Radar Echo setting
Sensitivity adjustment
Sea clutter suppression
Rain/snow clutter
suppression
■Notice:
・ Please read the instruction manual for details.
Keep this simplified instruction manual in a safe place and refer to it when necessary.
・ Use the radar only as a navigation aid.
The final navigation decision must always be made by the operator him/herself.
Making the final navigation decision based only on the radar display may cause accidents such as collisions or running aground.
・ When using the sea clutter suppression function, never set the suppression level too high canceling out all image noises from the
sea surface at close range.
Detection of not only echoes from waves but also targets such as other ships or dangerous objects will become inhibited.
・ When using the rain/snow reflection suppression function, never set the suppression level too high canceling out all image noises
from the rain or snow. Detection of not only echoes from the rain or snow but also targets such as other ships or dangerous objects
will become inhibited.
・ Use the target tracking function only as a navigation aid.
The final navigation decision must always be made by the operator him/herself.
Making the final navigation decision based only on the target tracking function information may cause accidents.
Operation Unit
Alarm
Guard Zone mode
Wind direction/speed
EBL
Guard Zone
Anchor Watch
MOB
Radar Trail length
Own Track length
Vector length
Code No. 7ZPRD1010
