JRC JMA-3300 Brochure

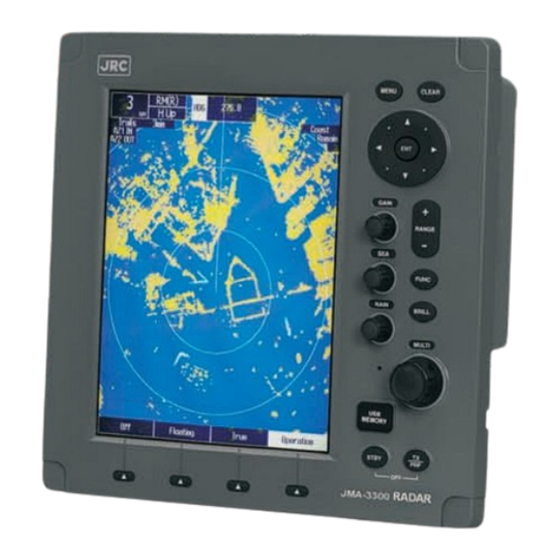

Jma-3300 series 10.4-inch ultra bright lcd new system-on-chip technology, semi-constaview digital signal processing ais and marpa+, as standard high speed version available
Hide thumbs Also See for JMA-3300:

Advertisement

Quick Links

JMA-3300
Radar
– JRC's new radar incorporates the latest leading technologies
10.4-inch ultra bright LCD
New System-on-Chip technology
Semi-Constaview™ digital signal processing
AIS and MARPA+™ as standard
High speed version available

Advertisement

loading

Summary of Contents for JRC JMA-3300

  • Page 1 JMA-3300 Radar – JRC’s new radar incorporates the latest leading technologies 10.4-inch ultra bright LCD New System-on-Chip technology Semi-Constaview™ digital signal processing AIS and MARPA+™ as standard High speed version available...
  • Page 2: Ais And Marpa

    The new radar has the ability to display 50 AIS symbols, and 10 MARPA+™ tracking targets as standard. The high quality of the display provides outstanding target definition and discrimination. The (second generation) MARPA+™ continues JRC’ s successful MARPA+™ technology first found in the previous JMA-2300 radar series. Our engineers continued developing and improving the technology, until now, with MARPA+™, manual or automatic target tracking is even more reliable.
  • Page 3: Simple Operation

    JMA-3300 series – easy user interface Simple operation Smooth and comfortable operation is guaranteed with the solid and responsive feel of the keys. A dedicated jog-dial is conveniently integrated as well as the function keys for one-touch access to GAIN, SEA and RAIN. The JMA-3300 also incorporates 4 soft-key switches just below the display that can be assigned by the user.
  • Page 4: System Diagram

    JMA-3300 series – configration System diagram What’s in the box ∙ Display ∙ Scanner ∙ Cables ∙ Spare parts ∙ Operation guide/manual ∙ Installation manual Which cables ∙ Display to scanner 5/10/15/20/30 m Options ∙ Display cover...
  • Page 5: Display Unit

    JMA-3300 series – dimensions Display unit NCD-2182 Flush mounting hole Mass Approx. 5 kg 274 0.5 4-M 5 4-R10 268 1 Scanner unit 4kW NKE-2042 Mass Approx. 10.5 kg 4-M8 25mm DEEP FORWARD CABLE INLET 6kW NKE-2062/2062HS Mass Approx. 24 kg 1190 SWING CIRCLE 1220 317.5 10kW NKE-2103-4/2103-4HS NKE-2103-6/2103-6HS...
  • Page 6 GGA, GNS, GLL, RMC, VTG, VBW, VHW, THS, HDT, HDG, HDM, DPT, DBT, MTW, ROT, RSA, VDM, VDO, ALR, VWT, VWR IEC61162 (4800/38400bps - THS, HDT, HDG, HDM) Input (heading) JRC-NSK format (JLR-20/30) Gyro-sync/step (360x, 180x, 90x, 36x) *1 IEC61162 (4800bps - VBW, VHW)
