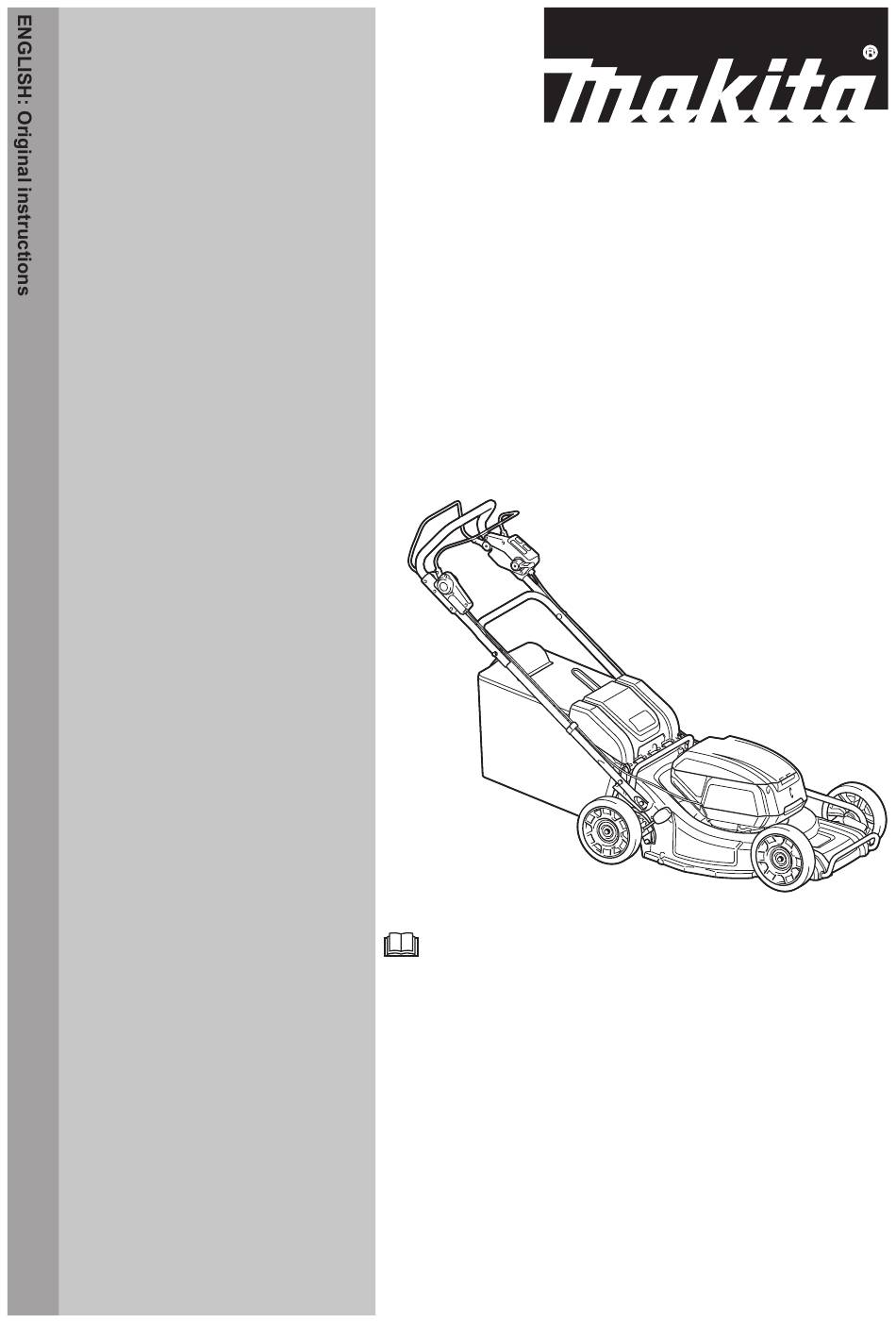

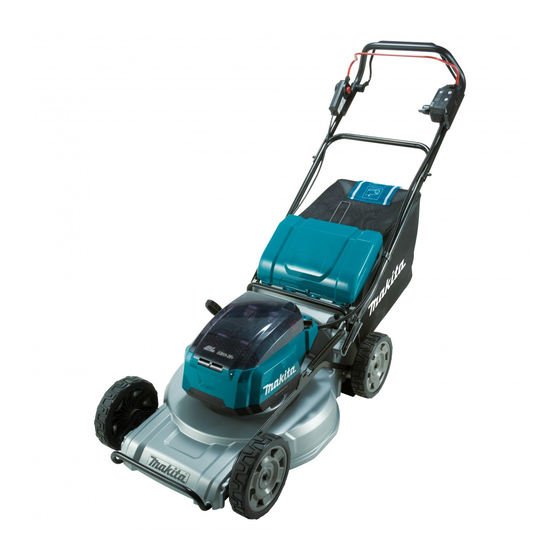

- Page 1 INSTRUCTION MANUAL Cordless Lawn Mower DLM537 Read before use.
-
Page 2: Specifications
SPECIFICATIONS Model: DLM537 Mowing width (blade diameter) 534 mm No load speed Normal mode 2,800 min Noise reduction mode 2,300 min Part number of replacement Straight mower blade 191D52-7 mower blade Swing back mower blades *1 191D50-1 Swing back mower blades *2 191D48-8 Dimensions L: 1,655 mm to 1,740 mm... -
Page 3: Save All Warnings And Instruc- Tions For Future Reference
Save all warnings and instruc- Remove foreign matters such as rocks, wire, bottles, bones and large sticks from the work tions for future reference. area before mowing to prevent personal injury or damage to the mower. Training Objects struck by the mower blade can cause Read the instructions carefully. - Page 4 13. Do not tilt the mower when switching on the 30. Avoid working in poor environment where motor, except if the mower has to be tilted for increased user fatigue is expected. starting. In this case, do not tilt it more than 31.
- Page 5 16. Perform inspection or maintenance in a place If the battery cartridge gets wet, drain the where rain can be avoided. water inside and then wipe it with a dry cloth. Dry the battery cartridge completely in a dry 17. After using the machine, remove the adhered place before use.
-
Page 6: Installing The Handle
Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury and damage. It will also void the Makita warranty for the Makita tool and charger. ► 1 . Lower handle 2. Bolt Tips for maintaining maximum... -
Page 7: Removing The Mulching Plug
CAUTION: Hold the upper handle firmly so that it does not drop off your hand. Otherwise, the handle may fall and cause an injury. Attach the holders to the handle. Align the protrusions on the holder with the holes on the handle so that the protrusions fit in the holes. Position the cords as shown in the figure. ► 1 . Cord 2. Holder ► 1 . -
Page 8: Functional Description
Attach the mulching plug while holding down the Installing or removing the grass lever, and then release the lever to lock the mulching basket plug. To install the grass basket, follow the steps below. Open the rear cover. ► 1 . Lever 2. Mulching plug ► 1 . -
Page 9: Overload Protection
To install the battery cartridge; To remove the battery cartridge; Pull up the locking lever, and then open the battery Pull up the locking lever and open the battery cover. cover. Pull out the battery cartridge from the machine while sliding the button on the front of the cartridge. Pull out the lock key. -
Page 10: Control Panel
Indicating the remaining battery Control panel capacity The control panel has the main power switch, the mode switching button, and the indicator of remaining battery Only for battery cartridges with the indicator capacity. ► 1 . Indicator lamps 2. Check button Press the check button on the battery cartridge to indi- cate the remaining battery capacity. -
Page 11: Adjusting The Mowing Height
If you notice anything unusual with either of the the mower body when adjusting the mowing lock key or switch, stop the operation immediately and height. have them checked by your nearest Makita Authorized Service Center. WARNING: Always make sure that the lever fits in the groove properly before operation. - Page 12 The mowing height can be adjusted in the range of NOTE: The mowing height figures should be used between 20 mm and 100 mm. just as a guideline. Depending on the conditions of Remove the lock key, and then pull the mowing height the lawn or the ground, the actual lawn height may adjusting lever outward of the mower body and move it become slightly different from the set height. to your desired mowing height. NOTE: Try a test mowing of grass in a less conspicu- ous place to get your desired height.
-
Page 13: Adjusting The Handle Height
Electric brake This machine is equipped with an electric brake. If the machine consistently fails to quickly stop the mower blades after releasing the switch lever, have the machine serviced at Makita Authorized Service Center. ► 1 . Speed lever The traveling speed can be adjusted with the speed lever. -
Page 14: Operation
The center lines of the front wheels are guidelines to mowing OPERATION width. Using the center lines as guidelines, mow in strips. Overlap by one half to one third the previous strip to mow the lawn evenly. Mowing WARNING: Before mowing, clear away sticks and stones from mowing area. -
Page 15: Emptying The Grass Basket
NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. 15 ENGLISH... -
Page 16: Carrying The Mower
Removing the mower blade Carrying the mower For models equipped with straight mower When carrying the mower, hold the front grip and rear blade grip with two people as shown in the figure. Put the mower on its side so that the mowing height adjusting lever comes to the upper side. To lock the blade, insert the pin supplied with the machine into a hole on the mower body. - Page 17 For models equipped with swing back To remove the individual mower blade, turn the bolt counterclockwise with box wrench 17 while holding mower blades the base plate. Put the mower on its side so that the mowing height adjusting lever comes to the upper side. To lock the base plate, insert the pin supplied with the machine into a hole on the mower body through a hole on the base plate.
-
Page 18: Troubleshooting
To install the mower blades, perform the removal proce- dure in reverse. TROUBLESHOOTING Before asking for repairs, conduct your own inspection first. If you find a problem that is not explained in the manual, do not attempt to disassemble the machine. Instead, ask Makita Authorized Service Centers, always using Makita replacement parts for repairs. State of abnormality Probable cause (malfunction) Remedy Mower does not start. -
Page 19: Optional Accessories
The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attach- ment for its stated purpose. If you need any assistance for more details regard- ing these accessories, ask your local Makita Service Center. • Mower blade •... - Page 20 Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 885848-922 www.makita.com 20200720...
