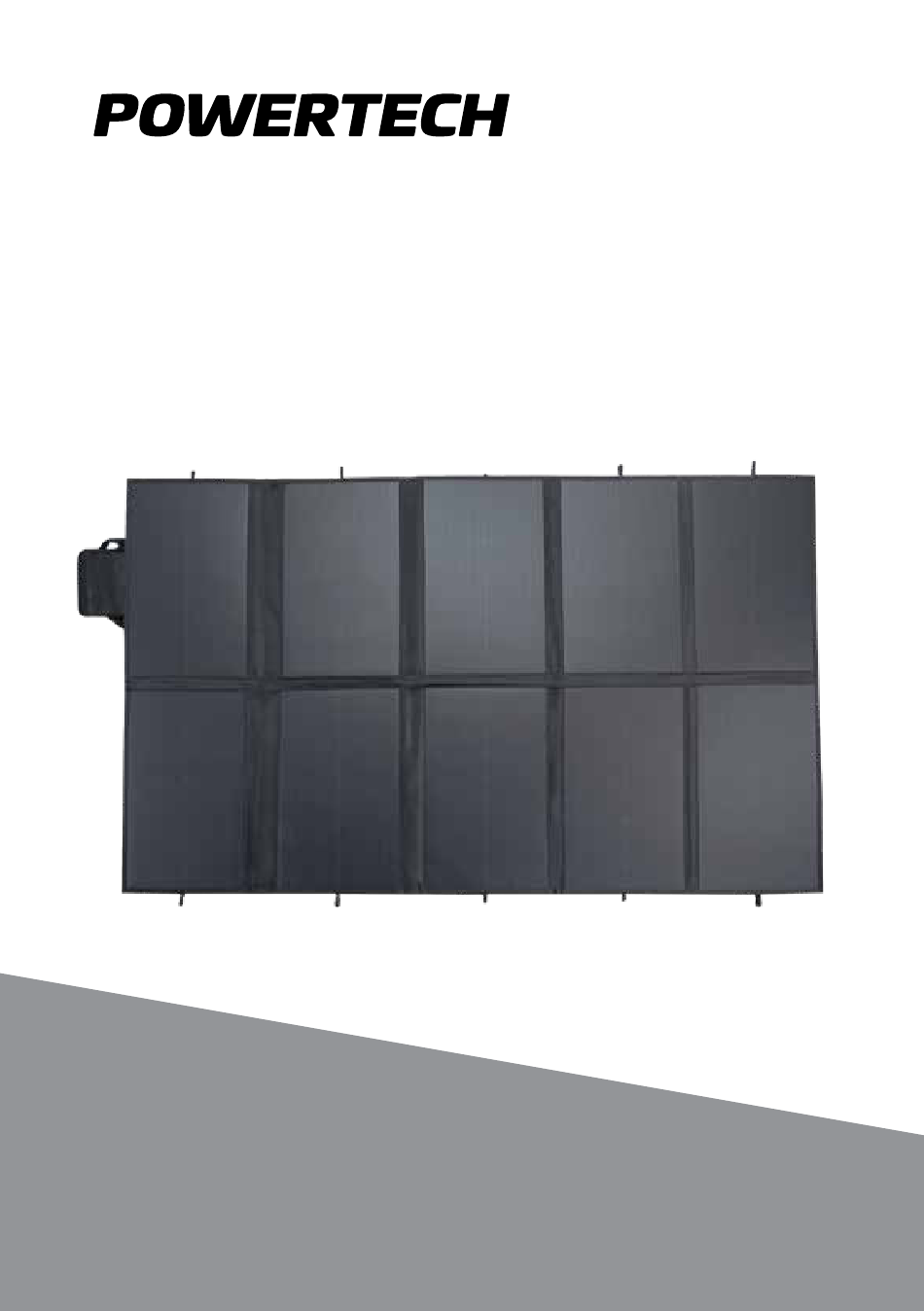

- Page 1 ZM9126 Blanket Solar Panel with Charge Controller Instruction Manual...
-
Page 2: Table Of Contents
CONTENTS Before First Use ..................... 2 Warnings & Safety Information ..............3 Box Contents ....................4 Operating Instructions .................4 How to charge a 12V Battery ..............4 Operating The Charge Controller ............. 5 LCD Display / Key ..................5 Display / Settings ..................6 Troubleshooting .................... -
Page 3: Warnings & Safety Information
WARNINGS & SAFETY INFORMATION WARNING: The manufacturer is not responsible for any potential injury from misuse Please ensure that you have read the product manual and instructions in full before using this product. Failure to do so may result in incorrect operation and potentially impact the performance of the product. -
Page 4: Box Contents
BOX CONTENTS 1 x 400W Blanket Solar Panel 1 x 30PWM Solar Controller 2 x 50A Connector 10CM Lead with Rubber Cap 1 x 50A Connector 4.5M Extension Lead 1 x 50A Connector to Alligator Clips 0.5M Lead OPERATING INSTRUCTIONS •... -
Page 5: Operating The Charge Controller
OPERATING THE CHARGE CONTROLLER LCD DISPLAY / KEY... -
Page 6: Display / Settings
DISPLAY / SETTINGS... -
Page 7: Troubleshooting
TROUBLESHOOTING ISSUE LIKELY CAUSE SOLUTION E01 Low battery voltage, load Change the battery or change a new battery. off E02 Overload, load off Decrease the load, the use (-) button to turn on the load. Load will automatically turn on after 2 minutes. ... -
Page 8: Full Technical Parameters
FULL TECHNICAL PARAMETERS... -
Page 10: Specifications
SPECIFICATIONS Solar Panel Solar Cell Type Monocrystalline Rated Maximum Power (PM) 400W Open-Circuit Voltage (VOC) 23.9V Short-Circuit Current (ISC) 19.6A Voltage at Pmax (VMP) 19.2 Current at Pmax (IMP) 18.2A Power Tolerance ±5% Normal Operating Cell Temp (NOCT) 47±2ºC Maximum Series Fuse Rating Operating Temperature -40 to +85ºC Application Class... -
Page 11: Warranty Information
WARRANTY INFORMATION Our product is guaranteed to be free from manufacturing defects for a period of 12 Months. If your product becomes defective during this period, Electus Distribution will repair, replace, or refund where a product is faulty; or not fit for intended purpose.
