PowerTech ZM9137 User Manual

Folding Solar Panel
User Manual

INTRODUCTION:

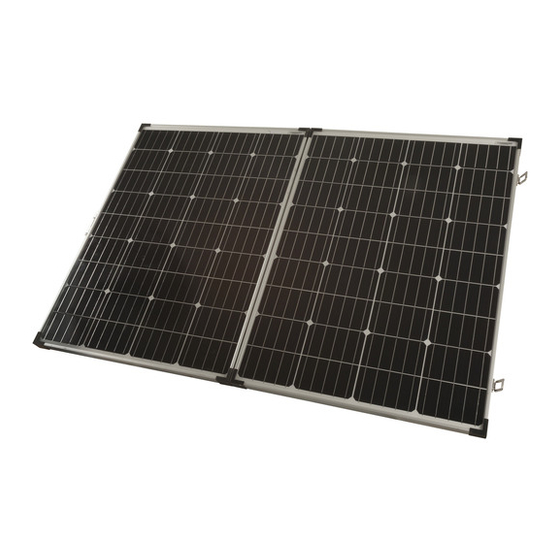

ZM9137 is one of the new generation of portable green energy systems. The product mainly consists of two solar
panels and a charge controller/regulator. Its portability makes it ideal for vehicles, campers, boaters or trekkers,
particularly in forests, mountainous areas, islands etc. where other power sources are impractical.

CONSTRUCTION:

The portable folding solar kit uses top quality monocrystalline silicon solar cells, a high quality solar control
regulator, heavy-duty connecting cable, and the folding stands are made of high grade aluminum alloy.

SPECIFICATIONS:

Type:
Peak Power:
Rated Voltage:
Voltage @ Peak Power:
Current @ Peak Power:
Panel Dimensions:
Gross Weight:

THE REGULATOR HAS THE FOLLOWING FUNCTIONS:

• Battery protection: Automatically disconnects battery at night to prevent back discharge.
• Over charge, short-circuit and reversed polarity protection: When problem is corrected, system automatically
returns to normal without damage.
• Over-discharge protection plus optimized charging function (fast and float) ensure maximum battery working
lifetime.

USAGE:

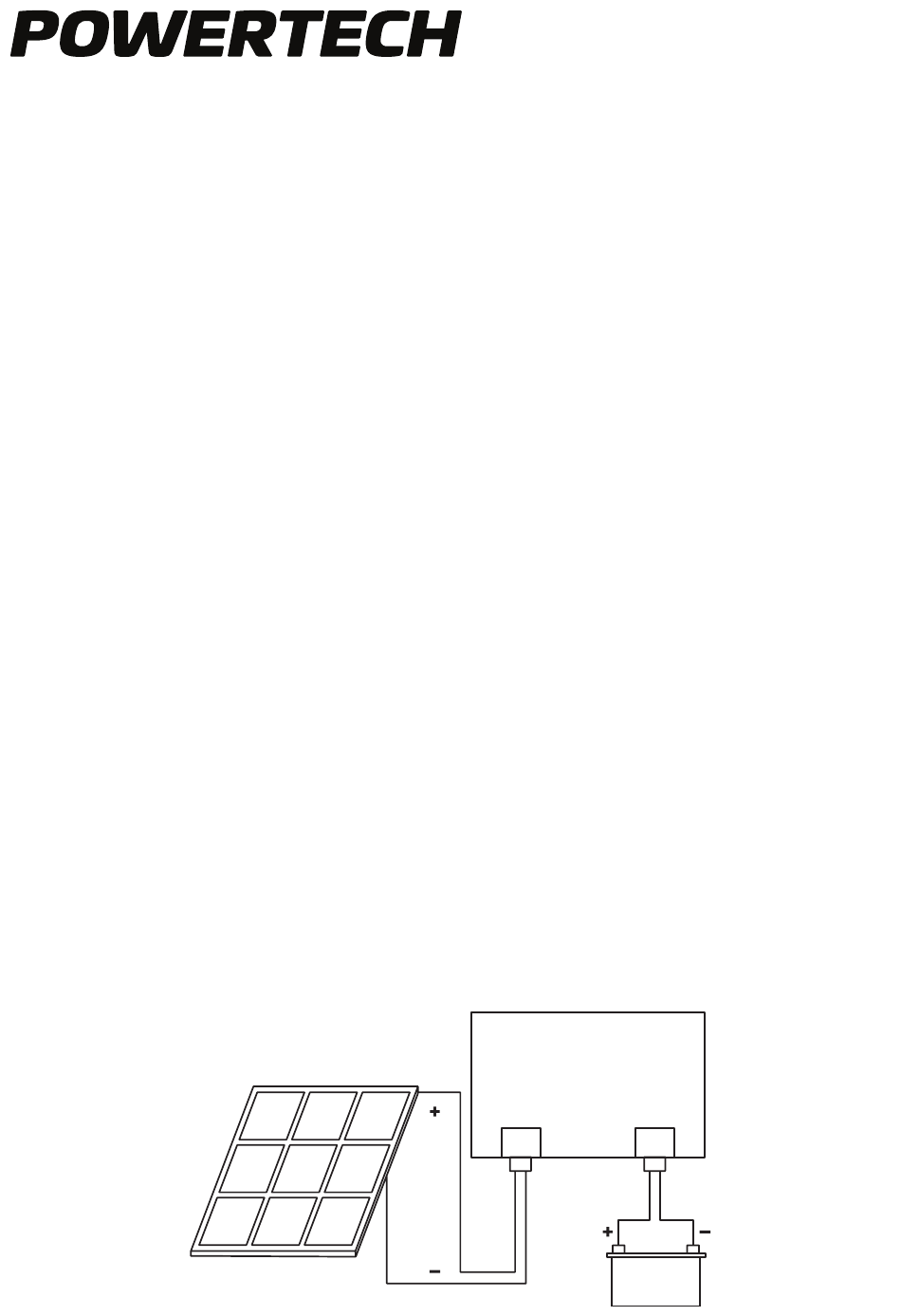

• Connect all parts according to the following drawing, be sure polarity is correct. (That is, ensure "+" goes to "+"
and "-" goes to "-" (Note the panel comes with a charge controller, only connect battery to charge controller via
supplied battery cable).
Monocrystalline Solar Cells
200W
12V
18.2V
10.99A
895 (L) x 73 (W) x 680 (H) mm (Closed)
1790 (L) x 36 (W) x 680 (H) mm (Open)
15.3kg
SOLAR CHARGE CONTROLLER
BATTERY
ZM9137
