Summary of Contents for PowerTech ZM9124

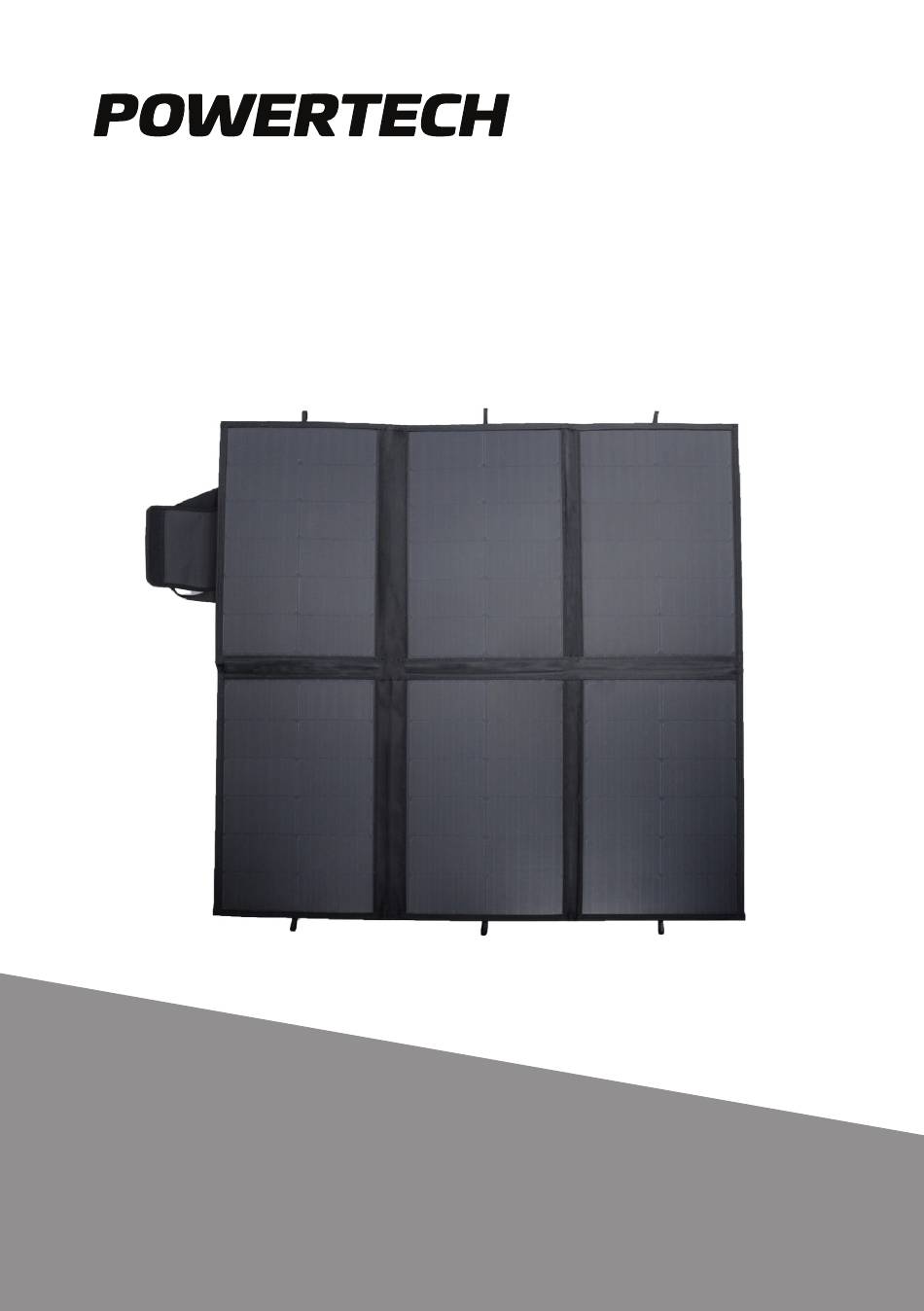

- Page 1 ZM9124 Blanket Solar Panel with Charge Controller Instruction Manual...
-
Page 2: Table Of Contents
CONTENTS Warnings & Safety Information ..............3 Before First Use .....................4 Box Contents ....................4 Operating Instructions .................4 How to charge a 12V battery ..............5 MPPT Solar Charger Indicator..............5 Troubleshooting ....................6 Specifications ....................7 Warranty Information ...................8... -
Page 3: Warnings & Safety Information
WARNINGS & SAFETY INFORMATION WARNING: The manufacturer is not responsible for any potential injury from misuse Please ensure that you have read the product manual and instructions in full before using this product. Failure to do so many result in incorrect operation and potentially impact the performance of the product. -
Page 4: Before First Use
BEFORE FIRST USE Prior to using your product, please read all the safety and operating instructions thoroughly. Please ensure you follow the steps below before using the product. We recommend you keep the original packaging for storing the product when not in use. -
Page 5: How To Charge A 12V Battery
HOW TO CHARGE A 12V BATTERY • Connect the battery to the solar charge controller. • Connect load to the MPPT solar charge controller. • Connect solar panel to the MPPT solar charge controller. • Reverse this order when disconnecting. NOTE: Heavy loads should not be connected to the battery. -
Page 6: Troubleshooting
TROUBLESHOOTING ISSUE LIKELY CAUSE SOLUTION Charging symbol not Solar has been improperly Reconnect the solar panel displaying even when the connected to the MPPT ensuring that the positive solar panel is in the sun controller and negative terminals are appropriately connected Load icon is off Battery is low, the load Charge the battery... -
Page 7: Specifications
SPECIFICATIONS Solar Panel Solar Cell Type Monocrystalline 166 x 166mm Power Output 200W Open Circuit Voltage 24.7V Short Circuit Current 9.06A Working Voltage 20.1V Working Current 8.5A Weight 5.8KG Dimensions Folded: 560(W) x 390(H)mm Unfolded: 1170(W) x 1120(H)mm MPPT Solar Charge Controller Rated Charge Current Rated Discharge Current Rated Voltage... -
Page 8: Warranty Information
WARRANTY INFORMATION Our product is guaranteed to be free from manufacturing defects for a period of 12 Months. If your product becomes defective during this period, Electus Distribution will repair, replace, or refund where a product is faulty; or not fit for intended purpose.
