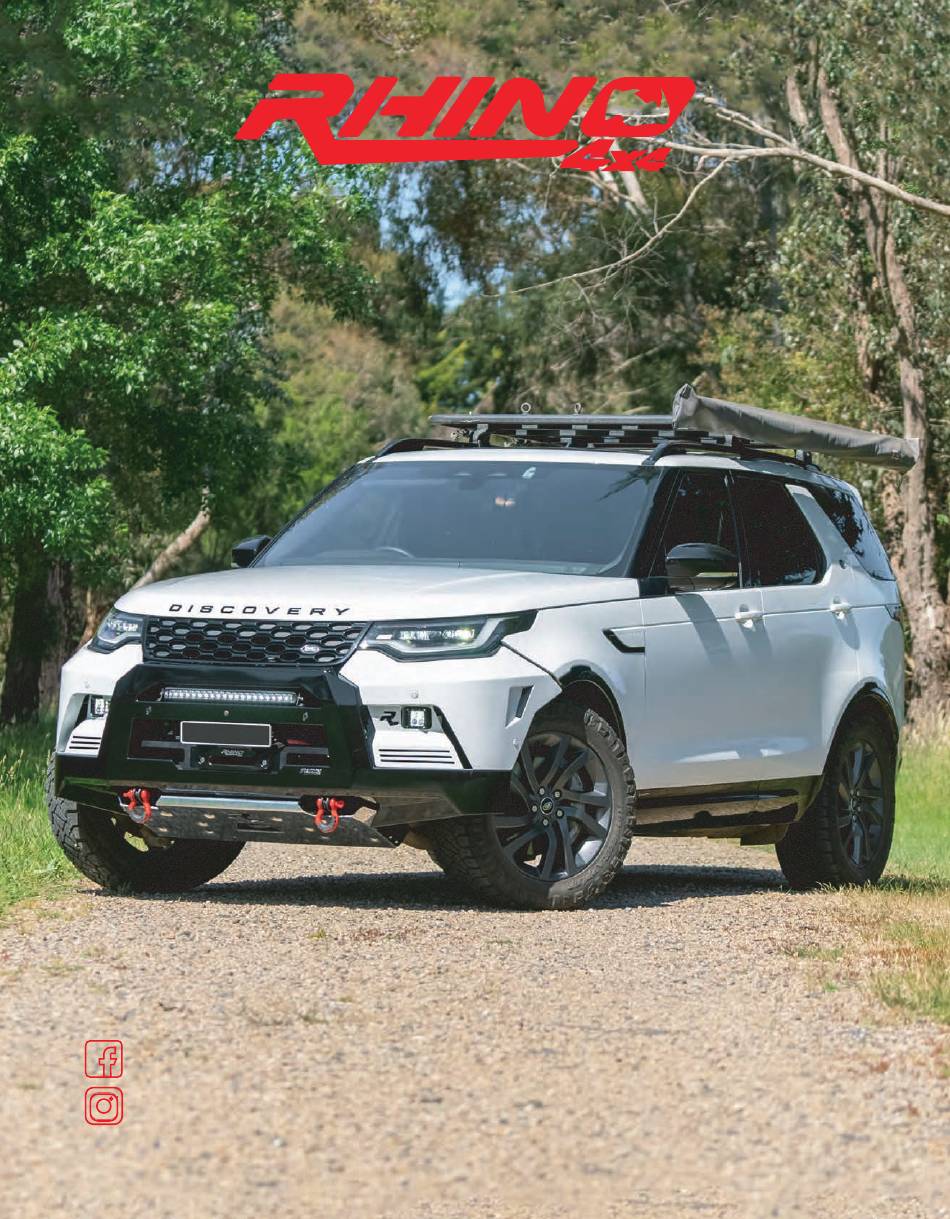

INSTRUCTION MANUAL
D I S C O V E R Y 5
RHINO4X4AUSTRALIA
RHINO4X4
WWW.RHINO4X4.COM.AR

Advertisement

loading
Need help?

Need help?

Do you have a question about the DISCOVERY 5 and is the answer not in the manual?

Questions and answers

Related Manuals for RHINO 4x4 DISCOVERY 5

Summary of Contents for RHINO 4x4 DISCOVERY 5

  • Page 1 INSTRUCTION MANUAL D I S C O V E R Y 5 RHINO4X4AUSTRALIA RHINO4X4 WWW.RHINO4X4.COM.AR...
  • Page 2 WELCOME TO RHINO 4X4! Thank you for choosing our product to equip your vehicle. It offers the following features: Designed for your vehicle, with a unique style that follows the vehicle contours Improved approach angle, recovery points, and better accident protection.

  • Page 3: Spare Parts

    SPARE PARTS REFERENCES 1. Support Radar (1 Unit) 9. Fender (2 Units) 5. Wing Support (2 Units) 2. Winch Cradle (1 Unit) 10. Wing (2 Units) 6. Mid Section (1 Unit) + Grill (1 Unit) 3. Main Chassis Bracket (2 Units) 7.
  • Page 4 KITS PARTS STEP 2 PART MEASURES UNITS Hexagonal Screw M12 x 1.25 x 30 Hex. Washer Screw M10 x 1.50 x 30 Washer 12 mm (12) Washer 10 mm Nut AF 12 x 1.50 Nut AF 10 x 1.00 STEP 3 PART MEASURES UNITS...
  • Page 5 KITS PARTS STEP 5 PART MEASURES UNITS Phillips Parker Screw Tornillo Hex. Arandelado M10 x 1.50 x 30 Tornillo Hex. Arandelado M8 x 1.25 x 20 Washer 12 mm (12) Washer 10 mm Washer 8 mm Washer 6 mm Nut AF 12 x 1.25 Nut AF 10 x 1.50 Nut AF M8 x 1.25 Nut AF M6 x 1.00...
  • Page 6 STEP 1 Disconnect the electrical components (lights, fog lights, PDC, etc.). For later re-installation, be sure to save the components and their wires. Then disassemble the original bumper of the vehicle, as a whole, leaving the chassis visible. It is recommended to keep the original parts of the vehicle under all circumstances. BODY Before starting to assemble our front bar, make sure to align all parts before tightening the screws.
  • Page 7 Build Winch Cradle in the Supports STEP 2 Assemble Main Chassis Bracket on the sides of Winch Cradle, align and tighten them, each screw has a double washer INSTALL THE BRACKETS ON THE CHASSIS, ALIGNING THE PARTS WITH THE BODY, LEAVING A 1.5 - 2 CM GAP AND WITHOUT TIGHTENING THE NUTS COMPLETELY.
  • Page 8 Fit Winch Cradle and Wing Supports in the Chassis STEP 3 INSTALL THE BRACKETS ON THE CHASSIS, ALIGNING THE PARTS WITH THE BODY, LEAVING A 1.5 - 2 CM GAP AND WITHOUT TIGHTENING THE NUTS COMPLETELY. References 1. Winch Cradle (1 Unit) 2.
  • Page 9 Build the Center installing Wings, Grills, Rubber Seal, Electrical STEP 4 installations, sensors, Radar, Lights, etc. Rubber Seal Install light in the Wing ALIGN THE BUMPER PARTS WITH THE BODY LEAVING A 1.5-2 CM GAP References Install Grills in the Mid Section 1.
  • Page 10 Install the Bar (Center) and the Radar STEP 5 Ass e mble the Center in the Winch Cradle together with the Front Support Front Support+Winch Cradle>Hexagonal Screw Center+Front Support>Hex. Washer Screw References 1. Radar Bracket (1 Unit) 2. Radar Cover (1 Unit) 3.
  • Page 11 Assemble Bash Plate and Bash Plate Bracket STEP 6 Fit Bash Plate Bracket to the Chassis of the Vehicle , adjust factory Screw s Adjust Screw Shackle Bolt References 1. Bolt Shackle (2 Units - OPTIONAL PART) 2. Shackle (2 Units - OPTIONAL PART) 3.
  • Page 12 Align parts with the Body and Adjust all Screws...
  • Page 13 WWW.RHINO4X4.COM.AU DISTRIBUTOR Rhino 4x4 Australia 18 Buontempo Road, Carrum Downs, 3201 Victoria 1300 885 841 sales@rhino4x4.com.au RHINO 4X4 - TOUGH NEVER LOOKED SO GOOD...
