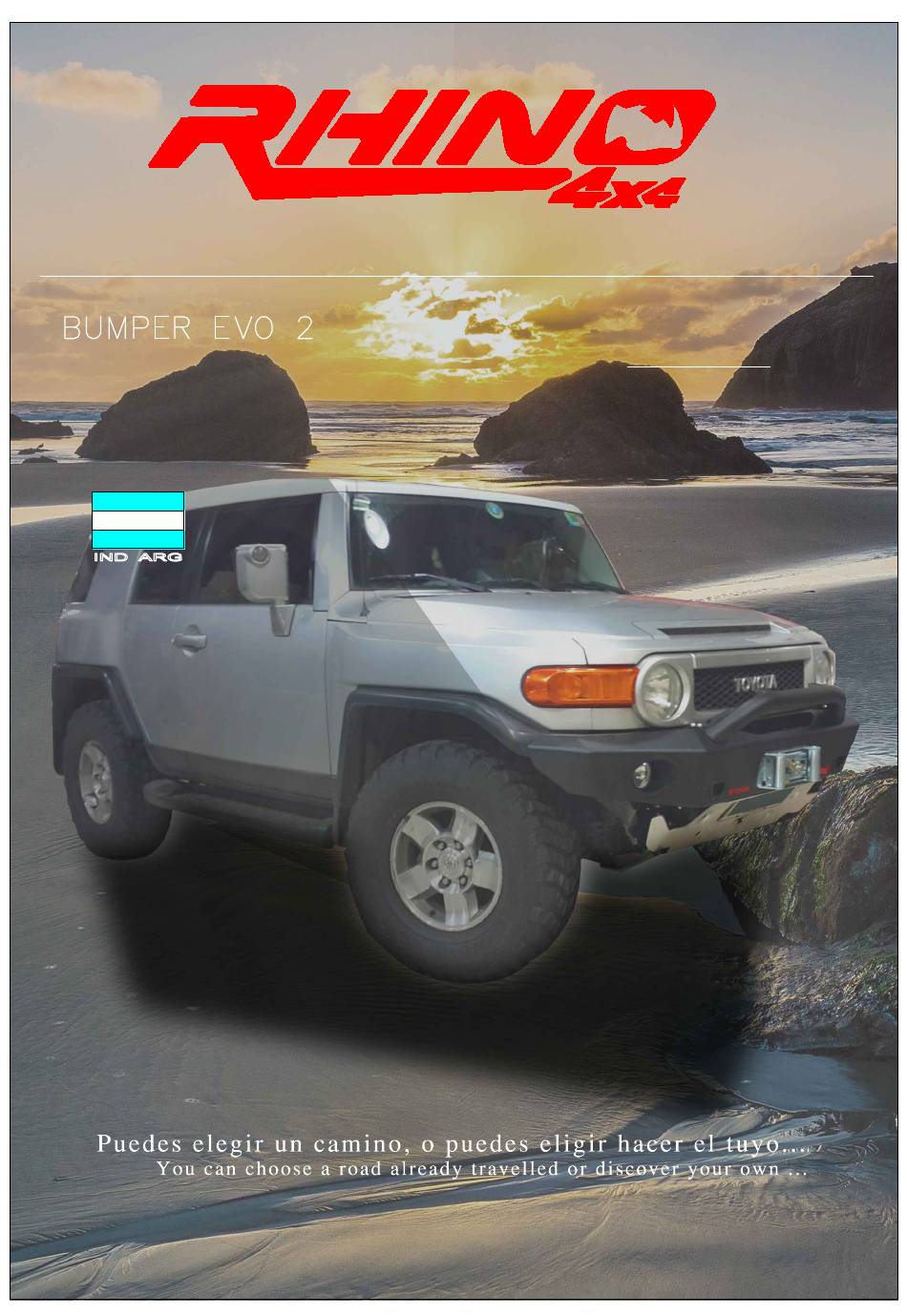

- Page 1 w w w . r h i n o 4 x 4 . c o m . a r TOYOTA FJ CRUISER INSTRUCCIONES DE ARMADO RPDE2-FJ INSTALLATION INSTRUCTION MANUAL RPDE2-FJ I N D U S T R I A A R G E N T I N A...
- Page 3 Before commencing with the installation it is important that you read and understand these installation instructions, if you need any technical advice please contact your closest Rhino 4x4 Dealer WELCOME TO THE RHINO 4X4 TEAM! ESPAÑOL Gracias por elegir equipar su vehiculo con nuestro producto.
- Page 4 BLOQUE I : PREPARAR SOPORTES DEL CHASIS BLOCK I: PREPARE CHASSIS'S BRACKETS PASO 1 STEP 1 Antes de sacar el paragolpes original del vehículo Before you remove the original bumper, you must asegurarse de desconectar los componentes eléctricos disconnect electric components (foglights, parking aids, (faros antiniebla, sensores de estacionamiento, etc) y etc)and keep the wirings to reinstall them later.
- Page 5 STEP 2 PASO 2: Colocar la bandeja sobre el chasis tal como se muestra Install the winch cradle on the chassis's front as shown en el dibujo. Coloque la bandeja con los tornillos in the drawing . Do not secure them. indicados.
- Page 6 STEP 3: PASO 3: Install the side plates. Place it with the provided bolts. Instalar las placas laterales correspondientes. Adjust front bracket's side. Colocarlos con los tornillos provistos. Ajustar KIT FIJACION / FASTENING KIT EX 12 1.50 x 30 Arandela/Washer D13 Tuerca / Nut 13-1.50 PASO 3 / STEP 3...
- Page 7 BLOQUE II : ARMADO DEL BUMPER BLOCK II: BUMPER ASSEMBLY FOG LIGHTS ASSEMBLY ARMADO DE LOS FAROS ANTINIEBLA: Mount fog lights to plastic covers. Check that are Montar los faros antiniebla en los covertores correctly aligned. Then adjust the foglight and mount Verificar que correctamente alineados.
- Page 8 STEP 5: PASO 5: Place the rubber strip on the wing's head lightedge. Colocar el burlete en el borde superior de la puntera. Locate the wing without adjusting the screws. Colocar la puntera sin ajustar los tornillos, posteriormente colocar los aros. BURLETE / RUBBER JOINT KIT FIJACION / FASTENING KIT...
- Page 9 STEP 6: PASO 6: Put the headlight bar on as shown in the drawing. Montar la barra portafaro tal como se muestra en el dibujo. KIT FIJACION / FASTENING KIT AR 8 1.25 x 20 Arandela / Washer D8 Tuerca / Nut 8 - 1.25 PASO 6 / STEP 6...
- Page 10 STEP 7: PASO 7: Mount the front skidplate aligning the holes with Colocar el chapon alineando las perforaciones con los brackets installed. Use the provided bolts. soportes instalados. Usar los tornillos provistos KIT FIJACION / FASTENING KIT AR 10-1.5 x 30 Tornillo Frezado / Countersunk screw 10 1.50 x 30 Planchuela Roscada / Threaded...
- Page 11 TOYOTA FJ CRUISER TERMINADO / FINISH...
- Page 12 LLAVE CON TUERCA/ 12u. TUERCA/ NUT 12-1.5 AR 10-1.5 X 30 WRENCH WITH NUT 10-1.50 10u. AR 8 1.25 x 20 ARANDELA/ WASHER D 10 10u. TUERCA/ NUT 10-1.5 TUERCA/ NUT 8-1.25 EX 12 1.50 x 30 ARANDELA/ WASHER D 8 Tornillo Frezado / Countersunk ARANDELA/ WASHER D 13 12u.
- Page 13 w w w . r h i n o 4 x 4 . c o m . a r MAIN OFFICE: AV. SABATTINI 2053 - CP X5014AUB - CORDOBA - ARGENTINA PHONE NUMBER: +54 0351 4563954 BRANCH OFFICE: AV. COLON 3655 - CP X5003DDH - CORDOBA - ARGENTINA PHONE NUMBER: +54 0351 4880522 "Designed and manufactured in Argentina"...
