HOMCOM 440-017 Assembly & Instruction Manual page 4

1.Lay the trailer on its side with the tow bar at
the top and undo the lock pin from the bracket.
pivot the tow bar all the way forward until the
shaft comes to rest in the front part of the
bracket.
2. Insert the lock pin haft all the way though the
forward holes in the bracket and tow bar.
3.Hook the loop over the end of the shaft and
make sure the pin is secure.

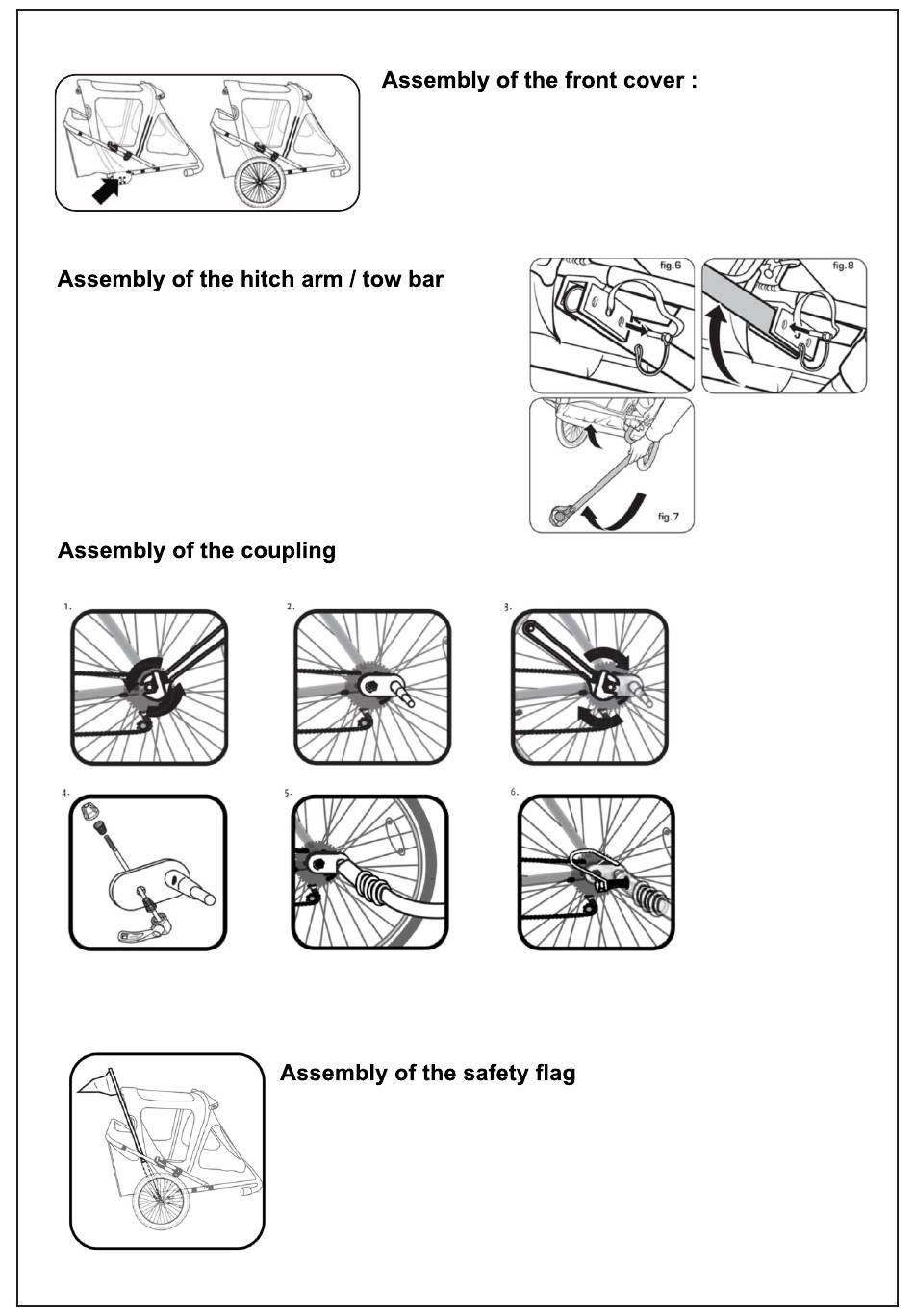

Follow the steps as pictured below:
Attention !
The safety strap must be attached to the bike frame when using this product in trailer
mode.
Lay the front cover upon the bicycle trailer and fasten it
securely by using the attached velcro straps.
Never use the trailer without the front cover.
Tip !
The wheels can be easily attached by laying the bike
trailer on its side.
Connect the flagpole sections together and find the small
opening near the top left edge of the canopy. Slide the end of
the flagpole all the way down through the sleeve near the rear
corner of the right side of the canopy.
