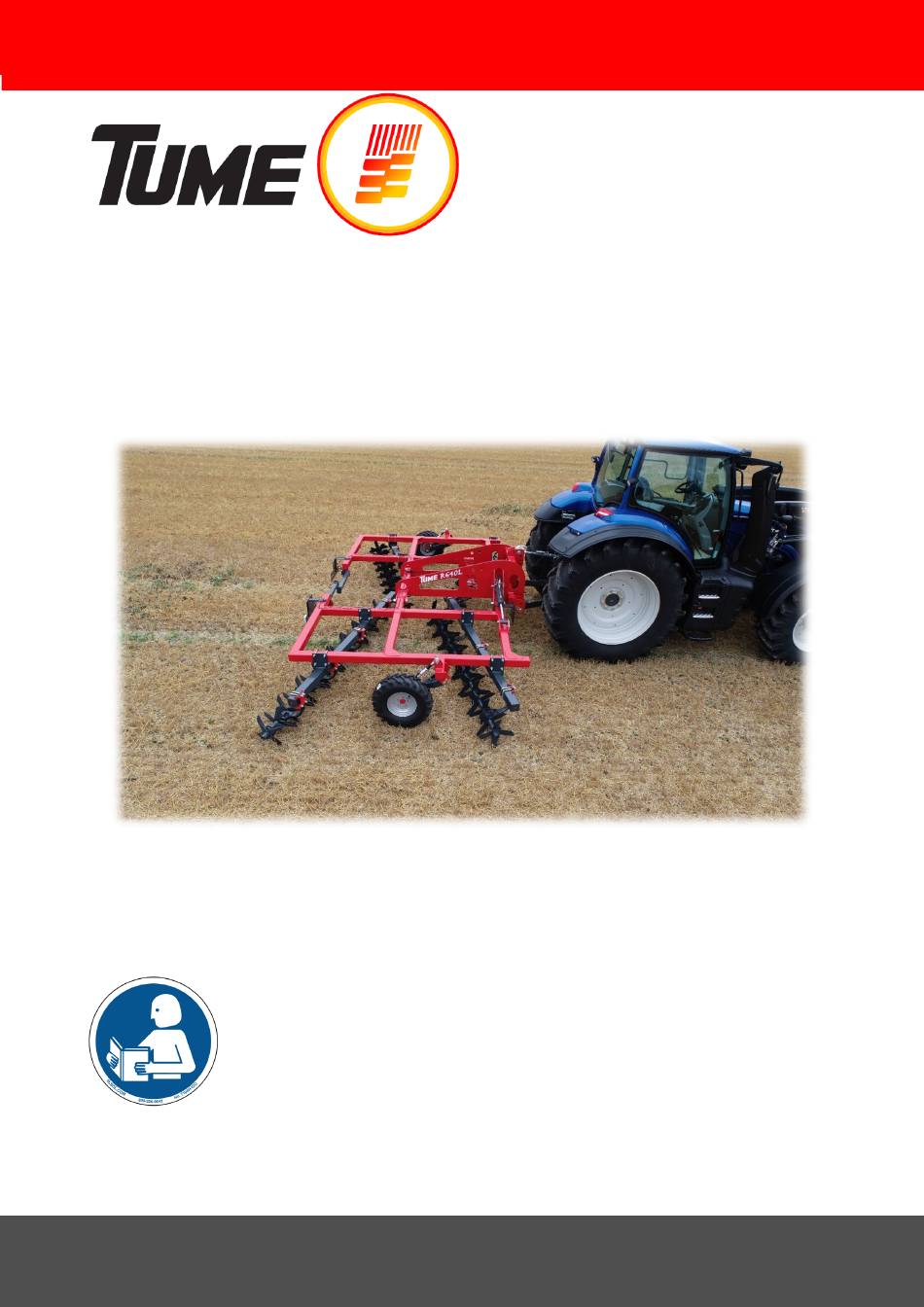

- Page 1 6.10.2021 A USER MANUAL Harrow R640L Showel roller Starting from serial number BA-54215 All rights to structural changes reserved Read the manual before operating the machine! Translation...
- Page 3 Henkilön nimi, joka osoite, joka on valtuutettu kokoamaan teknisen tiedoston: Nimi: Heimo Valli Osoite: Sudenkorventie 1, FI-14200 TURENKI Vakuuttaa, että Lapiorullaäes Harrow R640L Sarjanumero _______________ ovat konedirektiivin (2006/42/EY) asiaankuuluvien säädösten mukaisia • ja lisäksi vakuuttaa, että seuraavia eurooppalaisia yhdenmukaistettuja standardeja on sovellettu •...
-
Page 4: Table Of Contents
CONTENT Connecting the machine to the tractor ..............8 Hydraulic connections ..................9 Light connections ....................9 Driving instructions ....................9 2.4.1 Working depth adjustment................10 2.4.1 Machine folding to transport and work position..........10 2.4.2 Support wheel scrapper adjustment ............... 11 Greasing ...................... - Page 5 1. TO THE MACHINE OPERATOR AND THOSE IN CHARGE OF THE MACHINERY We wish you the best of success with your TUME harrow. Instructions in this manual give guidance for correct use, adjustments, maintenance, and storage of the Tume Harrow R640L. Following the guidance of this manual your machine will serve you impeccably and for a long time to come.
- Page 6 1. GENERAL SAFETY PRECAUTIONS Anyone using, maintaining, or otherwise handling the TUME harrow, must become carefully acquainted with this manual before starting to work. Working or staying under an unsupported raised machine is strictly prohibited. Put the machine down if you have to leave it unattended or when you maintain the machine.
- Page 7 The maximum transport speed in good conditions is 30 km/h. Extreme caution and reduced speed must be used on uneven surfaces. Transfers should preferably be made when containers are empty (optional seeding unit). Load being transported on the machine is prohibited.
-
Page 8: Connecting The Machine To The Tractor
2. MACHINE APPLICATION Tume Harrow R640L is intended for field soil cultivation. It can be used for cultivating after harvesting or already cultivated field. With the additional accessories, the number of features of harrow R640L may be increased, as the combination machine and accessory may do during the same pass. -
Page 9: Hydraulic Connections
Hydraulic connections Harrow R640L needs one double action valve. Down below is show the hydraulic connection: Folding; side frames Double action valve Folding; side frames Side frame folding cylinders have lock valves. IF SIDE FRAMES ARE EQUIPPED ALSO WITH MECHANIC TRANSPORT LOCKS! UNLOCK THE MECHANICS LOCKS BEFORE FOLDING! It should be noted that some tractor types must be used with their own type of hydraulic quick connectors recommended by the manufacturer. -
Page 10: Working Depth Adjustment
2.4.1 Working depth adjustment Working depth is adjusted with the support wheels by adjusting the length of the rigging screw next to the tire. Use tractor lift arms to get machine on level. Check the depth after a short drive and make adjustments if needed. -
Page 11: Support Wheel Scrapper Adjustment
Support wheels are equipped with scrappers. Scrapper function is to keep the support wheel clean from the soil in wet conditions. Adjust scrappers about 5-10 mm distance from the wheel surface. 3. TECHNICAL DATA Type Harrow R640L Working width (m) Weight of basic machine (kg) 1800... -
Page 12: Greasing
4. SERVICE Greasing Grease blade axle bearings daily when using the machine. Press grease to the bearing until the grease comes out from both sides of the bearing. Grease all points after washing. Grease type NLGI 2. Lubricate support wheel rigging screws once per operating season and before storage. 3 pcs 3 pcs 1 pcs... -
Page 13: Replacing The Blades
Replacing the blades Broken blade should be replaced instantly after breaking down. Soil can flow inside the axle from the place the blade is missing and cause damage to the axle or bearing. HEAVY AND SHARP COMPONENTS! RISK OF INJURY! Replacing blade: 1. - Page 14 5. NOTES...
- Page 15 TUME-AGRI OY PL 77 14201 TURENKI FINLAND PUH. 0207 433 060 TEL. (int.) 358-207 433 060 www.tumeagri.fi...
