Elumen8 Virtuoso 1000 Profile HEX User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

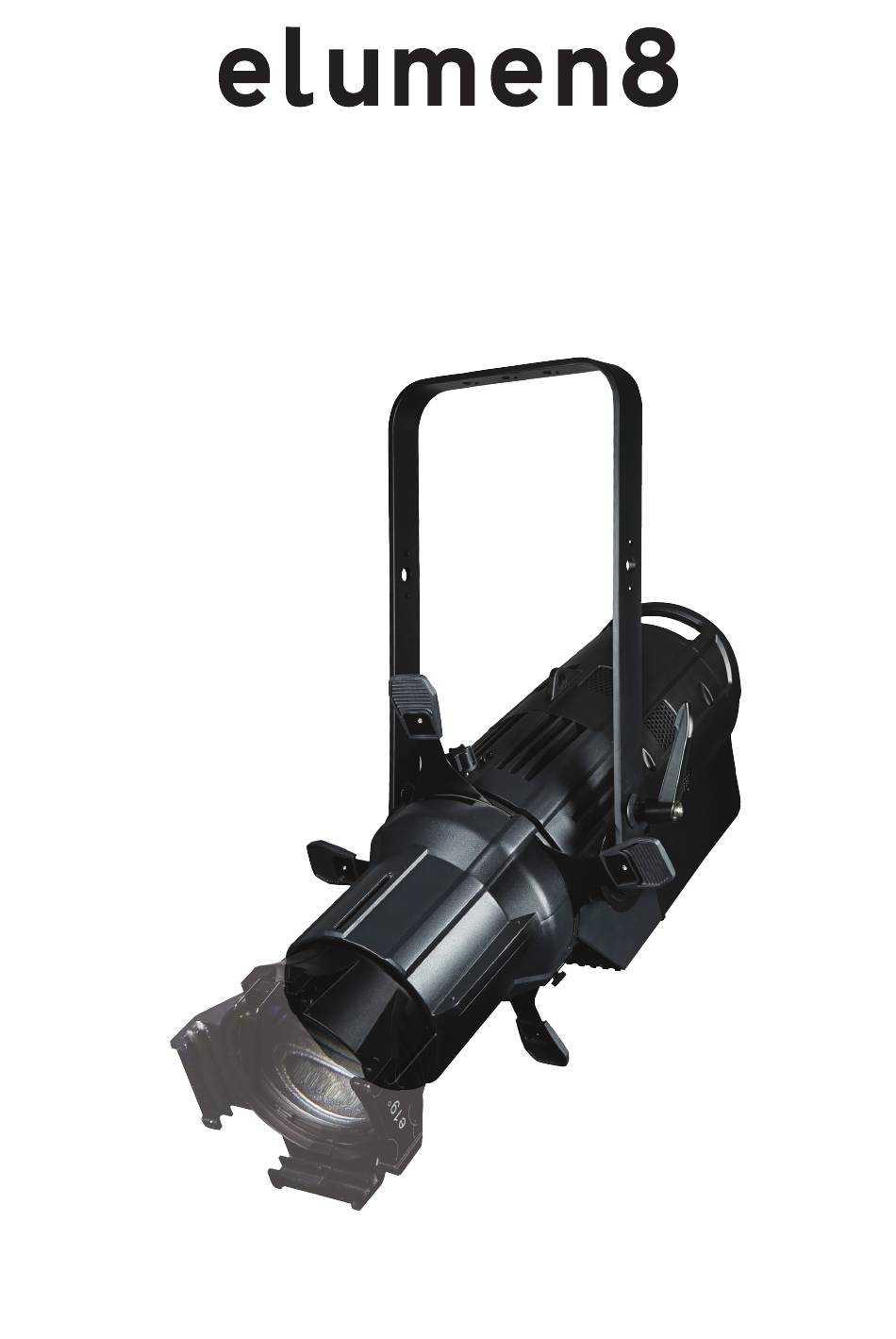

Virtuoso 1000 Profile HEX
User Manual
Order codes: ELUM143

Advertisement

loading
Need help?

Need help?

Do you have a question about the Virtuoso 1000 Profile HEX and is the answer not in the manual?

Questions and answers

Related Manuals for Elumen8 Virtuoso 1000 Profile HEX

Summary of Contents for Elumen8 Virtuoso 1000 Profile HEX

  • Page 1 Virtuoso 1000 Profile HEX User Manual Order codes: ELUM143...
  • Page 2 Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Virtuoso 1000 Profile HEX User Manual...
  • Page 3 • Rear handle • Quick release omega clamp included Specifications Virtuoso 1000 Profile HEX Power consumption 311W Power supply 100~240V, 50/60Hz Fuse T6.3A 250V Dimensions 588 x 390 x 522mm Weight 8.5kg Order code ELUM143 www.prolight.co.uk Virtuoso 1000 Profile HEX User Manual...
  • Page 4 07 - PowerTwist TR1 input 08 - Shutters 09 - Hanging bracket adjustment knob 10 - Carry handle 11 - Hanging bracket In the box: 1 x fixture & 1 x power cable www.prolight.co.uk Virtuoso 1000 Profile HEX User Manual...
  • Page 5 The installation should be checked annually by a qualified person. The eLumen8 Virtuoso 1000 Profile HEX can be operated in a number of mounting positions as shown in the diagram above, hanging upside-down from the ceiling or truss, mounting sideways on truss or stood upright on a flat level surface.
  • Page 6 4. Mount the fixture onto your truss system via the clamps and tighten to ensure secure. 5. Pull the safety cable through the safety cable hole located on the top of the fixture and around the truss. www.prolight.co.uk Virtuoso 1000 Profile HEX User Manual...
  • Page 7 (do not remove the knobs or the barrel assembly). 2. Rotate the barrel into the desired position. 3. Once the barrel is rotated, tighten the barrel rotation knobs. Barrel rotation knob www.prolight.co.uk Virtuoso 1000 Profile HEX User Manual...
  • Page 8 Accessory Slot: The Virtuoso 1000 Profile HEX has an accessory slot, which holds a drop-in iris or a motorised pattern device (sold separately). When the slot is not in use a small metal cover secures the slot with 2 screws to prevent light leakage.
  • Page 9 Shutter adjustment Shutters: The shutters are located inside the barrel. They can be adjusted via the shutter handles to adjust the shape of the beam. Shutters Shutters www.prolight.co.uk Virtuoso 1000 Profile HEX User Manual...
  • Page 10 Control Panel Menu: The LCD control panel situated on the rear of the fixture allows the user to access the menu system to adjust the fixtures settings. When the unit has been powered on the display will show “Elumen8”. MENU ENTER DOWN The fixture will then return to its home screen.
  • Page 11 “DOWN” buttons to select the various colours. Press the “ENTER” button to confirm the setting. PRESET COLOUR COLOUR 1 COLOUR 2 COLOUR 3 COLOUR 4 COLOUR 5 COLOUR 6 COLOUR 7 COLOUR 41 COLOUR 42 COLOUR 43 COLOUR 44 COLOUR 45 COLOUR 46 COLOUR 47 COLOUR 48 www.prolight.co.uk Virtuoso 1000 Profile HEX User Manual...
  • Page 12 “DOWN” buttons to select between “BASIC” (3 channel), “SSP” HSIC (7CH) (8 channel), “TOUR” (13 channel), “TR16” (20 channel), “HSIC” (7 channel) CMY (10CH) or “CMY” (10 channel). Press the “ENTER” button to confirm the setting. www.prolight.co.uk Virtuoso 1000 Profile HEX User Manual...
  • Page 13 Press the “ENTER” button to confirm the setting. EDIT PROGRAM PROGRAM1 SCENE-01 PROGRAM2 SCENE-02 UPLOAD SCENE-10 SCENE EDIT SCENE EDIT GREEN GREEN BLUE BLUE AMBER AMBER LIME LIME CYAN CYAN STROBE STROBE TIME TIME FADE FADE www.prolight.co.uk Virtuoso 1000 Profile HEX User Manual...
  • Page 14 “UP”, “DOWN”, “UP”, “DOWN”, “ENTER”. You can now access the sub menus as described below. MAIN MENU STATIC PRESET COLOUR Pass code: ADDRESS RUN MODE PERSONALITY AUTO PROGRAM EDIT SETTING INFO www.prolight.co.uk Virtuoso 1000 Profile HEX User Manual...
  • Page 15 LAW”, “INV. SQ LAW”, and “S-CURVE”. Press the “ENTER” button to confirm the setting. SETTING DIMMING CURVES RESET LINEAR SQUARE LAW DIMMING SPEED INV. SQ LAW DIMMING CURVES S-CURVE DMX ERROR PERFORM PWM RATE DISP LOCK DISP TIME www.prolight.co.uk Virtuoso 1000 Profile HEX User Manual...
  • Page 16 Press the “ENTER” button and use the “UP” and “DOWN” buttons to select between “LIVE”, “POWER” and “STUDIO”. Press the “ENTER” button to confirm the setting. SETTING PERFORM RESET LIVE DIMMING SPEED POWER DIMMING CURVES STUDIO DMX ERROR PERFORM PWM RATE DISP LOCK DISP TIME www.prolight.co.uk Virtuoso 1000 Profile HEX User Manual...
  • Page 17 “ENTER” button and use the “UP” and “DOWN” buttons to select between “ON”, “10S”, “30S” and “2MIN”. Press the “ENTER” button to confirm the setting. SETTING DISPLAY TIME RESET DIMMING SPEED DIMMING CURVES DMX ERROR 2MIN PERFORM PWM RATE DISP LOCK DISP TIME www.prolight.co.uk Virtuoso 1000 Profile HEX User Manual...
  • Page 18 “ENTER” button and the fixtures RDM UID will be displayed. If LABEL is highlighted press the “ENTER” button and the model number will be displayed. INFO VERSION VERSION Vx.x.x xxxx-xx-xx INFO VERSION LABEL 0x09A5xxxxxxxx LABEL Virtuoso LABEL 1000P-6C www.prolight.co.uk Virtuoso 1000 Profile HEX User Manual...
  • Page 19 Colour 15 L513 Ice And A Slice 081-085 Colour 16 L100 Spring Yellow 086-090 Colour 17 L244 LEE Plus Green 091-095 Colour 18 R4430 CalColor 30 Green 096-100 Colour 19 L122 Fern Green 101-105 www.prolight.co.uk Virtuoso 1000 Profile HEX User Manual...
  • Page 20 Special Rose Pink 226-230 Colour 45 L790 Moroccan Pink 231-235 Colour 46 L157 Pink 236-240 Colour 47 R332 Cherry Rose 241-245 Colour 48 L128 Cool LED Bright Pink 246-250 Blackout No Function Blackout 251-255 www.prolight.co.uk Virtuoso 1000 Profile HEX User Manual...
  • Page 21 3000K 100-109 No function 070-084 3200K 110-179 Lightning strobe 085-099 4000K 180-189 No function 100-255 4500K 190-255 Random strobe 115-009 5000K 130-080 5600K 145-160 6000K 160-240 6500K 175-255 7000K 190-255 8000K 205-255 10000K www.prolight.co.uk Virtuoso 1000 Profile HEX User Manual...
  • Page 22 25000Hz 190-255 8000K 211-230 No function 205-255 10000K 231-240 All reset STROBE 241-255 No function 000-009 No function 010-099 Strobe (slow-fast) 100-109 No function 110-179 Lightning strobe 180-189 No function 190-255 Random strobe www.prolight.co.uk Virtuoso 1000 Profile HEX User Manual...
  • Page 23 All reset 041-050 Auto1 241-255 No function 051-060 Auto2 061-070 Auto3 071-080 Auto4 081-090 Auto5 CH10 091-100 Auto6 101-110 Auto7 111-120 Auto8 121-130 Auto9 131-140 Auto10 141-150 Custom1 151-160 Custom2 161-255 No function www.prolight.co.uk Virtuoso 1000 Profile HEX User Manual...
  • Page 24 Auto2 211-230 No function 061-070 Auto3 231-240 All reset 071-080 Auto4 241-255 No function 081-090 Auto5 091-100 Auto6 101-110 Auto7 111-120 Auto8 121-130 Auto9 131-140 Auto10 141-150 Custom1 151-160 Custom2 161-255 No function www.prolight.co.uk Virtuoso 1000 Profile HEX User Manual...
  • Page 25 8000K 191-190 4000Hz 205-255 10000K 191-200 6000Hz AUTO 201-210 25000Hz 000-040 No function 211-230 No function 041-050 Auto1 231-240 All reset CH17 051-060 Auto2 241-255 No function 061-070 Auto3 071-080 Auto4 081-090 Auto5 www.prolight.co.uk Virtuoso 1000 Profile HEX User Manual...
  • Page 26 3-Pin: CABL10 – 2m CABL11 – 5m CABL12 – 10m 5-Pin: CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Virtuoso 1000 Profile HEX User Manual...
  • Page 27 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Virtuoso 1000 Profile HEX User Manual...
  • Page 28 Please note: Caution should be used when power linking other fixtures to the Virtuoso 1000 Profile as the power consumption of other fixtures will vary. Fixtures fitted with lamps often require 2/3 times more current on startup, these may require their own power source. www.prolight.co.uk Virtuoso 1000 Profile HEX User Manual...
  • Page 29 Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Virtuoso 1000 Profile HEX User Manual...
