INSTRUCTION MANUAL

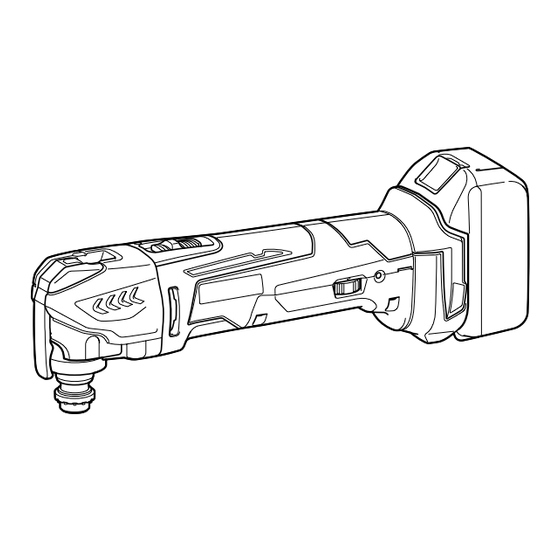

Cordless Multi Tool
DTM41
DTM51
014551
IMPORTANT: Read Before Using.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTM51ZX5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Makita DTM51ZX5

  • Page 1 INSTRUCTION MANUAL Cordless Multi Tool DTM41 DTM51 014551 IMPORTANT: Read Before Using.
  • Page 2: Specifications

    ENGLISH (Original instructions) SPECIFICATIONS Model DTM41 DTM51 Oscillation per minute 6,000 - 20,000 (min Oscillation angle, left/right (3.2 total) BL1830 / BL1830B / BL1430 / BL1430B / BL1415* / BL1840 / BL1840B / BL1815* / BL1815N* / Standard battery cartridge BL1440 / BL1450 / BL1415N* BL1850 / BL1850B /...
  • Page 3: Ec Declaration Of Conformity

    Uncertainty (K) : 1.5 m/s For European countries only Model DTM41 EC Declaration of Conformity Makita declares that the following Machine(s): Work mode : cutting with plunge cut saw blade Designation of Machine: Vibration emission (a ) : 7.0 m/s Cordless Multi Tool Uncertainty (K) : 1.5 m/s...
  • Page 4: General Power Tool Safety Warnings

    The technical file in accordance with 2006/42/EC is When operating a power tool outdoors, use an available from: extension cord suitable for outdoor use. Use Makita, Jan-Baptist Vinkstraat 2, 3070, Belgium of a cord suitable for outdoor use reduces the risk of electric shock. 18.7.2013...
  • Page 5 20. Store idle power tools out of the reach of safety warnings, instructions, illustrations and children and do not allow persons unfamiliar specifications provided with this power tool. with the power tool or these instructions to Failure to follow all instructions listed below may operate the power tool.
  • Page 6 20. Wear personal protective equipment. Depending Do not disassemble battery cartridge. on application, use face shield, safety goggles or If operating time has become excessively safety glasses. As appropriate, wear hearing shorter, stop operating immediately. It may protectors, gloves and workshop apron capable result in a risk of overheating, possible burns stopping small...
  • Page 7: Functional Description

    Battery protection system FUNCTIONAL DESCRIPTION (Lithium-ion battery with star marking) WARNING: 1. Star marking Always be sure that the tool is switched off • and battery cartridge is removed before adjusting or checking function on the tool. Failure to switch off and remove the battery cartridge may result in serious personal injury from accidental start-up.
  • Page 8: Indication Lamp

    higher the number is, the higher the orbital stroke rate is. Indicator lamps Preset the dial to the number suitable for your workpiece. Remaining capacity Lighted Blinking NOTE: 75% to 100% The dial cannot be turned directly from 1 to 6 or •...
  • Page 9: Operation

    Open the lock lever fully. And remove the holder bolt. 1. Adapter 1. Holder bolt 2. Lock lever 014554 When using application tools with a different type of 014555 Put an application tool (optional accessory) on installation section, use a correct adapter (optional the tool flange so that the protrusions of the tool accessory).
  • Page 10 Sanding Dust extraction attachment (optional accessory) CAUTION: Do not reuse a sanding paper used for sanding • metal to sand wood. Do not use a worn sanding paper or sanding • paper without grit. 014560 Apply a sanding paper on the workpiece. NOTE: Using test...
  • Page 11: Maintenance

    Only use accessory or attachment for its stated purpose. If you need any assistance for more details regarding these accessories, ask your local Makita Service Center. Segment saw blade • Round saw blade • Plunge cut saw blade •...
