Page 1

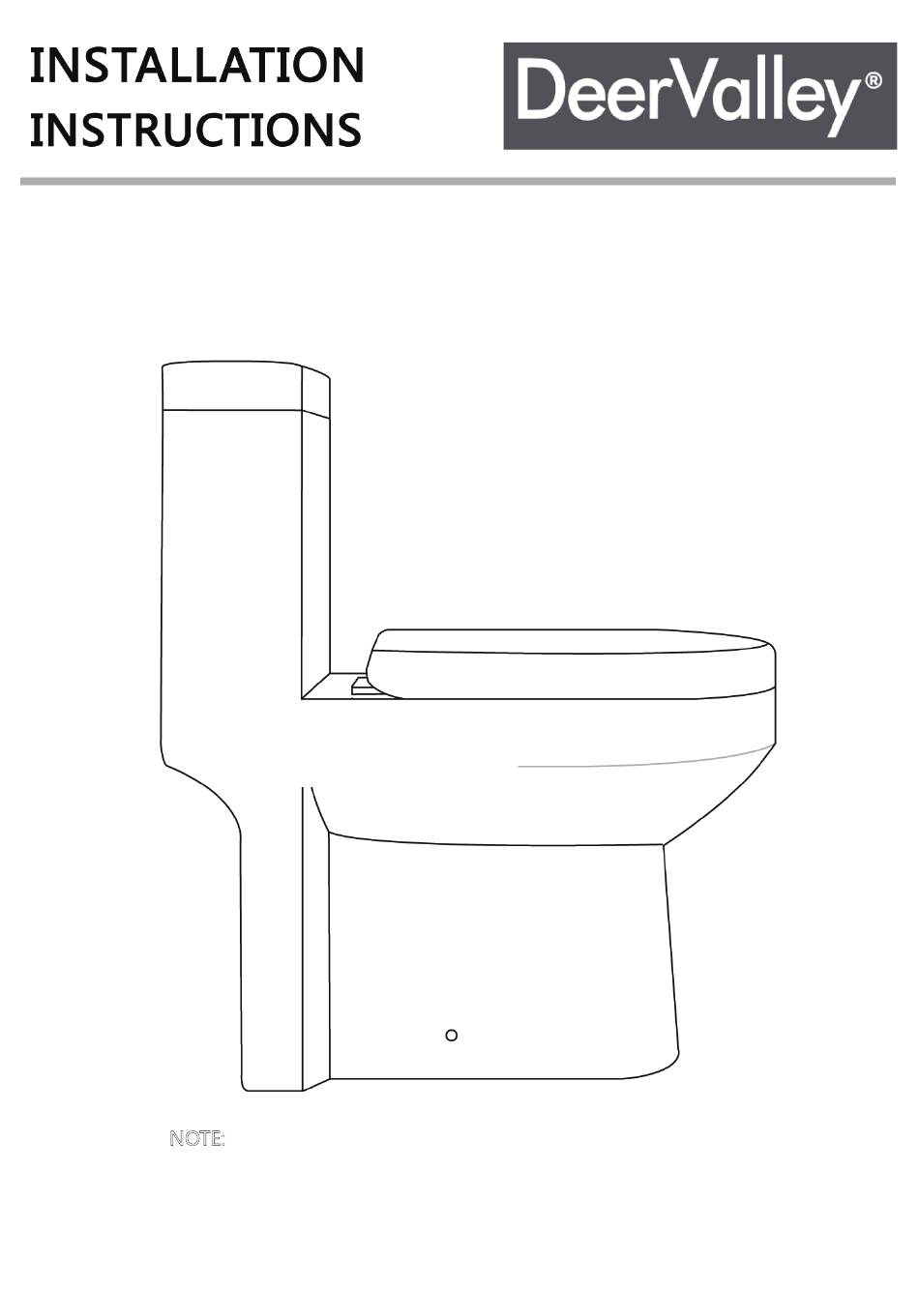

One-Piece Toilet NOTE: Drawings may not exactly define contour of the product.
Page 3
The step-by-step guidelines in the installation instructions are a general reference for installing a DeerValley One-Piece Toilet. Should there be any discrepancies, DeerValley cannot be held liable. It is recommended to install all DeerValley Products by hiring a licensed professional.
Page 4
1. Remove Old Toilet Turn off the water supply. Flush the toilet to empty the tank. Remove any water left in the tank or bowl. Disconnect the supply line from the tank. Remove decorative caps. Unscrew nuts that attach the toilet to the floor. Remove toilet.
Page 5
2. Install the Floor Bolts and L-bar 3. Install Wax Ring Install the floor screws to the toilet flange to Install the wax ring and adjust the L-bar and adjust to the proper position. Please note that fasten it. Please make sure the L-bar in a the two screws and the center of the flange straight line.
Page 6
6. Toilet Seat Installation DV-F816S01 Toilet Seat Installation Package (1) Accessories (3) Adjust the Seat Position Unwrap the toilet seat installation package. Plug the toilet seat in and adjust the position properly. (2) Install Accessories (4) Install the Seat Install the seat cover cap and hinge, then Confirm the position of the toilet seat and fasten the screws slightly and adjust the take it out, fasten the screws and put the...
Page 7
DV-F812S01 Toilet Seat Installation Package (1) Accessories (3) Adjust the Seat Position Unwrap the toilet seat installation package. Plug the toilet seat in and adjust the position properly. (2) Install Accessories (4) Install the Seat Install the toilet seat white base, then fasten Confirm the position of the toilet seat and the screws slightly and install the toilet seat.
