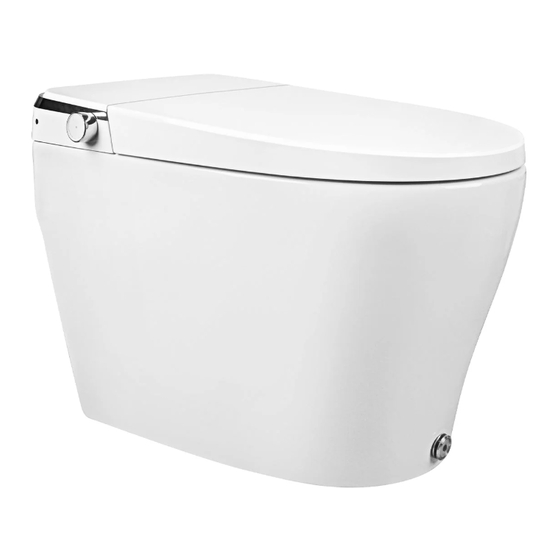

- Page 1 Installation and Owner’s Manual Smart Toilet (DV-1S0029) NOTE: Drawings may not exactly define contour of the product. www.deervalleybath.com | (+1) 312-626-9466 | service@ deervalleybath.com...
- Page 2 (+1) 312-626-9466 service@deervalleybath.com...
-
Page 3: Table Of Contents
Important Safe Guards Explanation of Terms and Symbols WARNING & Attention Product Installation Tools needed Parts included Parts Diagram Smart Toilet overall view Remote Control Precautions before Installation Installation The Smart Toilet Install the Remote Control Install the Remote Control Test before Use Remote Control Operation Knob and Other Operation... -
Page 4: Important Safeguards
Grounding pin *WARNING: Risk of electric shock Connect only to a circuit AA200 that is protected by a ground-fault circuit-interrupter (GFCI). NOTE: Specialized tools may be necessary to install DeerValley Smart Toilet, plumbing not included. (+1) 312-626-9466 www.deervalleybath.com... -
Page 5: Explanation Of Terms And Symbols
Installation and Owner’s Manual 2. Explanation of Terms and Symbols Thank you for purchasing our product. Please read this User Manual before installation and use and save it for future reference. The hazards and warnings listed herein are important to our users' safety. Significant consequences may result from failure to heed warnings. -
Page 6: Warning & Attention
Installation and Owner’s Manual 3. WARNING & Attention WARNING This product needs to be properly grounded. Risk of electric shock. If unsure, contact an electrician. Do not place a lit cigarette along with other burning objects into the unit. Risk of fire. Do not touch, insert or pull out the power plug with a wet hand. - Page 7 Installation and Owner’s Manual WARNING Regularly unplug the unit from power and wipe off any dust on the plug using a dry cloth. Risk of fire. Young children, the aged and the physically disabled should be given supervision by a person responsible for their safety while using the unit. Otherwise, prolonged use may cause low temperature burns.
- Page 8 Installation and Owner’s Manual WARNING Do not disassemble, repair or alter this product on your own. Call in a professional or contact HuiDa for future advise. Risk of fire, electric shock, and/or other accident that may lead to injury. Do not use industrial or polluted water. Risk of cystitis, dermatitis and electric shock and fire due to internal corrosion of the unit.
- Page 9 Installation and Owner’s Manual BATTERY WARNING Read the following for proper battery usage: ●Properly install the battery according to its correct polarity. ●Remove the battery during long periods without use. ●Replace the battery before it reaches the end of its usage. Failure to do so may result in interrupted signals.
- Page 10 Installation and Owner’s Manual ATTENTION To avoid danger from false reset of the thermal breaker, do not supply power through an external switching device, such as a timer, or connect to a circuit that is periodically turned on and off by a general-purpose component.
- Page 11 Installation and Owner’s Manual ATTENTION Unplug the unit when the product is in disuse for a long time. Make sure to shut off the water supply and drain the water inside the product. Risk of fire, leakage and product damage. Do not use old hose to connect to unit.
-
Page 12: Product Installation
Installation and Owner’s Manual 4. Product Installation (1) Tools needed Drill(with 6mm Bit) Raw Tape Utility Knife Marker 23-26mm(Adjustable Wrench) Screwdriver Tape Measure Measuring Cup (2) Parts included Smart Toilet T-Valve Wax Ring Remote Control assembly Operating instruction Connector and other prints Floor Bolts Please confirm that all articles in the package are complete. -
Page 13: Parts Diagram
Installation and Owner’s Manual 3. Parts Diagram (1) Smart toilet overall view Safety Instruction Cover Power Plug Dryer Nozzle Knob (Rear Wash and Front Wash) Heated Seat Toilet Water Supply Hose Seat Sensor Feminine Tee valve Toilet Water Supply Angle Valve Foot Touch Intelligent Toilet Water Supply Hose... -
Page 14: Remote Control
Installation and Owner’s Manual (2) Remote Control Night Light Hot/Cold Alternate wash with On/off of night light hot and cold water Nozzle Clean Key for nozzle clean Feminine Feminine Used for wash of Dryer female's Dry washed part with warm air Flush Flush after use Water Temp. -
Page 15: Precautions Before Installation
Installation and Owner’s Manual (3) Precautions before Installation Water Pressure Requirements The minimum dynamic operating water pressure is 25 Psi, and the maximum static water pressure is 80 Psi. 15.78 18.54 26.88 NOTE: Drawings may not exactly define contour of the product. (+1) 312-626-9466 -13- www.deervalleybath.com... -
Page 16: Installation The Smart Toilet
Installation and Owner’s Manual 4. Installation The Smart Toilet (1) Draw a cross marker on the drain outlet on the ground. Clean the floor and wipe off any excess dust or dirt . Failure to install on an cleaned surface will affect the quality of installation. - Page 17 Installation and Owner’s Manual (4) Install the wax ring and brass floor bolts onto floor flange. Center and press the wax ring on the floor flange. Insert the 2 brass floor bolts flat head thru the appropriate slot in the floor flange. Use the provided plastic floor bolt washer to secure the floor bolts on the floor flange.

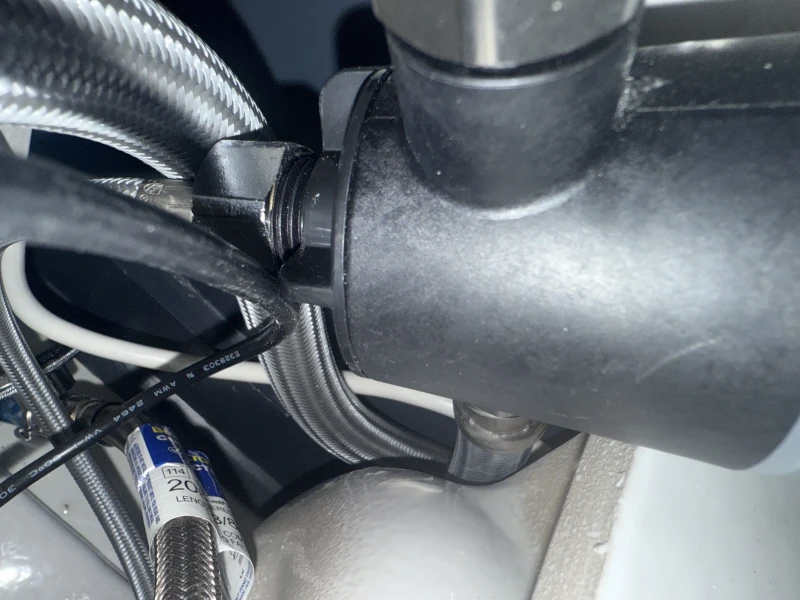

- Page 18 Installation and Owner’s Manual (7) Conncting the tee valve to shut off valve and connecting braided water supply hoses. With the 3/8" male connection facing to the right, apply Telflon tape and screw on adapter (supplied). FIGURE 9B FIGURE 9A Connect tee valve to male thread on adapter (apply Telflon tape to male threads).
- Page 19 Installation and Owner’s Manual (9) Connect the power supply. Connect the ground wire. Power plug into the AC 120V socket. Confirm whether the power is connected. Note: Confirm indicator light on the power plug. A lit-up power indicator light will confirm that the smart toilet is powered-on. When powered on, press and hold the knob for 3 seconds to enter standby mode.
-
Page 20: Install The Remote Control
Installation and Owner’s Manual 5. Install the Remote Control (1) Install the Remote Control 1. According to the location of the screw holes of the remote control holder, drill two holes with a 6mm-diameter drill.bit on the wall with a depth greater than 45mm. 2. - Page 21 Installation and Owner’s Manual (2) Test before use Test run (test all function buttons on the remote control and the knob on toilet body.) ● Is each function of the product normal? Are the rear wash and front wash (including spray strength adjust ment, nozzle position adjustment), dryer, air temperature, water temperature and seat temperature, nozzle clean working normally? Seat sensor point...
-
Page 22: Remote Control Operation
Installation and Owner’s Manual 6. Remote Control Operation The product has a built-in sensor in the seat. If user is not seated properly, the rear wash, front wash and dryer functions cannot be operated. Feminine Press "Feminine " key. Water flow for wash is jetted out of the front end of the nozzle, and the private part of female is washed by way of wash in move- ment. - Page 23 Installation and Owner’s Manual Hot/Cold Press "Hot/Cold" key, and Hot/Cold function will be enabled or disabled. In wash mode, press Hot/Cold key to realize cold and warm water wash alternately. This function can only be used in wash mode. Feminine Dryer Press "Dryer"...
- Page 24 Installation and Owner’s Manual 《 Water Temp. Press "Water Temp." key to adjust water temperature for wash. Current temperature level will be dis- played when the key is pressed for the first time. When it is pressed again, tem- perature level will be switched, and Feminine proper temperature can be set.
- Page 25 Installation and Owner’s Manual 《 Nozzle Clean Press "Nozzle Clean" key. ●The cleaner sticks out for manual wash. This function can only be used when the human body or other objects do not contact Feminine the seat ring sensing area. ●When the human body is sitting in place, press “Nozzle Clean key”...
-
Page 26: Knob And Other Operation
Installation and Owner’s Manual 7. Knob and other operation Posterior Feminine Powered on and seated, with front wash, Powered on and seated, with front wash, reash wash and dryer functions off. reash wash and dryer functions off. Turn the knob counterclockwise for auto front Turn the knob clockwise for auto rear wash wash with default oscillating function.The with default oscillating function.The entire... - Page 27 Installation and Owner’s Manual Deodorization The function will operate automatically. Deodorizing fan automatically turns on after seating and turns off 3 minutes after leaving the seat. Auto flush Human body leaves the seat sensor area after seating. When the human body leaves the seat after seating, it will automatically flush once.
-
Page 28: Battery Backup Installation
Installation and Owner’s Manual 8. Battery Backup Installation Reach into the bottom of the toilet lid and lift the lid upward ; Remove the battery cover by unscrewing it with a Phillips screwdriver; insert the battery (9V battery), cover the battery cover and tighten it with a screwdriver; Place the toilet cover flat and press down to fix the toilet cover. -
Page 29: Specifications
Installation and Owner’s Manual 9. Specifications (1) Product specifications Power rating 110V~120V Frequency 60Hz Rated power input 1050W(When inlet water temp in 15℃) Seat and dryer temperature range 39.4 °F~104 °F Source water temperature range 39.4 °F~95 °F Water supply type DN15(G1/2") Minimum pressure 25psi , ensuring a flow of water at least 18L/min... - Page 30 Installation and Owner’s Manual (2) Function Table Function Category Posterior (Rear cleaning) Feminine (Front cleaning) Instant heating Oscillating cleaning Cleansing Hot & cold massage cleaning Water pressure adjustment Water temperature adjustment Nozzle position adjustment Self-cleaning nozzle Antibacterial nozzle & seat cover Instant heating Seat heating Seat ring temperature adjustment...
- Page 31 Installation and Owner’s Manual (3) Regular maintenance Regular maintenance is required to ensure normal use Cut off the power and water supply before maintenance. Direct water wash to the entire product is prohibited. WARNING Do not spray water or Maintenance during Winter Season During detergents on the toilet, winter season, the water inside may freeze remote control orthe power...
- Page 32 Installation and Owner’s Manual (4) Problems & Solutions Problems Problems Check whether or not the Tee valve is blocked The cleansing is always leaking NOTE: Drawings may not exactly define contour of the product. (+1) 312-626-9466 -30- www.deervalleybath.com...
- Page 33 Installation and Owner’s Manual Problems Problems Problems Problems Problems NOTE: Drawings may not exactly define contour of the product. (+1) 312-626-9466 -31- www.deervalleybath.com...
- Page 34 DeerValley is not responsible for DeerValley will not be liable for loss of use of the any removal or installation cost. DeerValley inconvenience, or any other incidental or consequential costs, expense or damages.
