Valcom VIP-4122-A12 Manual page 3

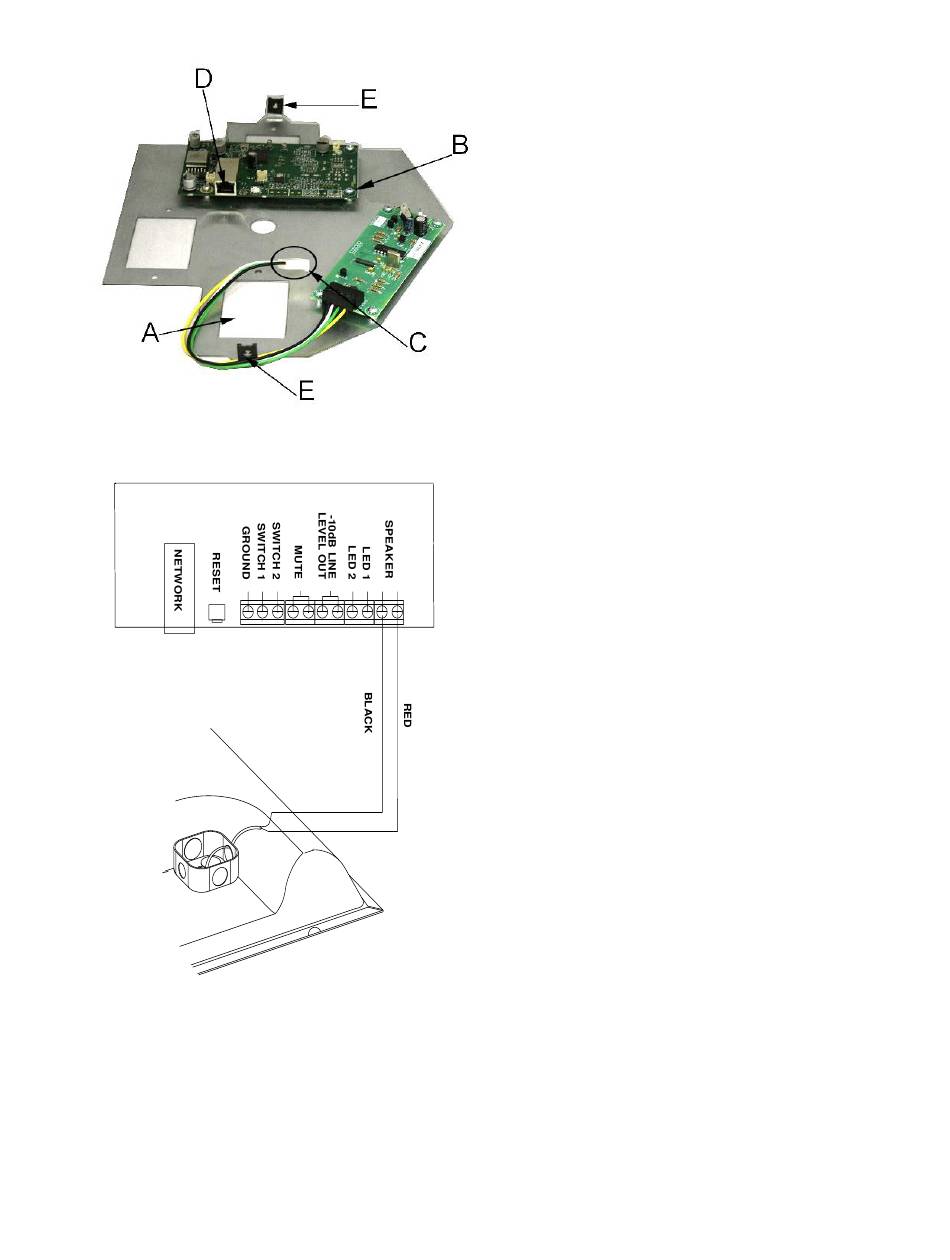

Figure 3. Mounting/Connections
Figure 4. IP Clock/Speaker Connections
Network Connection
The VIP-4122-A12 has one RJ-45 network
connector on the clock circuit board (D) in Figure 3.
Connect a standard Ethernet patch cable from the
VIP-4122-A12 into an Ethernet switch. If a PoE
switch is not available, a PoE mid-span injector may
be used to supply power to the clock and speaker.
+ -
- +
3
Call Switch Connection
For IP Speakers using Talkback functionality, a call
switch input via screw terminals is provided.
Connect a momentary contact switch to Switch 1
and Ground.
-10 dB Line Level Out Connection
The -10dBm Line Level Out may be connected to
up to 40 Valcom Self Amplified Speakers to provide
additional sound reinforcement in an area
LED 1 and LED 2 Connection
LED 1 (+) and LED 2 (-) is a current limited output
designed to illuminate an optional LED. The LED is
intended to provide visual indication of call
progress. The LED illumination will flash when the
call switch is pressed and will continue to flash until
the call is answered. The LED illumination will be
solid when a connection to the unit is established.
SETUP
The VIP-4122-A12 is programmed at the factory to
acquire an IP address using Dynamic Host
Configuration Protocol (DHCP). If DHCP is not
available, it will revert to the IP address of
192.168.6.207 after 3 minutes.
In addition to the IP address, the clock will also try
to acquire all the information needed to synchronize
time from the DHCP Scope. If the DHCP Scope
Options noted below are correctly configured, the
clock will be able to acquire the correct time without
further programming.
•
Option 42, NTP Server IP Address.
•
Option 100, POSIX Time Zone, example:
"EST5EDT4,M3.2.0/02:00,M11.1.0/2:00".
This is the preferred option and works for
any area of the world.
•
Option 101, Time Zone Name, example:
"America/New_York". This option is only
supported for North America time zones.
Each of these options from the DHCP scope can be
overridden by manually programming the desired
value using the Valcom VIP-102B IP Solutions
Setup Tool. If not using DHCP for IP address
assignment, all the Time settings will be configured
using the Setup Tool.
Download the latest version of the free IP Solutions
Setup Tool from the Valcom web site at
www.valcom.com/vipsetuptool
TECHNICAL ASSISTANCE
When trouble is reported, verify power is being
supplied to the unit and there are no broken
connections. If a spare unit is available, substitute a
spare unit for the suspected defective unit.
.
