- Page 1 S-22RUB STEREO AMPLIFIER INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. -
Page 4: Controls And Functions Front Panel

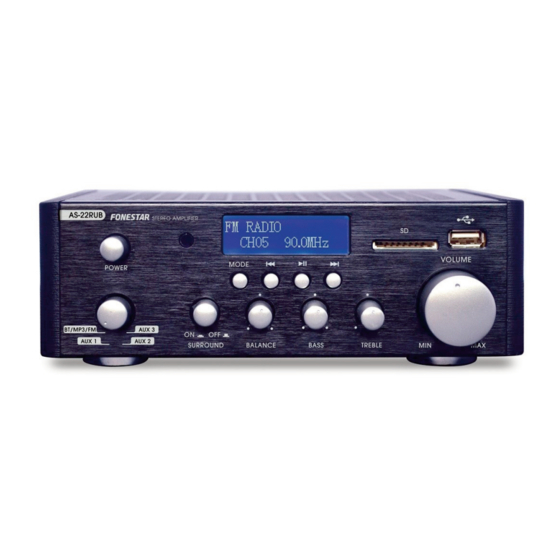

DESCRIPTION The model AS-22RUB is a stereo amplifier 16 + 16 W RMS at 4 Ω with great sound quality and optimum performance. Specially suitable for domestic use. It incorporates an MP3 file player which accepts the connection of USB storage devices and SD memory cards. -
Page 5: Rear Panel
REAR PANEL 14.- Radio and bluetooth aerial. 15.- INPUT AUX 1/AUX 2/AUX 3: aux signal inputs, 2 x RCA connectors. 16.- SPEAKER SURROUND OUTPUT: surround speaker signal output, 2 x RCA connectors. 2 low impedance (8 Ω recommended) can be connected on the rear part to achieve a spatial effect. To activate this output, you must press the SURROUND switch located on the front of the amplifier. -
Page 6: Remote Control
(random playback), REPEAT ALL (repeat all) and REPEAT FOLDER (repeat folders). BLUETOOTH RECEIVER - This model AS-22RUB allows playback of MP3 files contained in your mobile phone if it is paired with the bluetooth receiver module of this amplifier. - In order to pair your mobile phone with the bluetooth receiver, place the input signal selector on the front panel in the BT/MP3/FM position and choose the Bluetooth option with the MODE button located on the front panel of the amplifier or on the remote control. - Page 7 16 + 16 W RMS at 4 Ω 12 +12 W RMS at 8 Ω - Connect the amplifier mod. AS-22RUB to the power supply. - Once the connections have been made according to your needs, connect the devices to the power supply and switch them on.
-
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS AS-22RUB CHARACTERISTICS Hi-Fi stereo amplifier. Bluetooth 4.0 receiver. Plays music from smartphones, tablets and other bluetooth devices. USB/SD MP3 file player with ID3 tag support. FM radio. Bass, treble and balance control. LCD display. MP3 player remote control. -
Page 9: Warranty
2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it. To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no corrections or crossing out. - Page 10 - 10 -...
- Page 11 - 11 -...
- Page 12 www.fonestar.com...
