FONESTAR AS-160WRUB Instruction Manual

FONESTAR AS-160WRUB Instruction Manual

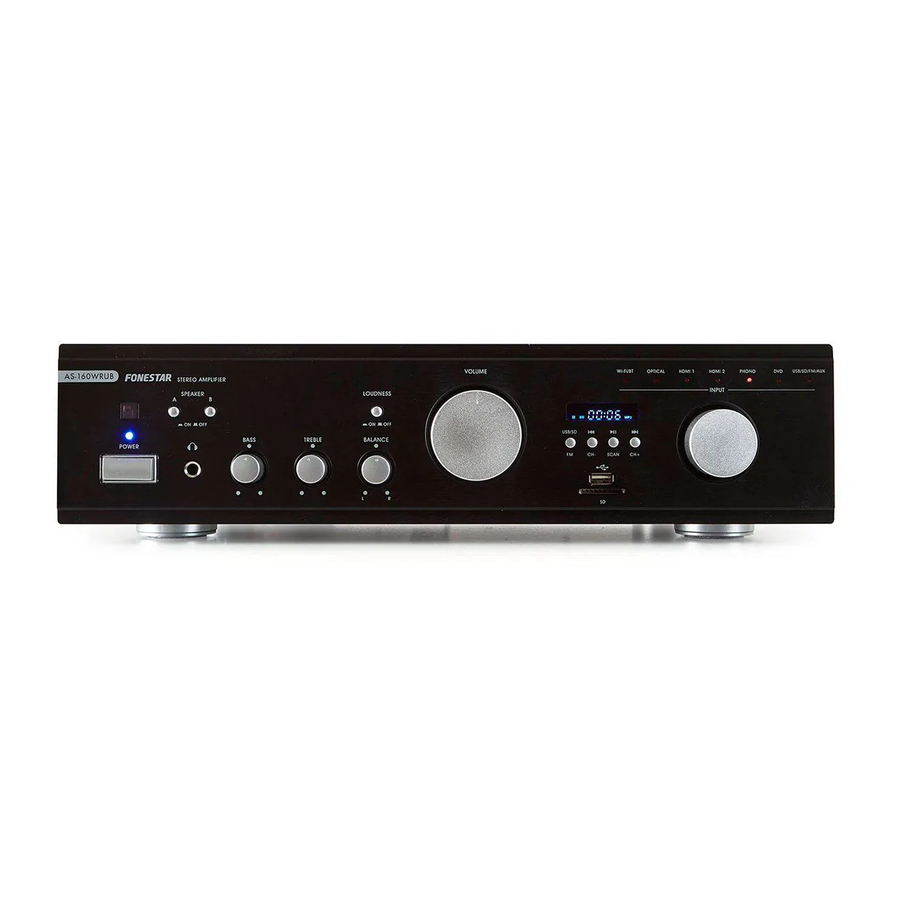

Wi-fi stereo amplifier

Advertisement

AS-160WRUB, AS-161WRUB
Wi-Fi STEREO AMPLIFIER
INSTRUCTION MANUAL
S-160WRUB
S-161WRUB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS-160WRUB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for FONESTAR AS-160WRUB

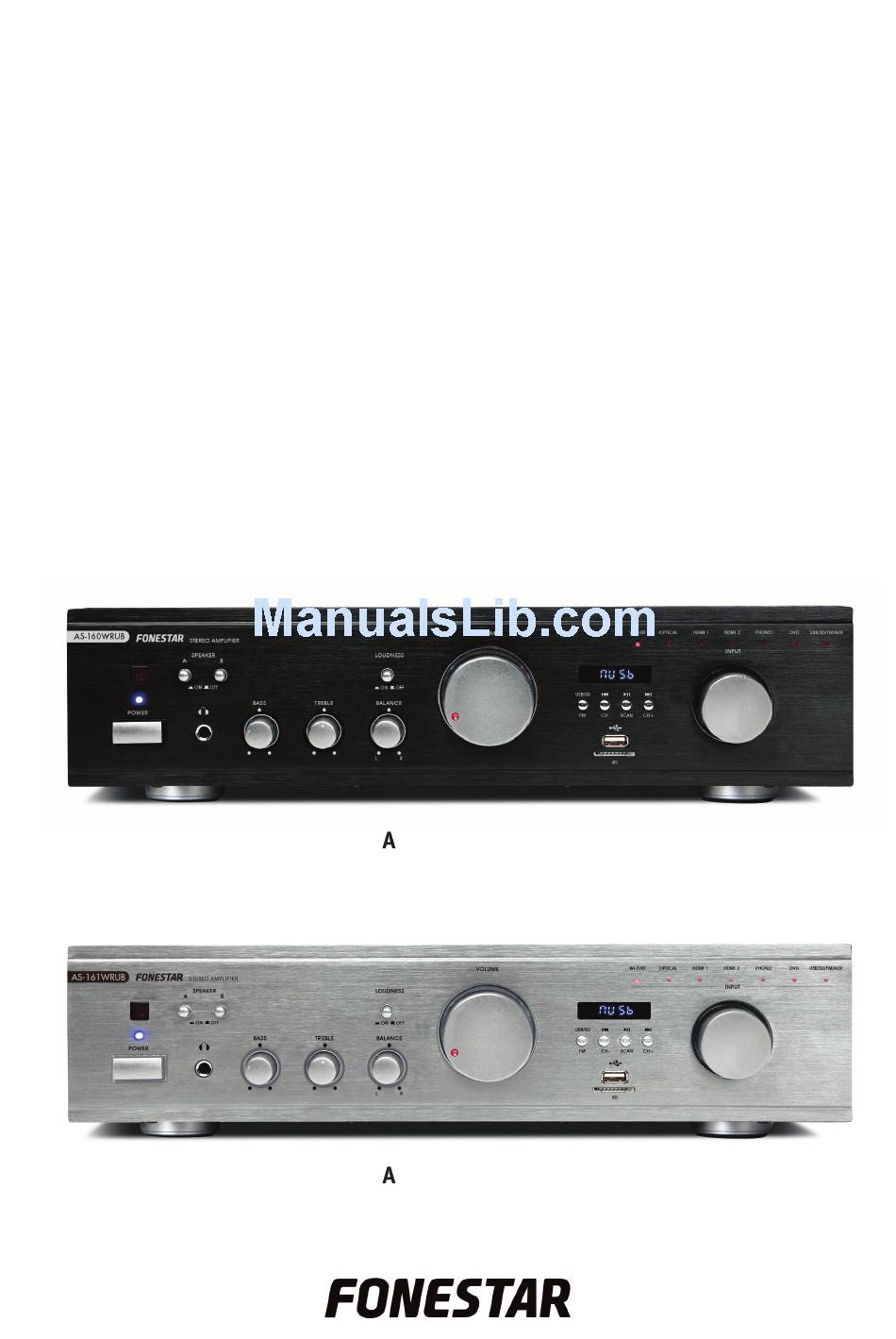

  • Page 1 AS-160WRUB, AS-161WRUB Wi-Fi STEREO AMPLIFIER INSTRUCTION MANUAL S-160WRUB S-161WRUB...
  • Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
  • Page 3: Exemption Of Liability

    The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.
  • Page 4: Controls And Functions Front Panel

    DESCRIPTION The models AS-160WRUB and AS-161WRUB are stereo amplifiers 60 + 60 W RMS at 4 Ω with great sound quality and optimum performance. Specially suited for domestic use. They incorporate an MP3 player that accepts the connection of USB storage devices and SD memory cards.
  • Page 5: Rear Panel

    17.- 8/CH+: in playback mode, a short press allows you to forward to the next track. A long press allows you to fast forward playback. In radio mode, it allows you to go to the next stored station. 18.- LED indicators of the selected input. 19.- INPUT: selector which allows the required input to be chosen.
  • Page 6: Remote Control

    17.- 3: stops playback. BLUETOOTH RECEIVER - These models AS-160WRUB and AS-161WRUB allow playback of MP3 files contained in your mobile phone if it is paired with the bluetooth receiver module of these amplifiers. - In order to pair your mobile phone with the bluetooth receiver, select the Bluetooth option with the knob located on the front panel of the amplifier or on the remote control.
  • Page 7 CONNECTION - Make the connections with the amplifier and all the components of the installation switched off and disconnected from the power supply. - Connect the audio devices or required microphones to the corresponding inputs. A dynamic microphone can be connected in the input designed for that purpose, located on the rear panel of the amplifier. - Line level sources can be connected in the aux inputs designed for that purpose on the rear panel of the amplifier.
  • Page 8 CONNECTING AND SENDING AUDIO VIA Wi-Fi To send audio to the amplifier via Wi-Fi a pre-configuration is necessary to indicate to the amplifier which Wi- Fi network you want it to connect to. Follow the steps described below: - Check the range of the Wi-Fi network in the location in which the amplifier is to be placed. It is possible that the device will not receive the signal from the router with good quality, the connection cannot be made.
  • Page 9 - Then, open the browser in your smartphone or tablet and enter the address “192.168.222.254” in the address bar. - Select the option “Internet Connection”. - Select the Wi-Fi network you wish to connect the amplifier to among the list of Wi-Fi networks available. - Once the amplifier is connected to that network, your smartphone/tablet will automatically connect to that Wi-Fi network again.
  • Page 10: Technical Specifications

    TECHNICAL SPECIFICATIONS AS-160WRUB AS-161WRUB CHARACTERISTICS Stereo amplifier. Playback via Wi-Fi for streaming services of playlists, online music services and internet radio. HDMI inputs with 4k x 2k support. Plays music from smartphones, tablets and other bluetooth devices. USB/SD/MP3 player. FM radio with 50 presets.
  • Page 11: Warranty

    2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it. To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no corrections or crossing out.
  • Page 12 - 12 -...
  • Page 13 www.fonestar.com...
