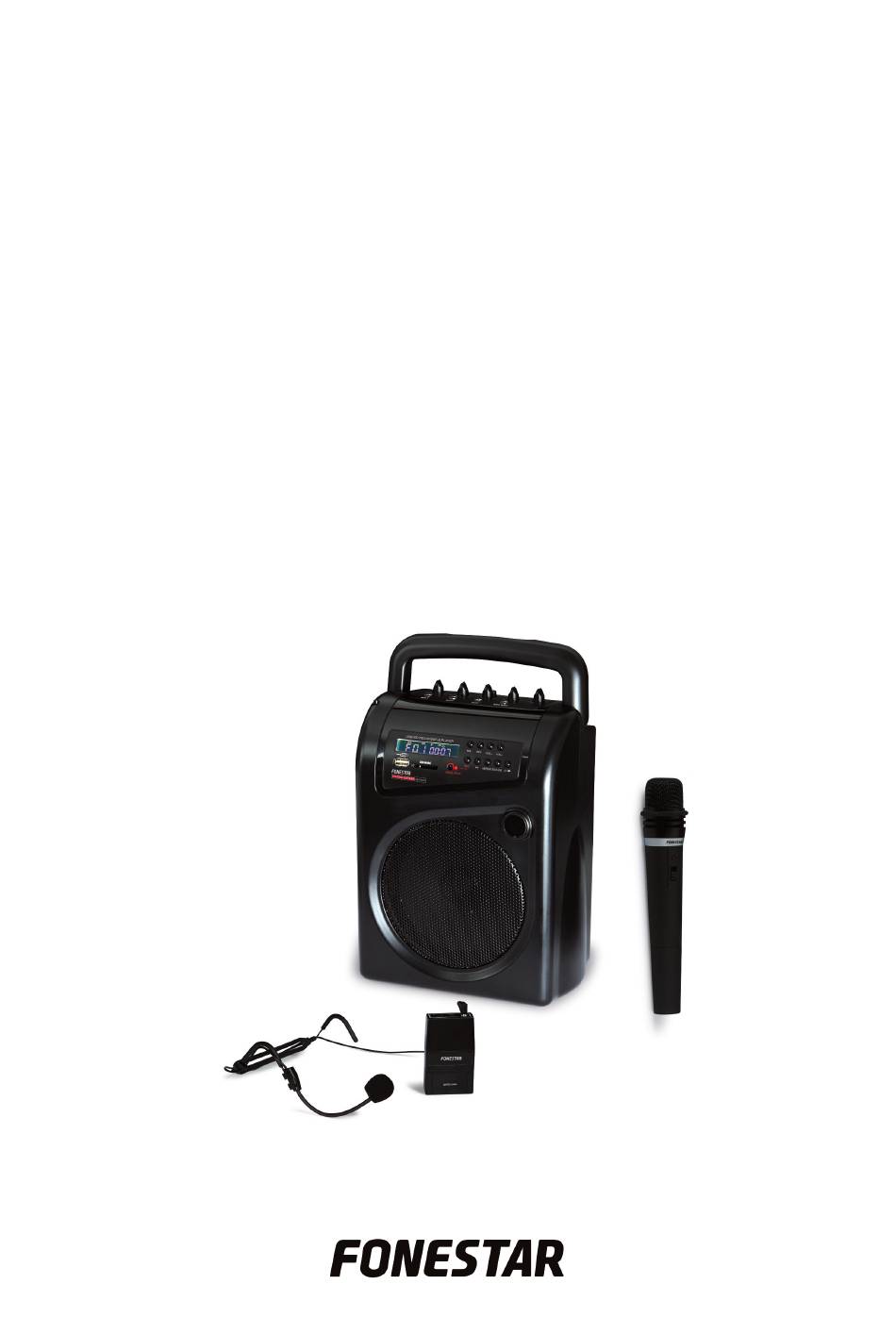

- Page 1 ASH-26GU, ASH-36GU, ASH-52GU PORTABLE COMPACT AMPLIFICATION EQUIPMENT WITH 1 OR 2 WIRELESS VHF MICROPHONES AND USB/SD/MP3 PLAYER/RECORDER INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. -
Page 4: Rechargeable Battery
MIC 1. The ASH-26GU model is supplied with 1 hand-held wireless microphone, the ASH-36GU model is supplied with 1 wireless tie-clip microphone and headset. Lastly the ASH-52GU model is supplied with 1wireless hand-held microphone and 1 wireless microphone headset with tie-clip. - Page 5 CONTROLS AND FUNTCIONS UPPER PANEL The controls for the models ASH-26GU and ASH-36GU are shown below. The model ASH-52GU is the same, but adding a second wireless microphone receiver. RF: LED indicator for the reception of the wireless VHF microphone RF signal.
-
Page 6: Front And Back Panel
FRONT AND BACK PANEL 12.- Wireless VHF microphone receiver aerial. 13.- 6 1/2” speaker, 20 W. 14.- LED indicator which stays on during the battery charge (6R61/6F22). When the charge is finishing the LED indicator will blink and will switch off completely when the charge has finished. 15.- LED indicator which stays on while the battery (6FM3.5, 12V/3AH/20HR) is charging. - Page 7 USB/SD/MP3 PLAYER/RECORDER 25.- Information screen: shows what stage the reproduction is at, the number of the song being played and the folder it is from. Besides, it shows the device connected (USB or SD), as well as the moment and the reproduction mode.
- Page 8 INSTRUCTIONS FOR USE RECHARGEABLE BATTERY To charge the battery connect the equipment to a 230 V AC connection using the power supply cable and move the switch ON/OFF/RECHARGE to RECHARGE (on the back panel). Maintain the equipment connected and switched on during the charge (approx. 10-15 hours). The time the battery lasts depends on the use of the equipment and the musical/vocal program being played.
- Page 9 INSTRUCTIONS TO USE THE HAND-HELD WIRELESS MICROPHONE (MSHT-21T) 1.- INTERRUPTOR DE ENCENDIDO: 3 Positions: 1- ON. 2- STANDBY. 3- OFF. Move it to the position ON to work. When you are not speaking, but want to have the microphone prepared, move the switch to STANDBY. In this way you will save battery and it will turn on immediately when the switch is moved to ON.
- Page 10 INSTRUCTIONS FOR THE TIE-CLIP MICROPHONE WITH WIRELESS BELT-PACK TRANSMITTER (MSHT-18) 1.- Remove the battery compartment lid and place a 9 V 006/6F22 or 6LR61 alkaline type battery. Respect the polarity which is shown in the compartment. The battery must be properly charged for the microphone to work properly.
-
Page 11: Specifications
SPECIFICATIONS ASH-26GU ASH-36GU ASH-52GU CHARACTERISTICS Portable amplifier, 15 W RMS. USB/SD/MP3 player/recorder. 230 V AC and 12 V DC power supply. Charger incorporated for internal battery included and rechargeable batteries for wireless microphones, 6R61/6F22 (9V) and 2 x R6-AA (1.5V). -
Page 12: Warranty
This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law “La Ley General para la Defensa de los...
