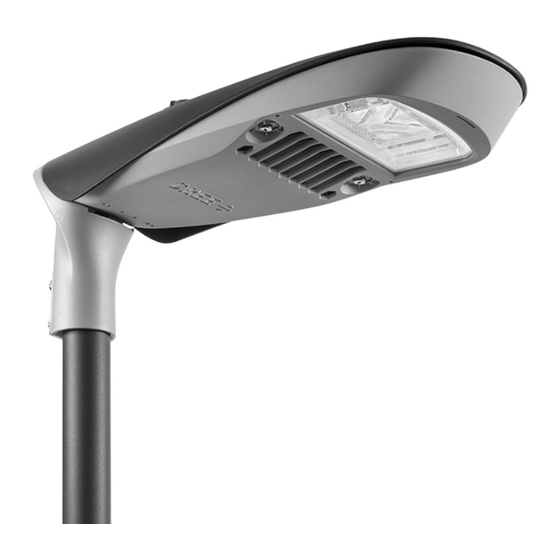

CREE LIGHTING SYRIUS SYS-A Series Quick Start Manual

Models :
Syrius Codici LS
LEA###
SYS-A-###
SYS-B-###

Disassembly Instructions

Light Source (LS)

For end User (EU)

N° DOC: DI122RLER0 Rev: 01
Codici DR
PH###
Warning: Before opening the appliance, remove voltage from the mains line
7
9
6
Tools:
1
3
5
8
2
4
Street Lights Luminaires

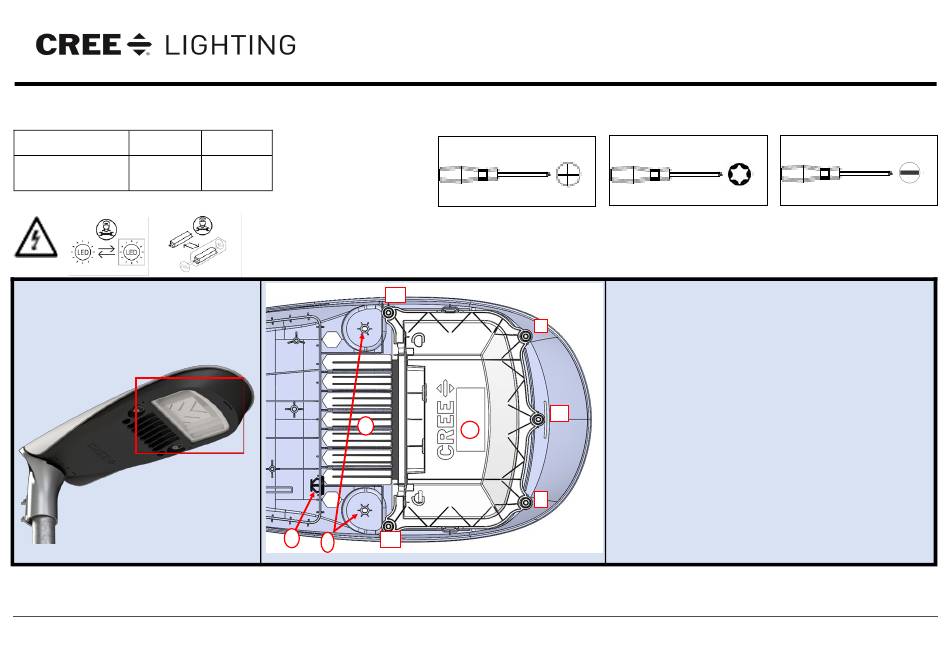

DISASSEMBLY INSTRUCTIONS
LS-EU
1.Follow the points: A - B - C - D of the instructions in
paragraph PS-CA
2.Unscrew in order the screws 1, 2, 3, 4 and 5 of the
optical group
3.Remove optical unit 8 with heatsink 7, cutting the ca-
ble tie that blocks the cable and pulling the cable
through gasket 9
4.If damaged, remove gasket 9 and replace it with a new
one
5.Pass the cable of the new optical unit with heatsink
through gasket 9
6.Screw back in order the screws 1, 2, 3, 4 and 5 of the
optical group with a torque of 2.8 Nm
7.Reconnect disconnected cables to points C and D of the
instructions in paragraph PS-CA
8.Restore the cable tie removed in step 3
9.Screw back 6 screws with a torque of 2 Nm
Latest Release Date: 18/11/2021
SYRIUS™
Includes: Syrius™
