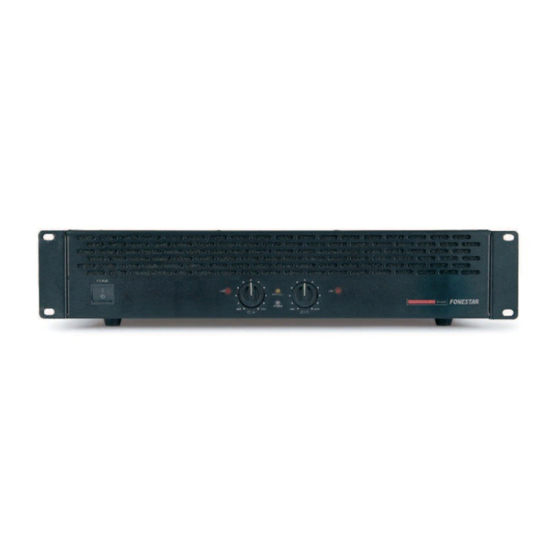

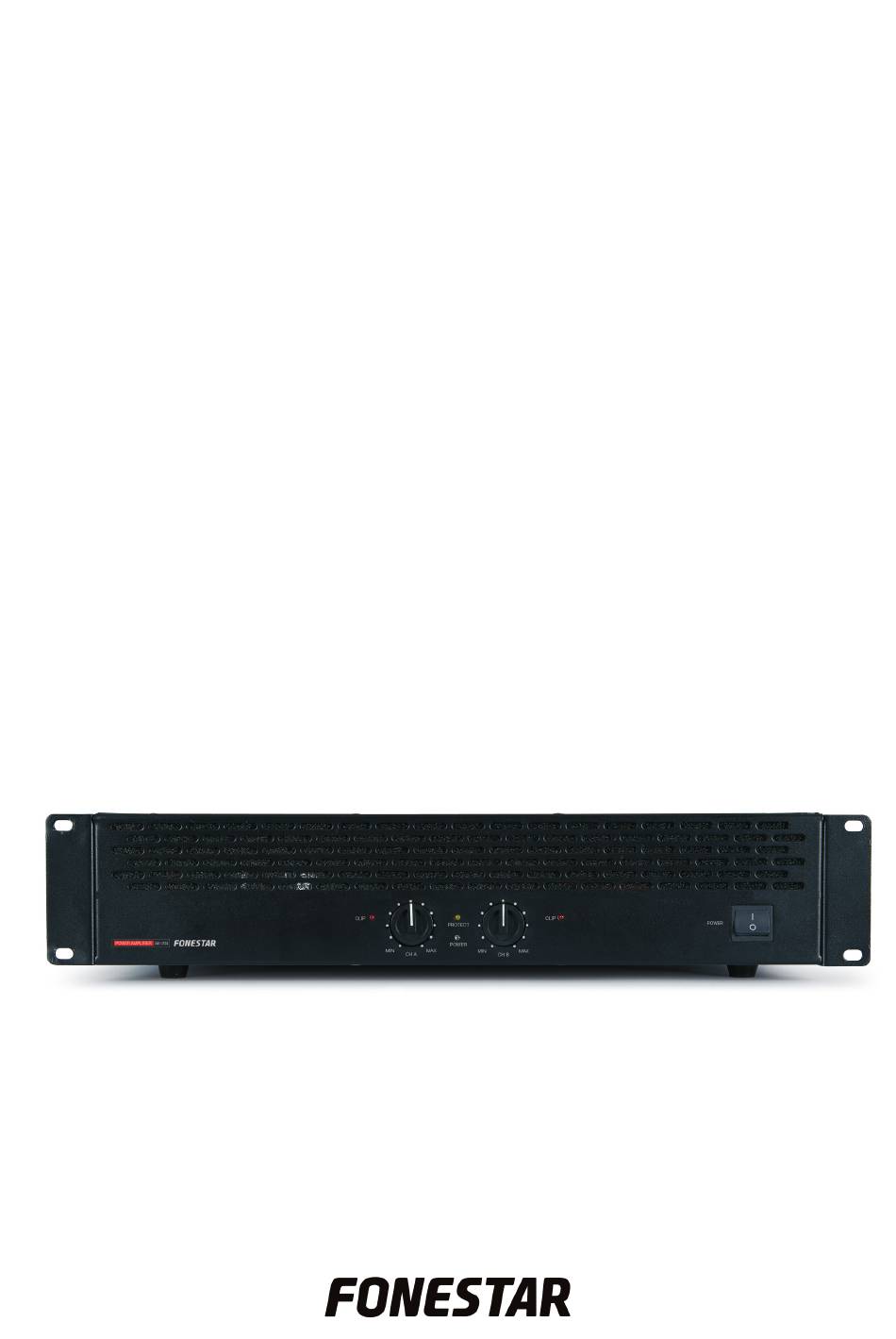

- Page 1 SA-204, SA-606 PROFESSIONAL STEREO AMPLIFIER INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
- Page 3 The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.
-
Page 4: Controls And Functions
DESCRIPTION - Professional stereo amplifier. CONTROLS AND FUNCTIONS FRONT PANEL 1, 6.- CLIP: LED signal peak indicators for each channel. If they light up slightly or occasionally the output volume must be reduced. If the LED indicator remains permanently lit this is due to the input signal being at a very high level. - Page 5 CONNECTION - Connect the loudspeakers to the loudspeaker output desired depending on its installation. Do not use more than one type of output at a time. - The loudspeakers must be connected in a series/parallel circuit so that the charge impedance of the loudspeakers is the same as the charge impedance of the amplifier and that the power supplied by the amplifier does not exceed that withstood by the loudspeakers .
-
Page 6: Technical Specifications
TECHNICAL SPECIFICATIONS SA-204 SA-606 CHARACTERISTICS Professional stereo power amp. 150 + 150 W RMS at 4 Ω Stereo mode: POWER 100 + 100 W RMS at 8 Ω 400 + 400 W RMS at 4 Ω 300 + 300 W RMS at 8 Ω... -
Page 7: Declaration Of Conformity
This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los... - Page 8 www.fonestar.com...
