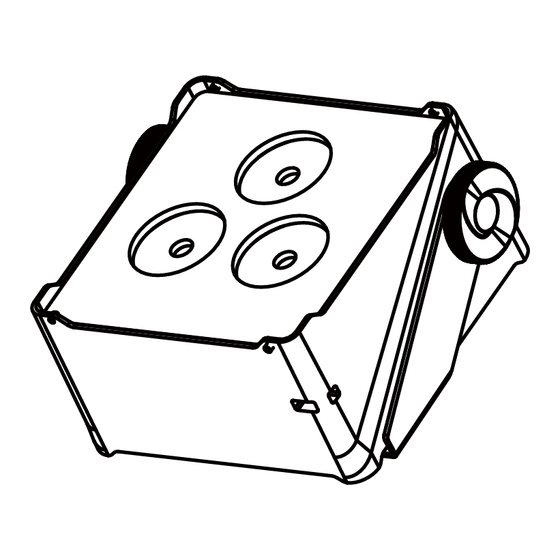

- Page 1 BATMINI310LIP 3x10W Battery Wing USER MANUAL...
-
Page 2: Safety And Handling
And please don’t return the lights to the dealer before contacting us. Introduction:The BATMINI310LIP is a mini wall washer with excellent performance. It is 200mm long, but its width of covering wall is 5m. Because the light source is 3pcs*10W RGBW LEDs. - Page 3 •Do not directly look into the light. •It can cause harm to your eyes. •Do not look at the LEDs with a magnifying glass or any other optical instrument that may concentrate the light output. •The exterior surfaces of the light can become hot, up to 70°C during normal operation.
-
Page 4: Troubleshooting
Troubleshooting The fixture does not turn on. The battery may be empty. Connect it to the power cable and try again. The fixture turns on and the display is on, but the LEDs do not emit light. The fixture could be set to BLACKOUT mode, set to is DMX Hold and doesn’t receive a valid signal. - Page 5 Features OPTICS ● Light Source: 3*10W, 4 in 1 RGB+W LEDs ● Lens: Standard 10 °，optinal choose:20,30,45° ELECTRICAL ● Power consumption: 30W ● Voltage: AC 110 - 240V, 50/60Hz BATTERY ● Battery: Lithium Batteries,11.1V,9AH ● Charge Time: 4.5 Hours ● Working Time: 3H / 6H / 12H / 18H for choose DYNAMIC EFFECT ●...
-
Page 6: Programme Menu
Programme Menu DMX Address DMX Mode Channel Mode Hold DMX State Black Dimmer Cure 1/2/3/4 Slave Mode Slave auto Auto Mode speed Green 0-255 Blue MENU Manual mode White Color 1-51 Strobe 0-20 3000K 3500K 4000K 4500K 5000K 6000K 7000K 8000K 9000K 10000K... - Page 7 Key Lock Remote Display 30/S Ba ery boost Bat usage 600Hz Set Up 1200Hz 2400Hz Refresh rate 4800Hz 12000Hz 18000Hz Max Temp 30-70° Dimmer all 0-255 Balance Green 0 -255 MENU Blue Hardware ver 1.1 So ware ver 1.1 Informa on Current me 00000H-01m Total me...
- Page 8 Displayer Introduction 30°C 1. When you enter DMX Mode,it will be showed DMX,when you enter SLAVE Mode,it will be showed SLAVE. 2. This shows the condition of signal transmission. Green is connected.Red is disconnected. 3. This shows the temperature of the lights. 4.
- Page 9 30°C While DMX shows green but Wireless signal shows red,it means DMX Mode is connected and Wireless is disconnected. 30°C While DMX and Wireless are show red,it means DMX Mode and Wireless are disconnected. 30°C While the letters and number shows change from white to yellow,it means the temperature beyond max temperature of default settings.
- Page 10 DMX-In this menu,you can connect several pieces of lights with DMX cable and control them with control console. 1. Press “ENTER” button and then UP or DOWN button until “DMX ” is showed. 2. Press “ENTER” button, and “CHANNEL” or “ADDRESS” will be showed.Then press ENTER. 1) “Channel [xx]”...
- Page 11 2. Press “ENTER” button, and“SPEED” or “PROGMA MODE” will be showed. Then press ENTER,and you can see two items as below: 1) SPEED - You can select your desired speed in this menu. 2) PROGMA MODE - You can select your desired auto mode in this menu. CUSTOM MODE-In this menu,you can select the AUTO program edited in the “EDIT”...
-
Page 12: Dmx Control Mode
DMX control mode 2 CHANNELS Channel Value Function 0-255 Color 1-color 51 0-255 White color marco: 3000K-10000K HSV CHANNELS Channel Value Function 0-255 0-255 Saturation 0-255 Value (brightness) 5 CHANNELS Channel Value Function 000 - 255 000 - 255 Green 000 - 255 Blue 000 - 255... - Page 13 11 CHANNELS Channel Value Function 000 - 255 Master dimmer 000 - 255 000 - 255 Green 000 - 255 Blue 000 - 255 White 000 - 255 Color 1-color 51 000- 255 White color marco: 3000K-10000K 000 - 255 Strobe (slow -fast) 000 - 255 Auto 1-12...
- Page 14 The installaiton should be checked by a skilled person once a year. The BATMINI310LIP is fully operational in two different mounting positions, hanging upside-down from a ceiling or set on a flat level surface. To avoid internal damage to the unit, never mount the unit on its side as illustrated above.
-
Page 15: Cable Connectors
CABLE CONNECTORS Cabling must have a male XLR connector on one end and a female XLR connector on the other end. DMX connector configuration GROUND caution:Do not allow contact between the ground and the fixture’s chassis ground. Grounding the ground can cause a ground loop, and your fixture may perform erratically. Test cables with an ohm meter to verify positive pole and to make sure the pins are not grounded or shorted to the shield or each other. -
Page 16: Product Overview
Produc t Overview 170.5... - Page 17 CHARGE WITH ABS CASE DURING THE COMPLETE PROCESS OF BATTERIES CHARGE THE UPPER COVER OF THE FLIGHTCASE MUST BE ALWAYS OPEN. DURING THE COMPLETE PROCESS OF BATTERIES CHARGE THE PROJECTORS MUST BEALWAYS OFF. For correct use of the battery it is strongly recommended to: ●...
- Page 18 Wireless indicator status Description Both blinking red color wireless transmitter or receiver OFF or not linked with the projector Both blinking but: Master and Slave with the projector not connect success Wireless green Master-Transmitter mode ON and linked with the Both fixed green color projector Slave- Receiver Connection in wireless mode -DMX...
-
Page 19: Tips And Tricks
Tips & tricks There are limitations to how wireless waves propagate through air. Physical barriers like glass, concrete and walls will limit the transmission range. Always try to have clear line-of-sight between transmitters and receivers. 300m 200m 100m(dry-wall) - Page 20 2.4G Remote Power on/off button Press and hold the power button for 3 seconds to turn on/off the remote control , short press the control light switch DMX button,to control DMX address when press this button.It is SLAVE mode when AUTO double click.
- Page 21 4.During the flashing of the remote control light, the lamp flashes 3 times, which means that the connection is successful. 5.After the match is successful, when the remote control light is on, it means that the group of lamps is being controlled. 6.If there are multiple lamps that need to be connected, please repeat the above steps and press the button to select different groups for connection.(Each...
