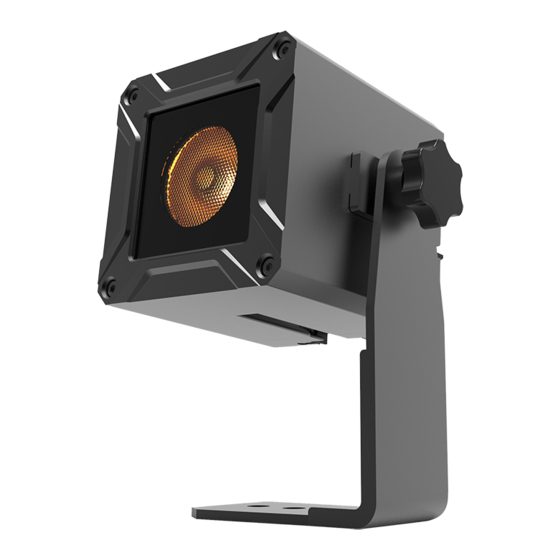

- Page 1 BATDOT20LIP 1×20W RGBW Battery Spot LED USER MANUAL...
- Page 2 And please don’t return the lights to the dealer before contacting us. Introduction:The BATDOT20LIP is a mini wall washer with excellent performance. It is 200mm long, but its width of covering wall is 5m. 2.4G remote control is included. The house is made of extruded aluminum and die-cast aluminum cover.
- Page 3 •Do not directly look into the light. •It can cause harm to your eyes. •Do not look at the LEDs with a magnifying glass or any other optical instrument that may concentrate the light output. •The exterior surfaces of the light can become hot, up to 70°C during normal operation.
-
Page 4: Troubleshooting
Troubleshooting The fixture does not turn on. The battery may be empty. Connect it to the power cable and try again. The fixture turns on and the display is on, but the LEDs do not emit light. The fixture could be set to BLACKOUT mode, set to is DMX Hold and doesn’t receive a valid signal. - Page 5 Features ●Led: 1*20W RGBW ●Lens:10° ●Magnetic frost filter:15,25,45,60,60*10 degree ●LED lifetime:50,000 hours ●Voltage:100 - 240V 50/60Hz ●Max power: 15W ●Cabled DMX: 5 pin XLR input/output ●Control: RDM, DMX 512 & Wireless DMX ●Color temperature: 2000K - 10000K ●CRI : ≥95 ●Light output : 1000lm ●Lux: 34308 lux @ 2m ●DMX channels: 2/HSV/7/12/13/19CH...
-
Page 6: Programme Menu
Programme Menu DMX Address DMX Mode Channel Mode Hold DMX State Black Dimmer Cure 1/2/3/4 Slave Mode Slave auto Auto Mode speed MENU Green 0-255 Blue Manual mode White Color 1-50 Strobe 0-20 3000K 3500K 4000K 4500K 5000K 6000K 7000K 8000K 9000K 10000K... - Page 7 Transmi er Wireless Receiver Release Key Lock Remote Display Ba ery boost Bat usage Set Up 600Hz 1200Hz 2400Hz MENU Refresh rate 4800Hz 12000Hz 18000Hz Max Temp 30-70°C Dimmer all 0-255 Balance Green 0-255 Blue Hardware ver 1.0 So ware ver 1.1 Informa on Current me 00000H-01m...
- Page 8 Displayer Introduction 30°C 1. When you enter DMX Mode,it will be showed DMX,when you enter SLAVE Mode,it will be showed SLAVE. 2. This shows the condition of signal transmission. Green is connected.Red is disconnected. 3. This shows the temperature of the lights. 4.
- Page 9 30°C While DMX shows green but Wireless signal shows red,it means DMX Mode is connected and Wireless is disconnected. 30°C While DMX and Wireless are show red,it means DMX Mode and Wireless are disconnected. 30°C While the letters and number shows change from white to yellow,it means the temperature beyond max temperature of default settings.
- Page 10 DMX-In this menu,you can connect several pieces of lights with DMX cable and control them with control console. 1. Press “ENTER” button and then UP or DOWN button until “DMX ” is showed. 2. Press “ENTER” button, and “CHANNEL” or “ADDRESS” will be showed.Then press ENTER. 1) “Channel [xx]”...
- Page 11 2. Press “ENTER” button, and“SPEED” or “PROGMA MODE” will be showed. Then press ENTER,and you can see two items as below: 1) SPEED - You can select your desired speed in this menu. 2) PROGMA MODE - You can select your desired auto mode in this menu. CUSTOM MODE-In this menu,you can select the AUTO program edited in the “EDIT”...
-
Page 12: Dmx Control Mode
DMX control mode 2 CHANNELS Channel Value Function 000-255 Color 1-color 51 000-255 White color marco: 3000K-10000K 3 CHANNELS Channel Value Function 000-255 000-255 Saturation 000-255 Value (brightness) 5 CHANNELS Channel Value Function 000 - 255 000 - 255 Green 000 - 255 Blue 000 - 255... - Page 13 11 CHANNELS Channel Value Function 000 - 255 Master dimmer 000 - 255 000 - 255 Green 000 - 255 Blue 000 - 255 White 000 - 255 Color 1-color 51 000- 255 White color marco: 3000K-10000K 000 - 255 Strobe (slow -fast) 25 /s 次...
- Page 14 The installaiton should be checked by a skilled person once a year. The BATDOT20LIP is fully operational in two different mounting positions, hanging upside-down from a ceiling or set on a flat level surface. To avoid internal damage to the unit, never mount the unit on its side as illustrated above.
-
Page 15: Product Overview
Produc t Overview... - Page 16 CHARGE WITH ABS CASE DURING THE COMPLETE PROCESS OF BATTERIES CHARGE THE UPPER COVER OF THE FLIGHTCASE MUST BE ALWAYS OPEN. DURING THE COMPLETE PROCESS OF BATTERIES CHARGE THE PROJECTORS MUST BEALWAYS OFF. For correct use of the battery it is strongly recommended to: ●...
- Page 17 Wireless indicator status Description Both blinking red color wireless transmitter or receiver OFF or not linked with the projector Both blinking but: Master and Slave with the projector not connect success Wireless green Master-Transmitter mode ON and linked with the Both fixed green color projector Slave- Receiver Connection in wireless mode -DMX...
-
Page 18: Tips And Tricks
Tips & tricks There are limitations to how wireless waves propagate through air. Physical barriers like glass, concrete and walls will limit the transmission range. Always try to have clear line-of-sight between transmitters and receivers. 300m 200m 100m(dry-wall) - Page 19 2.4G Remote Power on/off button Press and hold the power button for 3 seconds to turn on/off the remote control , short press the control light switch DMX button,to control DMX address when press this button.It is SLAVE mode when AUTO double click.
- Page 20 4.During the flashing of the remote control light, the lamp flashes 3 times, which means that the connection is successful. 5.After the match is successful, when the remote control light is on, it means that the group of lamps is being controlled. 6.If there are multiple lamps that need to be connected, please repeat the above steps and press the button to select different groups for connection.(Each...
