  • Page 1 COLORBAR1610IP 3x10W RGBW LED Bar Light USER MANUAL...

  • Page 3: Product Overview

    Product Overview DMX-OUT MENU ENTER DOWN POWER-OUT POWER-IN DMX-IN...

  • Page 4: Mechanical Specification

    Mechanical Specification 1000...
  • Page 5 Packaging: Thanks for your purchasing the COLORBAR1610IP. All the lights have been checked and are in excellent operating condition. Please check the shipping carton first. Because there maybe damage occurred during the shipment. Then check the lights carefully and be sure that the light is intact and works normally.

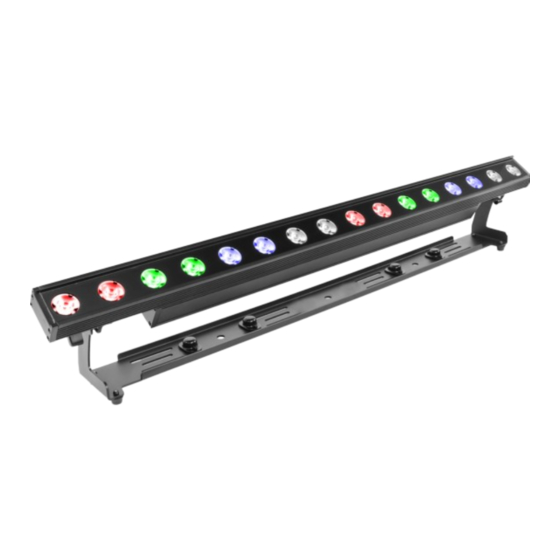

  • Page 6 Features ● Light Source: 16pcs*10W, RGBW 4 in 1 LED ● Beam angel: 12 ° ● Power consumption: 120W ● DMX channels: 3, 8, 12, 32, & 37 CH ● DMX and RDM is available. ● IR remote control included ●...

  • Page 7: Slave Mode

    Displayer introduction ① ② ③ temp:043 ④ ADDRESS Key lock open ⑤ MENU DOWN ENTER 1. DMX means the light is in the DMX mode.Similarly,SLAVE means the light is in the SLAVE mode. 2. The color of the point shows the condition of signal transmission. Green represents the good condition, while red represents the signal is interrupted.

  • Page 8: Programme Menu

    CHANNEL Programme Menu CHANNEL CHANNEL DMX CHANNEL CHANNEL DMX MODE CHANNEL ADDRESS ADDRESS Standard Stage/TV Dimmer Curve Architec Theatre DMX Hold DMX State Black out Slave SLAVE MODE Auto Auto Speed GREED BLUE STATIC COLOR WHITE COLOR STROBE 20Hz 2700K 3200K 3500K 4000K...
  • Page 9 Dimmer speed Remote 0-255 Dimmer all SET UP GREEN White Balance BLUE WHITE Key Lock Max Temp 30 - 65℃ Display Hardware ver 1.0 Software ver 1.2 Information RDM UID 0x010E 00000H-01m Working Time Factory Reset...

  • Page 10: Dmx Control Mode

    DMX control mode MODE3 CHANNELS Channel Value Function 000 - 255 000 - 255 Saturation 000 - 255 Value MODE 8 CHANNELS Channel Value Function 000 - 255 Dimmer 001 - 063 Dimmer Curve1 064 - 127 Dimmer Curve2 128 - 191 Dimmer Curve3 192 - 255 Dimmer Curve4...
  • Page 11 MODE 32 CHANNELS Channel Value Function 000 - 255 Led1 Red 000 - 255 Led1 Green 000 - 255 Led1 Blue 000 - 255 Led1 White 000 - 255 Led2 Red 000 - 255 Led2 Green 000 - 255 Led2 Blue 000 - 255 Led2 White 9-12...

  • Page 12: Dmx-512 Addressing With Id Address

    DMX-512 addressing with ID address 1. Follow instructions 1 for DMX 512 addressing. 2. Activate ID addressing in each fixture by setting panel function “ID ON/OFF” to ON. “Settings” to “ID ON/OFF” to “ON” For every DMX 512 starting address the user can set 66 separate ID addresses.
  • Page 13 DMX MODE-In this menu,you can connect several pieces of lights with DMX cable and control them with the control console. Press ”ENTER” and then press “UP” or “DOWN” to ”Address” or “DMX Channel” and press “ENTER”. 1) “XXX” will be showed in “Address”, "XXX” means the Address 001-512. You can press “UP” or “DOWN”to select the address you desired.
  • Page 14 INFORMATION-In this menu, you can learn about the information of RDM, software and hardware of the light. 1.Press “ENTER” and then press “UP” or “DOWN” to “INFORMATION”. 2.Press “ENTER” and you can see 3 items as below: 1) RDM - It shows RDM information. 2) Hardware - It shows the Hardware information.
  • Page 15 The installaiton should be checked by a skilled person once a year. The COLORBAR1610IP is fully operational in three different mounting positions, hanging upside-down from a ceiling, set on a flat level surface or mount the unit on its side.

  • Page 16: Cable Connectors

    CABLE CONNECTORS Cabling must have a male XLR connector on one end and a female XLR connector on the other end. DMX connector configuration GROUND caution:Do not allow contact between the ground and the fixture’s chassis ground. Grounding the ground can cause a ground loop, and your fixture may perform erratically. Test cables with an ohm meter to verify positive pole and to make sure the pins are not grounded or shorted to the shield or each other.
  • Page 17 IR Controller Power on/off button SLAVE DMX button,to control DMX AUTO AUTO SPEED address when press this SOUND SOUND button.It is channel mode when double click. STROBE DOWN Master-slave mode button. SLAVE Automatic mode button AUTO AUTO Speed adjustive button SPEED Sound mode button SOUND...

  • Page 18: Rdm---Remote Device Management

    RDM---Remote Device Management RDM is a wild version of the DMX512-A protocol, allowing dimming stations and other control devices to be discovered through a DMX512 network, and then configuring, status monitoring, and managing intermediate and line end devices. It allows two-way communication between the lighting device or system controller and the connected RDM compatible device through the standard DMX.
