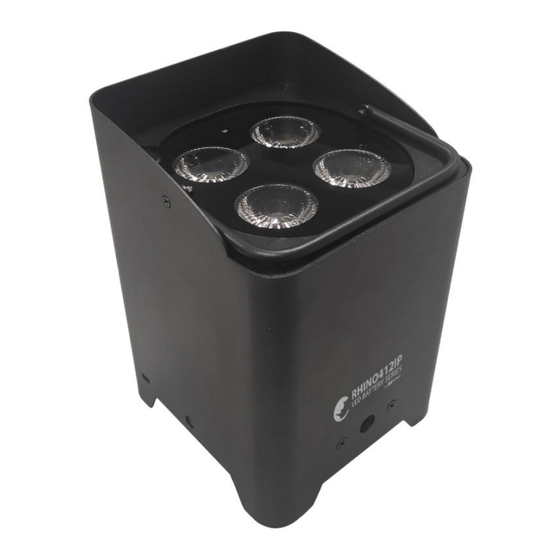

- Page 1 RHINOBAT412IP Battery 4×12W LED Wireless DMX USER MANUAL...
-
Page 2: Table Of Contents
User’s Manual TABLE OF CONTENT 1. Warning ……………………….…………….……….…………………………….………………………………………….2 1.1 Safety Instructions ………………………………………………….……………………………………………………….2 1.2 Rigging …………………………………………………………………………………………………………………….….…3 2. Product Introduction … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … . … … … … … 3 2.1 Items Included in the Package …………………………………….…….…….…….…………………….……..3 2.2 Product Overview…………………………………………………………………….……………………………………….3 2.3 Fixture Temperature ……………………………………….………………….……….…….……………...……………….6... -
Page 3: Warning
User’s Manual 1. WARNING 1.1 Safety Instructions This product guide contains important information about the safe installation and use of this product. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. When unpacking and before disposing of the carton, check there is no transportation damage before using the product. -
Page 4: Rigging
User’s Manual IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the fixture. 1.2 Rigging Concerning rigging, trussing for this fixture, please follow the European and national guidelines. Only the qualified technicians are allowed for the device installation, The fixture must never be mounted for a possible swinging position, and a safety cord attached must always be used. - Page 5 User’s Manual This lighting fixture uses a very stable wireless DMX transceiver from Wireless DMX Solution Sweden. The fixture can also be controlled with infrared remote controller. Please refer to “5.5 IR Remote Control”. This fixture has a kettle charge socket, and can be charged on charge connector inside flight case. It can also be charged with 100-240V AC power.
- Page 6 User’s Manual 1. MENU Select the programming functions or exit from current setup 2. ENTER Enter the current menu or confirm the current function value 3. UP Scroll “UP” through menu list to increase value of current function 4. DOWN Scroll “DOWN” through menu list to decrease value of current function 5. IR Infrared control sensor 6. Wireless DMX indictor 2.2.3 Fixture Dimensions...
-
Page 7: Fixture Temperature
User’s Manual 2.3 Fixture Temperature The fixture has temperature protection function. You can easily check fixture temperature via the OLED display information menu. When fixture temperature is higher than 65 degrees, light output will decrease to 80%. When fixture temperature is higher than 65 degrees, light output will decrease to 60%. When fixture temperature is higher than 75 degrees, leds will go off automatically until temperature comes down to 55 degrees. -
Page 8: Specifications
User’s Manual 2.5.3 The fixture has a M10 threaded hold for clamp, and can be mounted on truss as truss warmer. When install the fixture to crossbar or truss, always use an extra safety cord (not supplied with the fixture). Users also need to make sure the crossbar is stable or not moving, and can support a weight of 38 kg (fixture net weight 3.8kg). -
Page 9: Battery
User’s Manual Light sources 4x12W, RGBW 4-in-1 quad led Beam angle Field angle Led average life span 50,000 hours Control Control mode DMX512, Master/Slave, Stand Alone; Wireless DMX, IR Remote Control DMX channel 4/6/10 channel selectable Control panel OLED display with touch buttons DMX (From Wireless Solution);... -
Page 10: Product Setup
User’s Manual Battery life can be easily seen on the OLED display. It is recommended to charge the fixture at an ambient temperature between 0°C and 35°C. When charging fixtures in flight case, make sure to always keep the case open. Battery always charges whenever fixture is seated on charge connector. -
Page 11: Dmx Addressing
User’s Manual 4.3 DMX Addressing Each fixture must be given a DMX address so that the correct fixture responds to the correct control signals. This DMX address is the channel number from which the fixture starts to “listen” to the digital control information being sent out from the controller. -
Page 12: Dmx Fail
User’s Manual Press “ENTER” to save your setting. 4.4 DMX Fail Users can set up the fixture how to operate once DMX signal fails. Continue pressing “MENU” until “DMX Fail” appears. Now press “UP” or “DOWN” to select “Hold” or “Auto” or “Blackout”. -
Page 13: Wireless Dmx Indicator Information
User’s Manual To set other fixtures as slave units, continue pressing “MENU” till “Master/Slave” appears, press “ENTER” and scroll “UP” or “DOWN” to select “Receive”. Press “ENTER” to save the setting. Now all slave units will operate in sequence with the master unit. Please note that slave units could have wireless DMX memory. - Page 14 User’s Manual Master dimming 0-255 0-100% 0-255 0-100% Green 0-255 0-100% 6 CH Blue 0-255 0-100% White 0-255 0-100% 0-10 No function Strobe 11-255 Strobe from slow to fast Master dimming 0-255 0-100% 0-255 0-100% Green 0-255 0-100% Blue 0-255 0-100% White 0-255...
-
Page 15: Master/Slave Mode
User’s Manual 171-175 Color macro 14 176-180 Color macro 15 181-185 Color macro 16 186-190 Color macro 17 191-195 Color macro 18 196-200 Color macro 19 201-205 Color macro 20 206-210 Color macro 21 White balance & 211-215 Color macro 22 Color macro 216-220 Color macro 23... -
Page 16: Customized Colors
User’s Manual - Press “ENTER” to confirm your run mode; - Scroll “UP” or “DOWN” to select Auto programs (from 1 - 2), or Fade (from 1 – 2) or “Color” (from 1-15) or “Sound” (from 1 to 4) 5.4 Customized Colors Users are allowed to program their own color effects and save to your fixture. -
Page 17: Maintenance
User’s Manual address, DMX channel, brightness etc. 3 - Run auto mode, use “Speed” button followed by the buttons to adjust auto speeds. 4 – Run sound program, use buttons to adjust sound sensitivity. 5 – Run strobe program, use buttons to adjust strobe speed. -
Page 18: Fuse Replacement
User’s Manual surroundings, it is suggested to clean the lens and housing at least once a month. It is suggested to use a soft cloth using normal glass cleaning fluid. The following points have to be considered during the maintenance: - Switch off the fixture before cleaning. - Page 19 User’s Manual Memo: ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________...
