This is the Time Multiplexed version to be used with the "E" Panel only.
ITEM
PART NO.
1
0A6985
2
0A6388A
4
040213
5
0A6690
6
036901
7
0A6988
8
0A6733
9
074094
10
061284
11
032300
12
044299
13
061286
14
065511
16
036918
17
025034
18
0A7766
19
022985
20
022155
21
022188
22
0D1461
23
0D1460

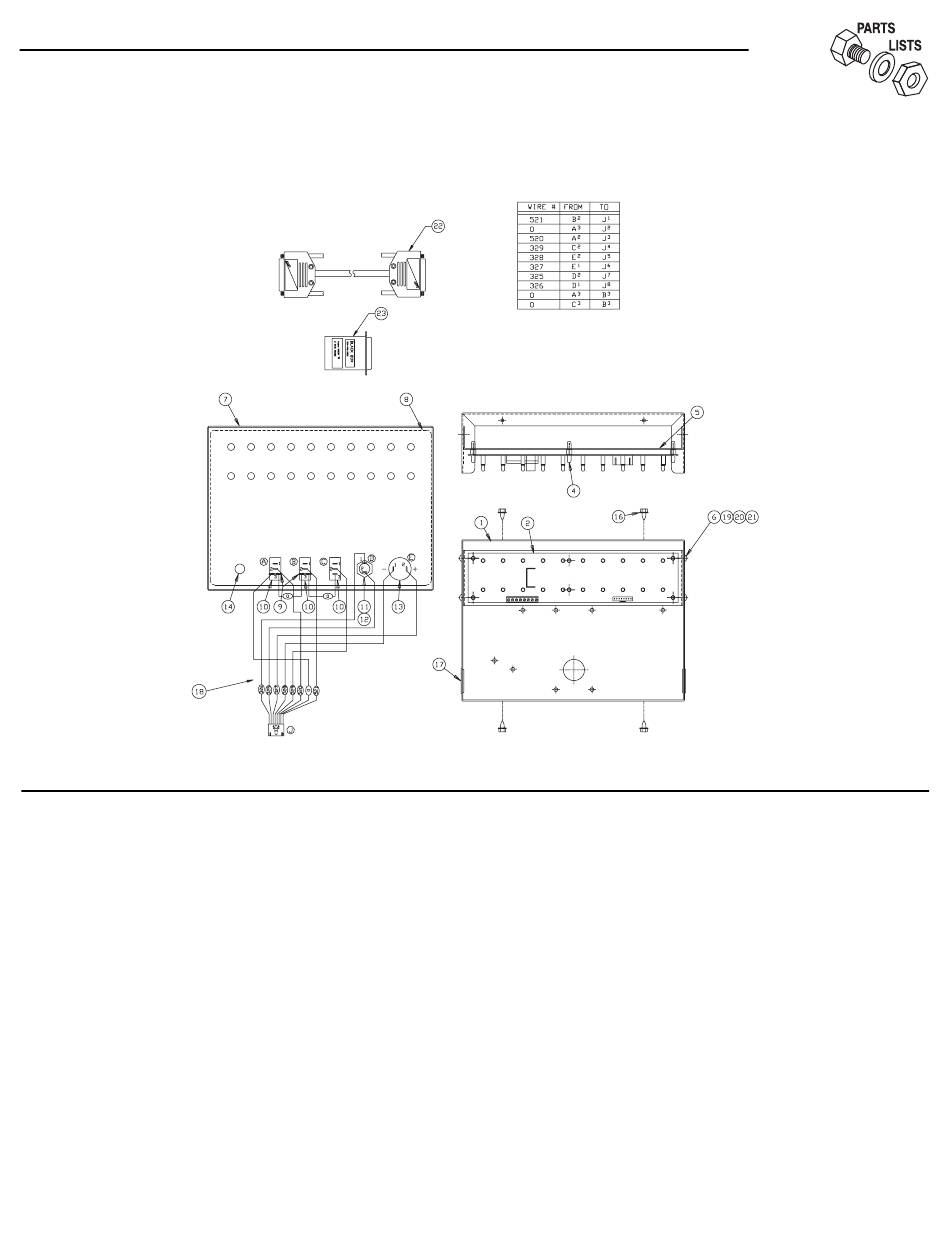

Model 004391-0 — Drawing No. 0D1627-A
Note:
QTY.
DESCRIPTION
1
Panel, Annunciator Rear
1
RS485 Dual Communicator
12
PCB Sup Snap-in 1/4"
2
Gussett, Frt, Mnt 1000 kW
8
Screen PPHM #6-32 X 3/8"
1
Panel, Annunciator Front
1
Decal, Annunciator Panel
2
Lug, 1/4" Tab Splitter
3
Switch, RCKR SPST 10 @ 125V SPD
1
Fuse Holder
1
Fuse, 1 Amp x AGC 1
1
Sounalert Buzzer
1
Plug, Button 1/2 IN
4
Screen PPHM #8-32 x 1/2"
2
Plug Steel 1.0625
1
Harness, 10W Rem Annun
8
Washer Flat #6 Zinc
8
Washer Lock #6
8
Nut Hex #6-32 Steel
1
Cable Assembly 20 Light
1
Converter, RS232-485
20 Light Remote Annunciator
Surface Mount Assembly
Generac
®
Power Systems, Inc.
13
