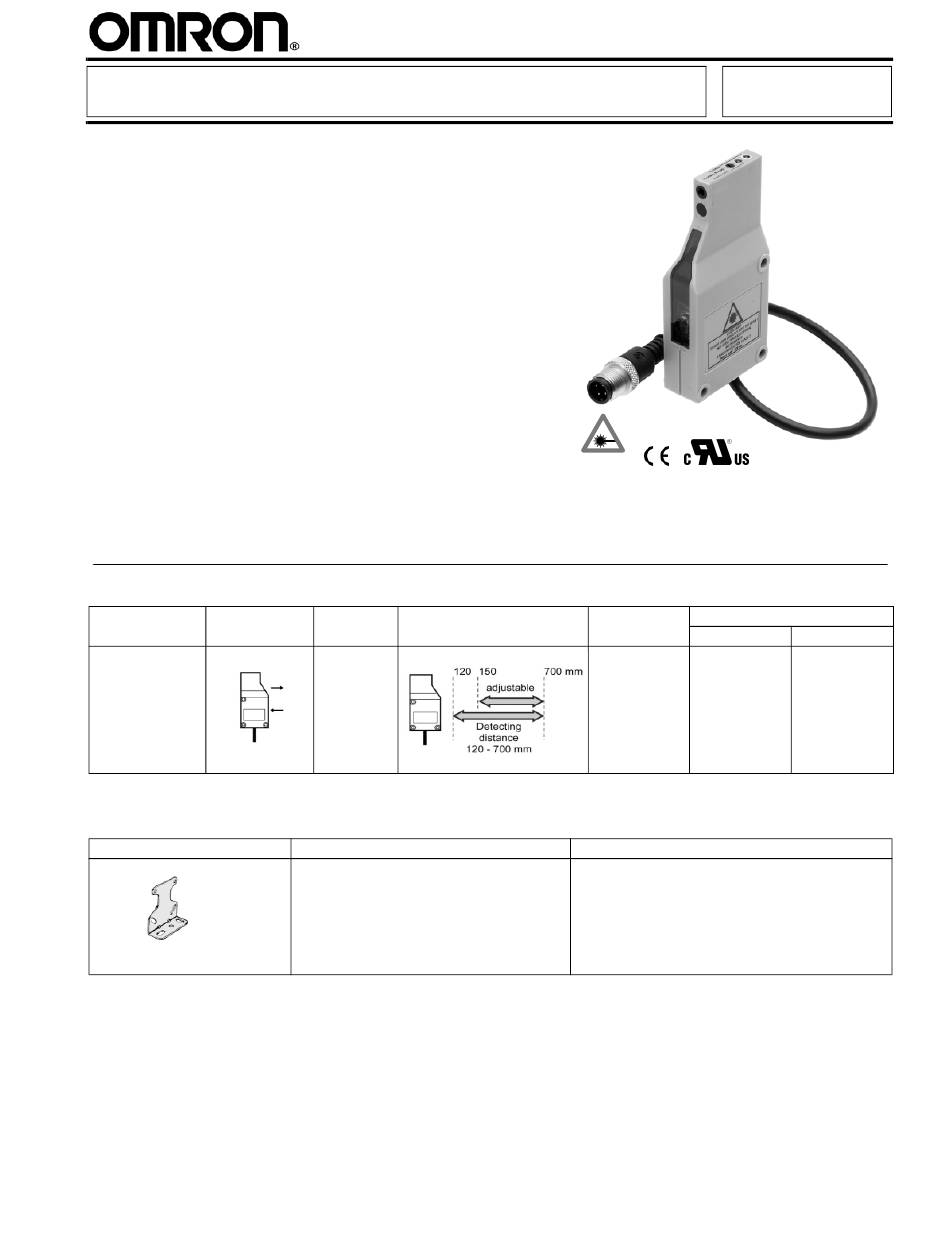

Visible Laser Sensor with a "Set-Distance" Feature
Distance-settable Photoelectric Sensor
with Background Suppression and
Visible Laser Light Beam
I
Reliable background suppression detection,
even when detecting shiny objects
I
Detection of objects regardless of color
Small objects can be detected
I
I
Sensing distance adjustable from
150 to 700 mm
I
Easy adjustment by a 6-turn potentiometer
I
Laser class II according to EN 60 825
(< 1 mW
)
eff.
I
Conformity to EN 60 947-5-2
I
Automatic Power Control of
light output (APC)
Ordering Information
Distance-Settable Photoelectric Sensor
I
Sensing method
Sensor
appearance
Laser-sensor with
background
suppression
Accessories (Order Separately)
I
Mounting Bracket
Bracket shape
Connection
Sensing distance
method
Prewired
with M12
connector
Applicable sensor model
F3C-AL 4-M1
Class II
Output function Part number
Light-ON/
Dark-ON
wire-selectable
Part number
E39-L40
2
F3C-AL
NPN output
PNP output
F3C-AL14-M1J F3C-AL44-M1J

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F3C-AL and is the answer not in the manual?

Questions and answers

Related Manuals for Omron F3C-AL

Summary of Contents for Omron F3C-AL

  • Page 1 Sensing distance Output function Part number appearance method NPN output PNP output Laser-sensor with Prewired Light-ON/ F3C-AL14-M1J F3C-AL44-M1J background with M12 Dark-ON suppression wire-selectable connector Accessories (Order Separately) Mounting Bracket Bracket shape Applicable sensor model Part number F3C-AL 4-M1 E39-L40...

  • Page 2: Application Examples

    F3C-AL Detection Through Autoclave Sight Glass Food Container Specifications Ratings Item F3C-AL 4-M1J Power supply voltage 10 to 30 VDC; including 10 % (p-p) ripple Current consumption 30 mA max. Rated sensing distance range 120 to 700 mm (white paper, 90% reflectivity, 100 x 100 mm)

  • Page 3: Engineering Data (Typical)

    F3C-AL F3C-AL Characteristics Item F3C-AL 4-M1J Light source Pulsed red light semiconductor laser Class II: < 1mWeff. / 670 nm / 5% duty cyle (Impulse time: 60 µs, Period time: 1.2 ms) Adjustment of sensing distance 6-turn-potentiometer Connection/ M12-plug / 200 mm / 4 x 0.34 mm² (PVC cable)

  • Page 4: Operation

    F3C-AL F3C-AL Operation Output Circuits NPN/PNP Selection Output Model Output Timing chart Wiring Output circuit Pin ➁ ➁ ➁ ➁ transistor configuration status (mode selection) Pin ➁ F3C-AL14-M1J Light ON connected to Pin ➀ (Light ON) not con- nected Pin ➁...
  • Page 5 F3C-AL F3C-AL Sensitivity Adjustment Item Position A Position B and C Setting Adjustment Place the target at the desired Background object Set the adjustment to halfway between procedure location and turn the adjustment knob A and C. Confirm that the STAB...
  • Page 6 F3C-AL F3C-AL Dimensions Unit: mm (inch) Sensor and Accessories Distance-Settable Photoelectric Sensor F3C-AL Mounting Bracket E39-L40 (Order Separately) 50 (1.97) 18(0.71) 40 (1.57) 8(0.31) 32(1.26) optical axis 40(1.57) 60 (2.36) 90(3.54) 58 (2.28) 42(1.65) (0.47) 22 (0.87) 37(1.46) 200(7.87) 45(1.77)
  • Page 7 ALL DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527. OMRON ON-LINE OMRON ELECTRONICS LLC OMRON CANADA, INC. One East Commerce Drive 885 Milner Avenue Global - http://www.omron.com...
