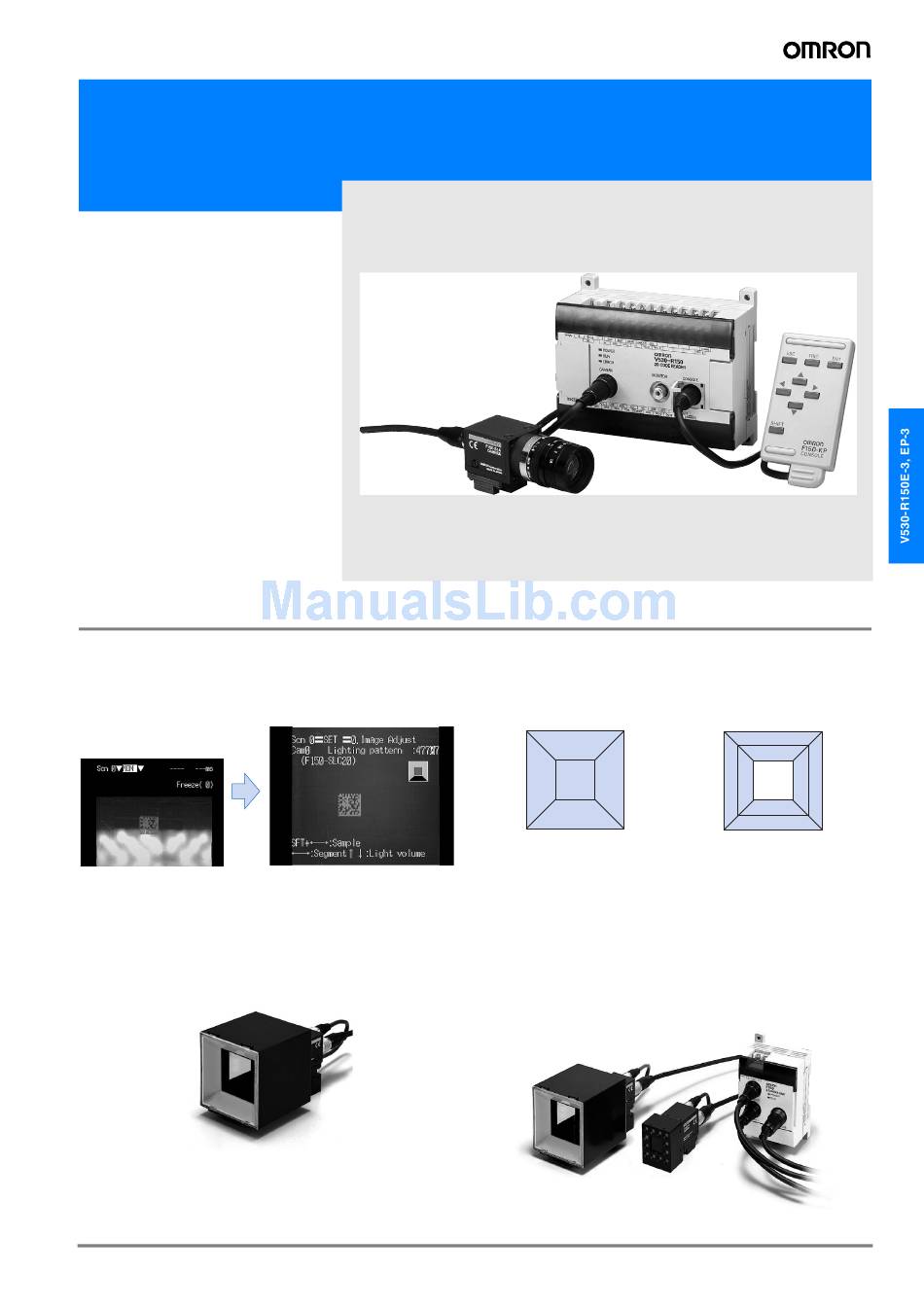

2-Dimensional Code Reader (Fixed Type)
V530-R150E-3, EP-3
Intelligent Light
Source and a Two-
camera Unit
Respond to a Wide
Variety of
Applications
Features
Intelligent Light Source
Versatile lighting control and a dome shape that minimizes exter-
nal interference provide stable images for 2-dimensional code
reading.
Ring lighting
Reduces the background effects of metal processed parts.
A Variety of Lighting Methods
The lighting direction and intensity can be changed. In addition,
coaxial lighting is available with the F150-SLC20. Optimal light-
ing methods can be set for a wide variety of workpieces.
V530-R150E-3, EP-3
F150-SLC20
(Field of vision: 20 mm)
Lighting Controlled from Menus
• The lighting block and intensity can be controlled from the Control-
Intelligent Light Source
• Because light is handled as scene data, the lighting conditions can
• The Controller manages light settings numerically, for accurate
Two-camera Unit
Two cameras can be switched by a single Controller.
The light intensity can be
set for each of five lighting
blocks, in eight steps.
2
3
1
5
Coaxial
lighting
4
ler menu. Settings can be easily changed without having to touch
the light itself.
be varied to match model changes on mixed-product lines.
reproducibility.
F150-SLC50
(Field of vision: 50 mm)
The light intensity can be
set for each of eight lighting
blocks, in eight steps.
5
1
6
2
4
8
3
7
C-75
Advertisement
Table of Contents
Related Manuals for Omron EP-3
Summary of Contents for Omron EP-3
- Page 1 Coaxial lighting Lighting Controlled from Menus • The lighting block and intensity can be controlled from the Control- Ring lighting Intelligent Light Source ler menu. Settings can be easily changed without having to touch Reduces the background effects of metal processed parts.
- Page 2 See the reading status at a glance on the reading information display. Greater positioning tolerance The finder pattern, cell recognition, reading data, etc., can all be For applications that cannot be covered by the field of view of viewed on the display. only one camera. Camera 1 field...
-
Page 3: Ordering Information
Applications From PCB level to component level From batch processing level to From sheet level to piece level wafer level Ordering Information List of Models Name Model No. Controller V530-R150E-3, EP-3 Console F150-KP Camera F150-S1A Camera Cable (3 m) F150-VS... -
Page 4: Specifications
V530-R150E-3, EP-3 Data Matrix ECC200: 10 × 10 to 64 × 64, 8 × 18, 8 × 32,12 × 26, 12 × 36,16 × 36,16 × 48 Data Matrix Old Ver. (ECC000, 050, 080, 100, 140): 9 × 9 to 25 × 25 Readable codes QR Code (Model 1, 2): 21 ×... -
Page 5: System Configuration
Refer to page B-8 concerning the F150-M09 Video use of this camera. Monitor (BNC input) Note: If the field of vision doesnot F150-VS Camera Cable match the size of the targetobject you can use an ordinary CCTV lens and lighting. -
Page 6: Lighting Methods
Lighting Methods Select the appropriate lighting method for the material of the marked object. Back Lighting Oblique Lighting Ring lighting close to the marked object Codes on transparent objects such as glass PCBs can be read by detecting the contrast between transmitted and blocked light. -
Page 7: Data Capacity
Note: 1. Maximum Data Capacity The maximum amount of data that can be stored in a code varies with the code size. In other words, if there is a large amount of data to be stored, then the code size must also be large. The maximum data capacity will also vary with the type of characters used. With a QR Code or Data Matrix, the numeric ca- pacity (numbers only) is larger than the alpha numeric capacity (numbers and letters), which is in turn larger than the Japanese Kanji (Shift JIS) capacity. - Page 8 Dimensions 37.3 Locking mecha- Focus/iris locking mechanism nism Note: Refer to the following optical graph to select the Lens and Extension Tube according to the field of view and camera mounting distance being used. Extension Tubes Model 3Z4S-LE EX-C6 A set of six Extension Tubes that are 40, 20, 10, Length 5, 1, and 0.5 mm in length respectively.
- Page 9 Lengthening the Extension Tube lowers the brightness, and increasing distance WD increases the depth of field. Note: Slight differences exist between cameras. When mounting the Lens, provide a means of adjusting the camera mounting distance. For example, to obtain a cam- era mounting distance WD of about 30 mm with a field of view of 10 mm, mount a 5-mm Extension Tube to the 3Z4S-LEC1614A.
- Page 10 Dimensions Note: All units are in millimeters unless otherwise indicated. 2-Dimensional Code Reader Console V530-R150E-3, V530-R150EP-3 F150-KP 77.6 Four, 4.5 dia. 12 dia. 12.5 2000 Two-camera Unit F150-A20 Camera Mounting holes F150-SLC20 (Camera with F150-LTC20 Intelligent Light Source) 100±0.2 (85) Two, 56±0.2...
- Page 11 V530-R150E-3, EP-3 C-85...
- Page 12 ALL DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527. Cat. No. Q12E-EN-01 In the interest of product improvement, specifications are subject to change without notice. C-86 Vision Sensors...
