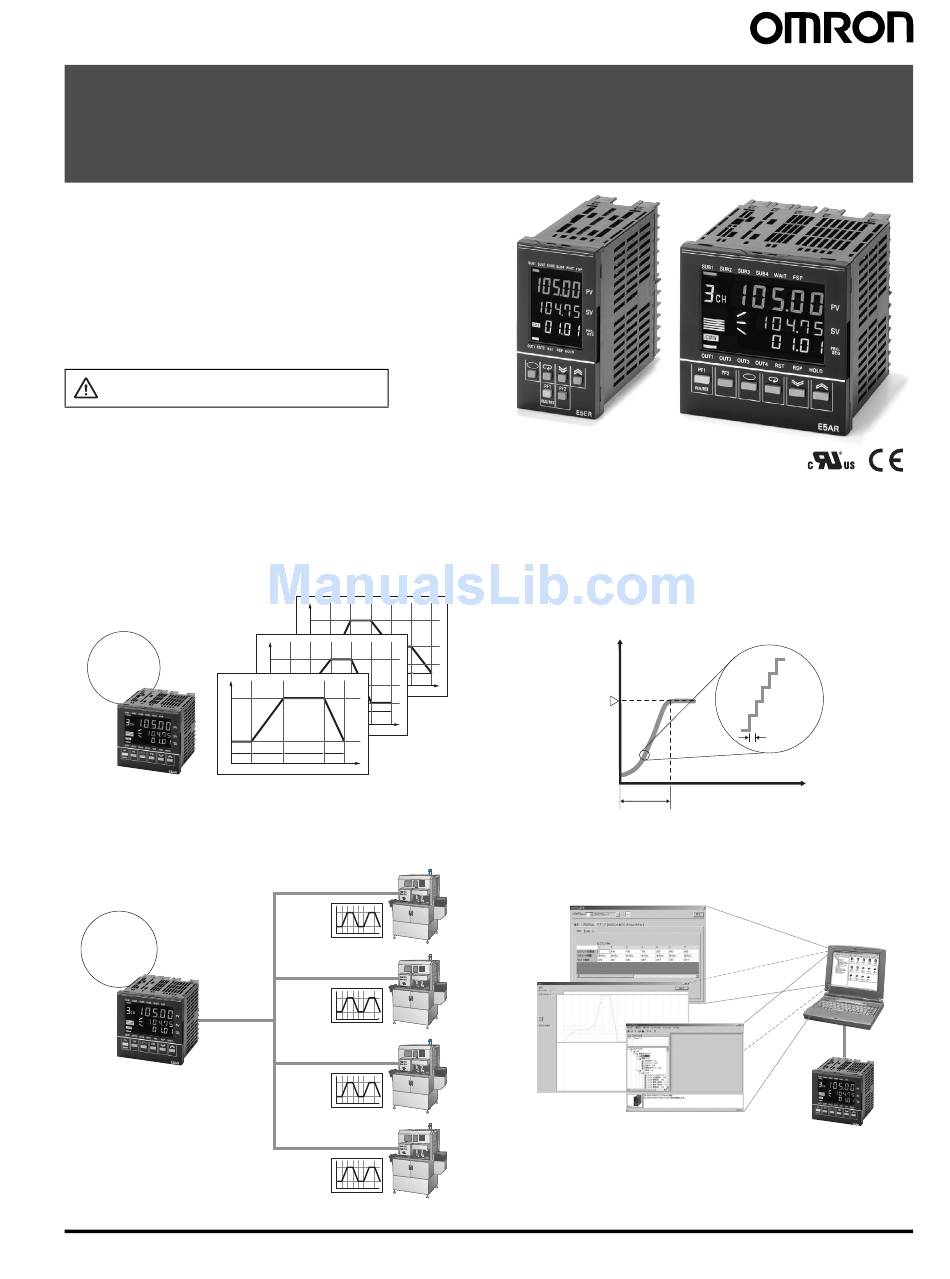

Programmable Digital Controller
E5AR-T/E5ER-T
A new High-speed, High-precision Digital
Controller that is Programmable!
• Create up to 32 programs with up to 256 segments total.
• Coordinated operation for up to four channels with one Dig-
ital Controller.
• 0.01°C; High resolution for Pt input.
• High-speed sampling at 50 ms.
Refer to "Precautions" on pages 24 and 25.
■ Features
Up to 32 Programs
You can create up to 32 programs with up to 8 segments each, or
you can create up to 8 programs with up to 32 segments each. Either
way, you get up to a total of 256 segments of programming. This fea-
ture is ideal for testing equipment to make a variety of settings.
Up To
32 Programs
SP
Segment 1
100.0
50.0
5: 00
Coordinated Operation for Up to Four
Channels with One Digital Controller
Up to four channels are supported for analog control in a compact-
sized body to contribute to downsizing control panels.
Four
Channels,
One Digital
Controller
Note: Coordinated operation
refers to a slave operating
using the same program
as the master.
SP
Segment 1
Segment 2
Segment 3
Segment 4
Segment 5
Segment 6
100.0
SP
Segment 1
Segment 2
Segment 3
Segment 4
Segment 5
Segment 6
100.0
50.0
5: 00
5: 00
5: 00
5: 00
5: 00
5: 00
70.0
Time (hours and minutes)
Segment 2
Segment 3
Segment 4
50.0
5: 00
5: 00
5: 00
5: 00
5: 00
5: 00
Time (hours and minutes)
8: 00
10: 00
5: 00
Time (hours and minutes)
Programmable Digital Controller
High-speed and High-resolution
Performance
Sample at the high speed of 50 ms for 4 channels to achieve stable
control even for items requiring high-speed response. And, the reso-
lution is 0.01 ° C for a Pt input. Temperature, humidity, and other fac-
tors for ambient testing equipment can be measured, variations
detected, and data logged at a high resolution.
SP
High-speed startup in a few seconds
Easy Settings from a Computer Using the
CX-Thermo
The CX-Thermo setting software (version 3.1 or higher) lets you set,
edit, and transfer parameters all at once.
RoHS Compliance for World-wide
Application
Available Soon: It will soon be possible to easily setup and monitor
screens online using the SAP Library.
E5AR-T/E5ER-T
High-speed
sampling
50 ms
Time
1

Advertisement

Table of Contents
loading

Related Manuals for Omron E5AR-T

Summary of Contents for Omron E5AR-T

  • Page 1 High-speed and High-resolution Performance You can create up to 32 programs with up to 8 segments each, or you can create up to 8 programs with up to 32 segments each. Either Sample at the high speed of 50 ms for 4 channels to achieve stable way, you get up to a total of 256 segments of programming.
  • Page 2 1 loop for heating and cooling control 1 loop for cascade control 1 loop for control with remote SP 1 loop for proportional control 2 auxiliary outputs, 4 event inputs, 2 relay outputs Control valve control models (open, closed) 1 loop for...

  • Page 3: Peripheral Devices

    Analog values representing temperature, SUB1 SUB2 SUB3 SUB4 WAIT flowrate, or concentration G3PB (Three-phase) Converter, digital panel meter, flowrate 240 VAC/400 VAC (15 A, 25 A, 35 A, 45 A) meter, non-contact temperature sensor, displacement sensor, etc. 4 Units Rated input voltage: PRG.

  • Page 4: Model Number Structure

    5 transistor outputs + 5 transistor outputs 9. Other FLK: CompoWay/F communications Note: Be sure to read the precautions for correct use and other precautions in the following user's manual before using the Digital Controller. E5AR/ER Programmable Digital Controller User's Manual (Cat. No. Z182) A PDF version of the user's manual can be downloaded from the following web site: OMRON Industrial Web http://www.fa.omron.co.jp/...

  • Page 5: Ordering Information

    3.) 1 current Note 1: Specify the power supply specifications when ordering. Model numbers for 100 to 240 VAC are different from those for 24 VAC/VDC. 2: These models are for 100 to 240 VAC only. 3: The outputs are transistor output.

  • Page 6: Specifications

    2: The supply voltage (i.e., 100 to 240 VAC or 24 VAC/VDC) depends on the model. Be sure to specify the required type when ordering. 3: The Controller is equipped with multiple sensor input. Temperature input or analog input can be selected with the input type setting switch. There is basic insulation between power supply and input terminals, power supply and output terminals, and input and output terminals.
  • Page 7 R- or S-type thermocouple at 200 ° C max.: ± 1.5 ° C ± 1 digit 3: “EU” (Engineering Unit) represents the unit after scaling. If a temperature sensor is used, it is either ° C or ° F. E5AR-T...

  • Page 8: Communications Specifications

    Program status output Program end output (pulse width can be set) Segment number output Program startup PV start Select from segment 1 set point, slope-priority PV start, and time-priority PV start. operation Standby Standby Operation end operation Select from resetting, continuing control at final set point, and fixed SP control.

  • Page 9: Wiring Terminals

    (Current) (Voltage) (Thermocouple) (Resistance temperature input sensor) The power supply voltage must be 100 to 240 VAC or 24 VAC/DC for the E5AR-T to comply with CE marking requirements. Note The power supply voltage must be 100 to 120 VAC or 24 VAC/DC for the E5AR-T to comply with UL requirements.
  • Page 10 (Current) (Voltage) (Thermocouple) (Resistance temperature input sensor) The power supply voltage must be 100 to 240 VAC or 24 VAC/DC for the E5AR-T to comply with CE marking requirements. Note The power supply voltage must be 100 to 120 VAC or 24 VAC/DC for the E5AR-T to comply with UL requirements.
  • Page 11 (Switched by output type setting.) (Current) (Voltage) (Resistance temperature input sensor) The power supply voltage must be 100 to 240 VAC or 24 VAC/DC for the E5AR-T to comply with CE marking requirements. Note The power supply voltage must be 100 to 120 VAC or 24 VAC/DC for the E5AR-T to comply with UL requirements.
  • Page 12 (Thermocouple) (Current) (Voltage) (Resistance temperature input sensor) The power supply voltage must be 100 to 240 VAC or 24 VAC/DC for the E5AR-T to comply with CE marking requirements. Note The power supply voltage must be 100 to 120 VAC or 24 VAC/DC for the E5AR-T to comply with UL requirements.
  • Page 13 • Recommended panel thickness is 1 to 8 mm. • Group mounting is not possible. (Maintain the specified mounting space between Controllers.) • When two or more Controllers are mounted, make sure that the surrounding temperature does not exceed the allowable operating temperature specified in the specifica- tions.

  • Page 14: Terminal Cover

    NEMA4. The time for periodic replacement depends on the operating environment. Be sure to confirm this point at your site. Consider one year a rough standard. OMRON shall not be lia- ble for the level of water resistance if the customer does not perform periodic replacement.) ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
  • Page 15 FLK: CompoWay/F communications (3 digits): (Modification type) Note: Be sure to read the precautions for correct use and other precautions in the following user's manual before using the Digital Controller. E5AR/ER Programmable Digital Controller User's Manual (Cat. No. Z182) A PDF version of the user's manual can be downloaded from the following web site: OMRON Industrial Web http://www.fa.omron.co.jp/...

  • Page 16: Inspection Results

    E5ER-TPRQ43F- (1 open, 1 closed) + 1 current Note 1: Specify the power supply specifications when ordering. Model numbers for 100 to 240 VAC are different from those for 24 VAC/VDC. 2: The outputs are transistor output. Inspection Results If an inspection report is required, it can be ordered at the same time as the Digital Controller using the following model number.
  • Page 17 Note 1: Do not use an inverter output as the power supply. (Refer to page 25.) 2: The supply voltage (i.e., 100 to 240 VAC or 24 VAC/VDC) depends on the model. Be sure to specify the required type when ordering.
  • Page 18 R- or S-type thermocouple at 200 ° C max.: ± 1.5 ° C ± 1 digit 3: “EU” (Engineering Unit) represents the unit after scaling. If a temperature sensor is used, it is either ° C or ° F. E5ER-T...
  • Page 19 Program status output Program end output (pulse width can be set) Segment number output Program startup PV start Select from segment 1 set point, gradient-priority PV start, and time-priority PV start. operation Standby Standby Operation end operation Select from resetting, continuing control at final set point, and fixed SP control.
  • Page 20 4 to 20 mA DC, 500 Ω max. 0 to 20 mA DC, 500 Ω max. (Switched by output type setting.) The power supply voltage must be 100 to 240 VAC or 24 VAC/DC for the E5ER-T to comply with CE marking requirements. Note The power supply voltage must be 100 to 120 VAC or 24 VAC/DC for the E5ER-T to comply with UL requirements.
  • Page 21 4 to 20 mA DC, 500 Ω max. 0 to 20 mA DC, 500 Ω max. (Switched by output type setting.) The power supply voltage must be 100 to 240 VAC or 24 VAC/DC for the E5ER-T to comply with CE marking requirements. Note The power supply voltage must be 100 to 120 VAC or 24 VAC/DC for the E5ER-T to comply with UL requirements.
  • Page 22 • Group mounting is not possible. (Maintain the specified mounting space between Controllers.) +0.8 • When two or more Controllers are mounted, make sure that the surrounding temperature does not exceed the allowable operating temperature specified in the specifica- tions.
  • Page 23 NEMA4. The time for periodic replacement depends on the operating environment. Be sure to confirm this point at your site. Consider one year a rough standard. OMRON shall not be liable for the level of water resistance if the customer does not perform periodic replacement.) ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
  • Page 24 ON the power. unexpected operation, resulting in minor or moderate 8. Turn OFF the power first when you need to draw out the Digital injury, or damage to the equipment. Controller. Do Not touch the terminals or the electronic compo- A malfunction in the Product may occasionally make nents, or subject them to physical shock.

  • Page 25: Service Life

    To prevent inductive noise, separate the wiring for the product's ter- minal block and connector from high-voltage, high-current power lines. Do not run the wiring parallel to or in the same cable as power lines. The influence of noise can also be reduced by using separate wiring ducts or shield lines.
  • Page 26 E5AR-T/E5ER-T Programmable Digital Controller...
  • Page 27 E5AR-T/E5ER-T Programmable Digital Controller...

  • Page 28: Warranty And Application Considerations

    CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY. In no event shall the responsibility of OMRON for any act exceed the individual price of the product on which liability is asserted. IN NO EVENT SHALL OMRON BE RESPONSIBLE FOR WARRANTY, REPAIR, OR OTHER CLAIMS REGARDING THE...
