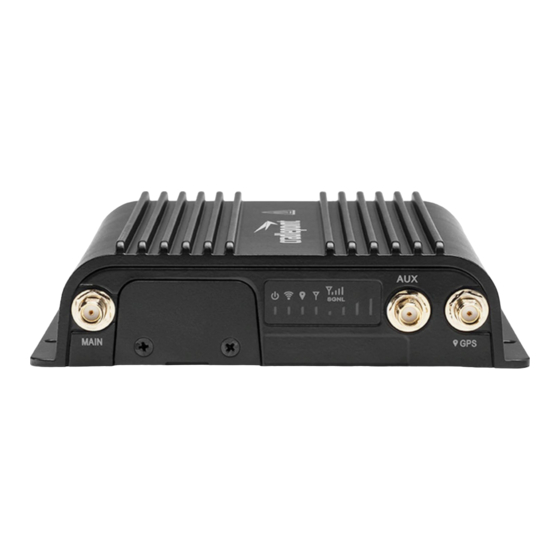

Cradlepoint IBR600C Series Quick Start Manual

Hide thumbs Also See for IBR600C Series:

Advertisement

Quick Links

Download this manual
3/27/24, 1:14 PM
Home (/s/)

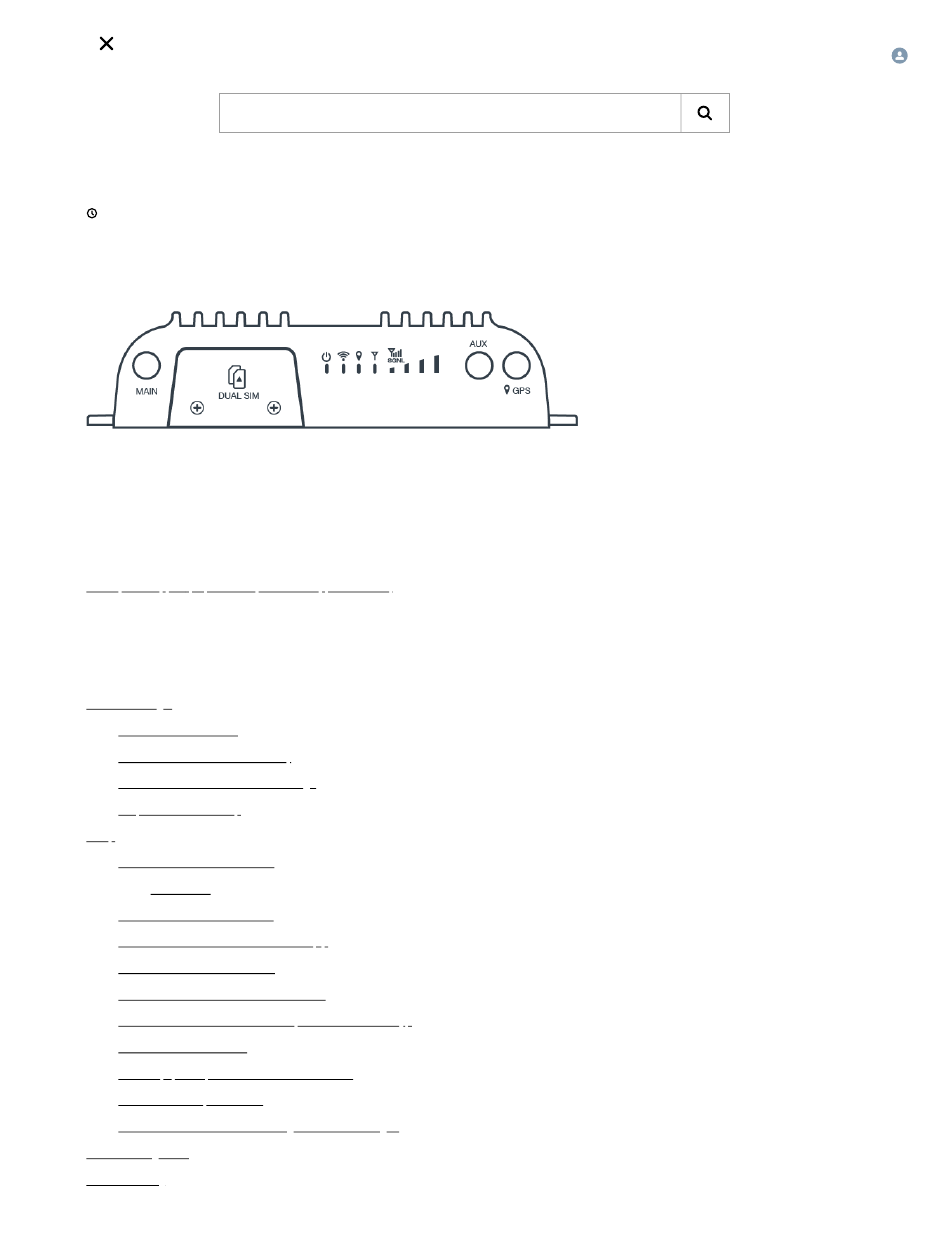

IBR600C Series Router Quick Start Guide
Oct 18, 2022
Knowledge
•
Content
IBR600C Series Router Quick Start Guide
Introduction
This document provides a brief overview of the IBR600C Series Router for IoT networks, discusses what is inside the box, and provides basic setup and
install instructions for the router.
Note: The Verify app includes many of the same instructions with an alternate order. This document supports the Verify app instructions. Use the Navigation
section below to locate the topics most applicable to troubleshooting your setup issues. For additional setup support, contact a professional installer or
Cradlepoint Support (https://cradlepoint.com/support-services).
Navigation
Click on any of the following links to quickly navigate through this document:
Before You Begin
Location Considerations
SIM Card for Wireless Connectivity
Router Communication and Data Usage
Required Tools for Setup
Setup
STEP 1: Check box for content.
Accessories
STEP 2: Remove the SIM door.
STEP 3: Insert a SIM card into SIM slot(s).
STEP 4: Reinstall the SIM door.
STEP 5: Attach the LTE cellular antennas.
STEP 6: Attach the Wi-Fi antennas (IBR600C Models only).
STEP 7: Mount the router.
STEP 8 (Optional): Connect the Ethernet cable.
STEP 9: Power up the router.
STEP 10: Activate the router through NetCloud Manager.
Understanding LEDs
Troubleshooting
https://customer.cradlepoint.com/s/article/COR-IBR600C-Series-Quick-Start-Guide
TECHNICAL SUPPORT (/s/contactsupport)
Search Technical Documentation
IBR600C Series Router Quick Start Guide
Caption
TRAINING (/s/cpu)
FORUMS (/s/forums)
DEVELOPERS (/s/developers)
1/10

Advertisement

loading
Need help?

Need help?

Do you have a question about the IBR600C Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cradlepoint IBR600C Series

Summary of Contents for Cradlepoint IBR600C Series

  • Page 1 IBR600C Series Router Quick Start Guide Introduction This document provides a brief overview of the IBR600C Series Router for IoT networks, discusses what is inside the box, and provides basic setup and install instructions for the router. Note: The Verify app includes many of the same instructions with an alternate order. This document supports the Verify app instructions. Use the Navigation section below to locate the topics most applicable to troubleshooting your setup issues.

  • Page 2: Before You Begin

    Router Communication and Data Usage The factory default configuration of the router is set to communicate with the Cradlepoint and other resources at regular intervals to access the latest NetCloud OS and modem updates, clock synchronization (NTP), and NetCloud Manager. Such communication may result in data usage and applicable charges regardless of whether the router uses a wired or wireless Internet connect.
  • Page 3 [1] Safety, Regulatory, and Warranty guide Accessories For enhanced function of the IBR600C Series IoT Router, you will need at least one activated 2FF-sized SIM card with active cellular data plan. Optional accessories to enhance your router capabilities include, but are not limited to: Additional Wi-Fi and Cellular Antennas (https://cradlepoint.com/products/cradlepoint-certified-antennas-fixed)
  • Page 4 3/27/24, 1:14 PM IBR600C Series Router Quick Start Guide STEP 4: Reinstall the SIM door. Replace the SIM cover and secure with the SIM door screws. STEP 5: Attach the LTE cellular antennas. Attach the LTE cellular (paddle) antennas to the ports marked MAIN and AUX.
  • Page 5 3/27/24, 1:14 PM IBR600C Series Router Quick Start Guide STEP 6: Attach the Wi-Fi antennas (IBR600C Models only). Attach the Wi-Fi (stick) antennas to the ports marked 2.4GHz. Hold the antenna straight and twist the base to thread onto the connector.
  • Page 6 IBR600C Series Router Quick Start Guide STEP 7: Mount the router. The IBR600C Series router may be mounted in a number of ways and should be completed by a professional installer. Refer to the following for best practices: Mark the desired mounting location on the ceiling, wall, kiosk, or vehicle using a pen or marker.
  • Page 7 3/27/24, 1:14 PM IBR600C Series Router Quick Start Guide STEP 9: Power up the router. The AC power source includes a 4-pin slot plugin to connect directly to the router. The purpose of this configuration is to allow for using a 4-wire/GPIO cable to hardwire power for DC connections or use GPIO.

  • Page 8: Understanding Leds

    NetCloud account to activate. Refer to Getting Started with NetCloud Manager (https://customer.cradlepoint.com/s/article/Getting-Started-with-NetCloud- Manager) for more information. Understanding LEDs The IBR600C series routers use LED lights to communicate various status conditions. Use the chart below to verify the status of your router after the boot up cycle. INDICATOR BEHAVIOR POWER: The Cradlepoint IBR600C series router must be powered using a 4-pin power source.

  • Page 9: Help And Support

    3/27/24, 1:14 PM IBR600C Series Router Quick Start Guide INDICATOR BEHAVIOR Blinking Green = Modem is connecting. Solid Yellow = Modem is not active. Blinking Yellow = Data connection error. No modem connection possible. Blinking Red = Modem is in the process of resetting.

  • Page 10: Terms Of Service

    3/27/24, 1:14 PM IBR600C Series Router Quick Start Guide Terms of Service Terms of Service &License Agreement (https://cradlepoint.com/about-us/terms-of-service/) Privacy Policy (https://cradlepoint.com/privacy-policy/) GDPR Privacy Policy (https://cradlepoint.com/about-us/gdpr-privacy-policy/) IBR600C IoT Router Models This document applies to the following IBR600C models: CRADLEPOINT IBR600C-150M-B-EU: MODEL S5A806A...
