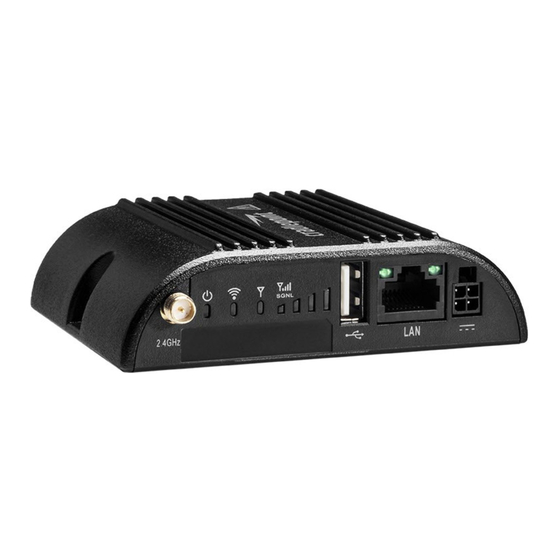

Cradlepoint IBR200 Quick Start Manual
  1. Manuals
  2. Brands
  3. Cradlepoint Manuals
  4. Network Router
  5. IBR200
  6. Quick start manual

Cradlepoint IBR200 Quick Start Manual

Iot router
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
3/27/24, 1:13 PM
Home (/s/)
IBR200 IoT Router Quick Start Guide
Mar 24, 2023
Knowledge
•
Content
IBR200 IoT Router Quick Start Guide
Introduction
This document provides a brief overview of the IBR200 router, discusses what's inside the box, and provides basic setup and installation instructions.
Navigation
Use the following links to quickly navigate through this document
Before You Begin
Location Considerations
SIM Card for Wireless Connectivity
Required Tools for Setup
Setup
STEP 1: Check box for content.
STEP 2: Open the SIM cover.
STEP 3: Insert an active 2FF-sized SIM.
STEP 4: Close and secure the SIM slot cover.
STEP 5: Attach the LTE cellular antennas.
STEP 6: Attach the Wi-Fi antenna.
STEP 7: Mount the router.
STEP 8: Connect the Ethernet cable.
https://customer.cradlepoint.com/s/article/COR-IBR200
TECHNICAL SUPPORT (/s/contactsupport)
Search Technical Documentation
IBR200 IoT Router Quick Start Guide
Caption
TRAINING (/s/cpu)
FORUMS (/s/forums)
DEVELOPERS (/s/developers)
1/9

Advertisement

loading
Need help?

Need help?

Do you have a question about the IBR200 and is the answer not in the manual?

Questions and answers

Related Manuals for Cradlepoint IBR200

Summary of Contents for Cradlepoint IBR200

  • Page 1 IBR200 IoT Router Quick Start Guide Introduction This document provides a brief overview of the IBR200 router, discusses what's inside the box, and provides basic setup and installation instructions. Navigation Use the following links to quickly navigate through this document...

  • Page 2: Before You Begin

    SIM Card for Wireless Connectivity A wireless broadband data plan must be added to your Cradlepoint IBR200 series branch router for wireless broadband connectivity. Wireless broadband data plans are available from network operators such as Verizon, AT&T, Telstra, etc. The SIM card must be activated and provisioned by the network operator.
  • Page 3 3/27/24, 1:13 PM IBR200 IoT Router Quick Start Guide STEP 3: Insert an active 2FF-sized SIM. Insert an activated 2FF-sized SIM card into the SIM slot (contacts down, notch in). The SIM card will click into place. Note: To remove, depress the SIM card.
  • Page 4 3/27/24, 1:13 PM IBR200 IoT Router Quick Start Guide STEP 5: Attach the LTE cellular antennas. Install the LTE cellular (paddle) antennas on the MAIN and AUX ports. Hold the antenna straight and twist the base to thread onto the connector.
  • Page 5 Use wall anchors to ensure the endpoint is securely mounted. STEP 8: Connect the Ethernet cable. Connect the Ethernet cable to the port marked LAN on the back of the IBR200. Connect the other end to your cable modem. https://customer.cradlepoint.com/s/article/COR-IBR200...
  • Page 6 Refer to the Understanding LEDs section of this guide for more information about LED indicator status. Step 10: Active the router in NetCloud Manager. Activating your Cradlepoint router requires logging into your NetCloud Manager account. Refer to Getting Started with NetCloud Manager (https://customer.cradlepoint.com/s/article/Getting-Started-with-NetCloud-Manager) for more information.

  • Page 7: Understanding Leds

    IBR200 IoT Router Quick Start Guide Understanding LEDs The IBR200 router uses LED lights on the front panel to communicate various status conditions. Use the table below to verify the status of your router after the 1-minute bootup cycle. STATUS...

  • Page 8: Troubleshooting

    3/27/24, 1:13 PM IBR200 IoT Router Quick Start Guide STATUS BEHAVIOR INDICATOR 4 Blinking Bars = SIM door is not installed, modem is off. EMBEDDED MODEM: Indicates connection status for the embedded (internal) modem. No Light = Modem is not connected.
  • Page 9 Terms of Service Terms of Service &License Agreement (https://cradlepoint.com/about-us/terms-of-service/) Privacy Policy (https://cradlepoint.com/privacy-policy/) GDPR Privacy Policy (https://cradlepoint.com/about-us/gdpr-privacy-policy/) Return to top (https://cradlepoint.lightning.force.com/lightning/r/Knowledge__kav/ka93t000000PCidAAG/view#Nav) IBR200 Router Models This document applies to the following IBR200 models: CRADLEPOINT IBR200-10M-VZ S3A748A CRADLEPOINT IBR200-10M-B-AT S3A749A CRADLEPOINT IBR200-10M-C-SP S3A838A...
