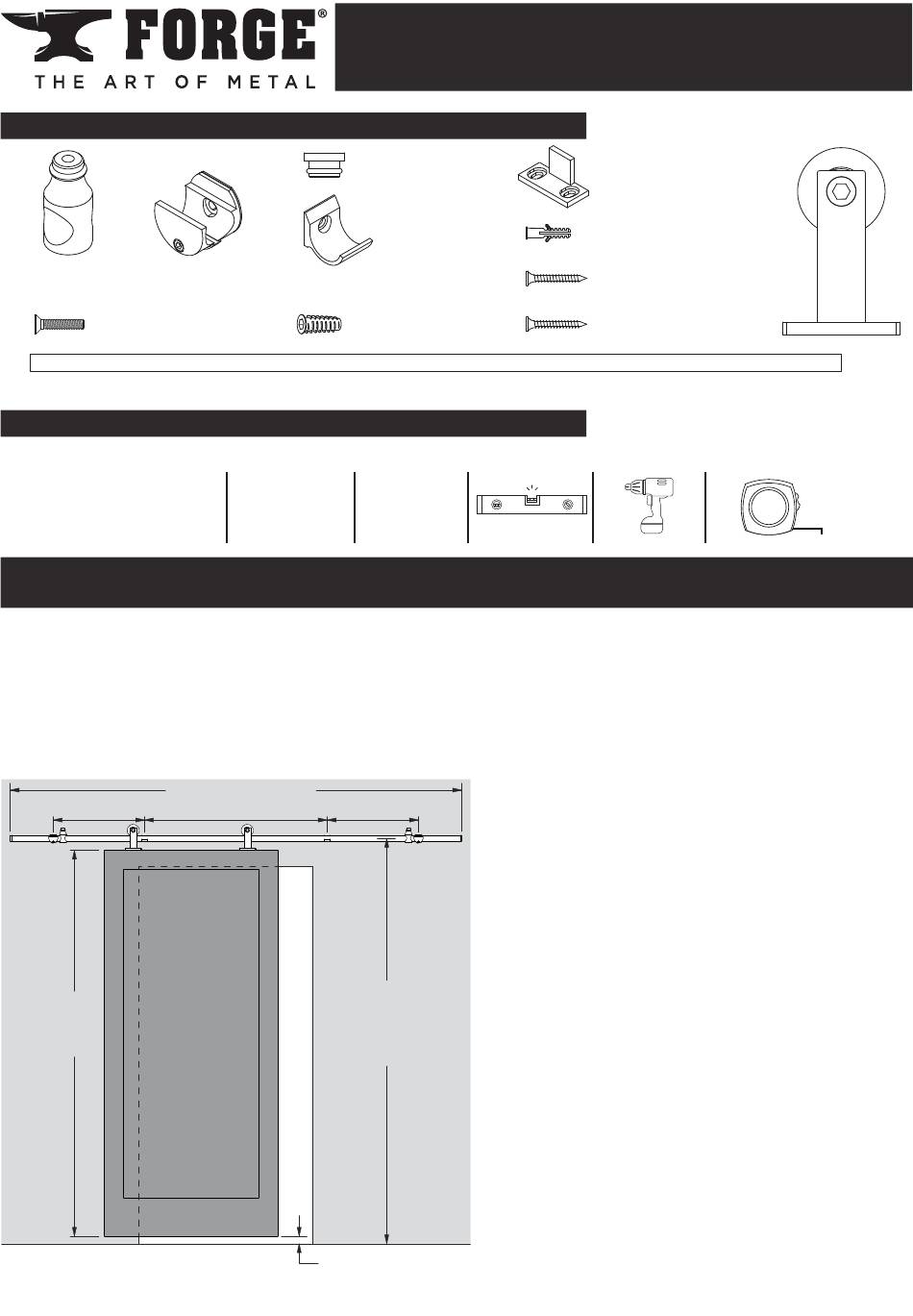

Parts Included
2
2
Door Stop
Rail Clamp
SS-10.1199
SS-10.1201
4
Trolley Screw (M6 x 35)
SS-10.1198
1
Rail
SS-10.1193
Recommended Tools
Drill Bit
3/32"
1/4"
5/32"
5/16"
● READ ALL INSTRUCTIONS AND CHECK PARTS BEFORE STARTING INSTALLATION
Planning
● RETAIN ALL PACKING MATERIALS UNTIL INSTALLATION IS COMPLETE
NOTE: This kit is best suited for doors up to 1-
150 pounds.
Before installing the Rail, identify secure points to attach the Rail.
For most wall installations, it is necessary that the Spacer Screws are secured to wall studs.
79-1/8" [2010mm]
A
Door
Height
(H)
A - 16" [406mm]
B - 32" [813mm]
Barn Door Rail Kit
Installation Manual
End Cap
2
SS-10.1202
Spacer
2
SS-10.1200
4
M6 Threaded Insert
SS-10.1229
Allen Wrench
Driver Bit
3mm
#8 Phillips
4mm
6mm
B
A
(H)
plus
2-
1
/
"
2
[63.2mm]
3
/
" [9.5mm] Gap
8
2
Door Guide
SS-10.1013
Floor / Wall Anchor
8
SS-10.1011
1-1/4" Screw - Black
4
SS-10.1012
4
Spacer Screw (Stainless)
SS-10.1203
2'-3' Level
Power Drill
3
/
" thick, up to 36" wide, and no more than
8
IMPORTANT: If all FOUR Spacer Screws
cannot be secured to wall studs or
other structural points, DO NOT
INSTALL THIS RAIL KIT.
NOTE: Construction varies. It may be
necessary to adjust the location of the
Spacers and Rail Clamps to allow the
Spacer Screws to attach to structural
members.
NOTE: The Trolleys will not travel past the
Rail Clamps.
4310490
W-KIT-3-SS-1PC
Stainless Steel
2
Charlotte
Trolley
SS-10.1177
Tape Measure
12'
Advertisement
Related Manuals for Forge W-KIT-3-SS-1PC
Summary of Contents for Forge W-KIT-3-SS-1PC
- Page 1 Barn Door Rail Kit 4310490 W-KIT-3-SS-1PC Installation Manual Stainless Steel Parts Included End Cap SS-10.1202 Door Guide Charlotte SS-10.1013 Trolley SS-10.1177 Floor / Wall Anchor Spacer SS-10.1011 SS-10.1200 Door Stop Rail Clamp 1-1/4” Screw - Black SS-10.1199 SS-10.1201 SS-10.1012 Trolley Screw (M6 x 35)
- Page 2 Planning (continued) Door Trolley Top Door to Bypass Trolley Door Thickness to Rail Center Rail Center Clearance Clearance Clearance (1) (3) ” ” ” ” ” ” 1” ” ” ” ” ” Allow at least 1” clearance above the trolley. The nominal distance with the door hung to run vertical and the wall straight and plumb.
- Page 3 2 - Mount the Rail (Continued) Use a Spacer Screw to attach one Base Plate and Base Washer at one of the outermost pilot holes on one side. Repeat process for the opposite outermost pilot hole. Insert remaining Spacer Screws through Spacers and drive into pilot holes.
- Page 4 4 - Install Door Guides and Secure Door Stops Locate the Door Guides on either side of the door, as close to the doorway as possible. See the diagram for proper spacing. ” Screw Door If the floor is not solid Thickness (T) wood, it may be Floor...
