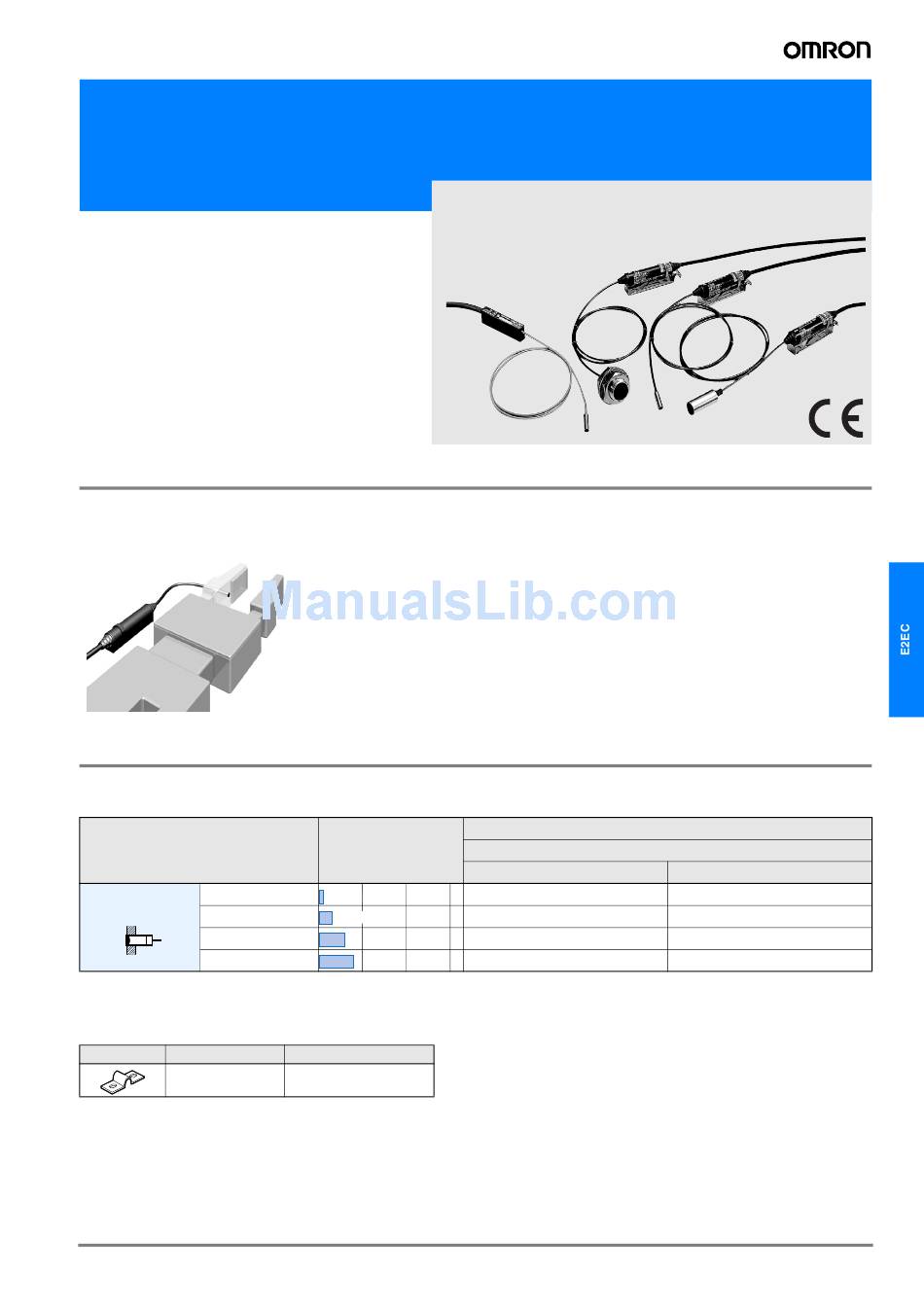

Ultra Small Inductive Proximity Sensor
E2EC
Subminiature Sensor
for demanding mounting
conditions
• 3 mm dia sensing head for most demanding mounting
conditions
• 18 mm long ultra short M12 size housing
Applications
Check of a robot hand chucking
The proximity sensor which can be attached to a
moving part like a chucking robot.
E2EC
Ordering Information
Sensors
DC 2-wire
Shape
3-mm dia. *
Shield
5.4-mm dia. *
8-mm dia. *
M12*
Note: A different frequency type is available. (E2EC-@@5; e.g.E2EC-CR8D15)
Accessories (Order Separately)
Mounting Brackets
Shape
Model
Y92E-F5R4
E2EC
Sensing distance
0.8mm
1.5mm
3mm
4mm
Applicable models
E2EC-C1R5D@
Model
Operating status
NO
E2EC-CR8D1
E2EC-C1R5D1
E2EC-C3D1
E2EC-X4D1
NC
E2EC-CR8D2
E2EC-C1R5D2
E2EC-C3D2
E2EC-X4D2
D-107
Advertisement
Table of Contents
Related Manuals for Omron E2EC
Summary of Contents for Omron E2EC
- Page 1 Ultra Small Inductive Proximity Sensor E2EC Subminiature Sensor for demanding mounting conditions • 3 mm dia sensing head for most demanding mounting conditions • 18 mm long ultra short M12 size housing Applications Check of a robot hand chucking The proximity sensor which can be attached to a moving part like a chucking robot.
- Page 2 Mounting bracket, instruction manual * The response frequencies for DC switching are average values measured on condition that the distance between each sensing object is twice as large as the size of the sensing object and the sensing distance set is half of the maximum sensing distance.
- Page 3 Brass Brass Aluminum Aluminum Copper Brass Copper Aluminum Copper Side of sensing object d (mm) Side of sensing object d (mm) Side of sensing object d (mm) E2EC-X4D1 Mild steel Stainless steel (SUS304) Brass Aluminum Copper Side of sensing object d (mm)
-
Page 4: Output Circuit Diagram
Brown Load Operation indicator (red) Main Control output circuit Blue Non-sensing area Sensing area Proximity sensor Note: The load can be connected to Sensing either the +V or 0-V side. object E2EC-CR8D2 E2EC-C1R5D2 E2EC-C3D2 E2EC-X4D2 Operation indicator (red) Control output... -
Page 5: Correct Use
30 (15) 16 (8) E2EC-X4D@ 40 (20) 24 (12) Note: The above values in parentheses are applicable when using two sensors with different frequencies. d dia. Mounting • Refer to the following table for the torque and tightening ranges applied to mount unthreaded E2EC-C models. -
Page 6: Dimensions (Unit: Mm)
Indicator * 2 10.3 24.2 Two, 3.2 dia. mounting holes * 1. The cable can be extended up to 200 m in an independent metal conduit. Mounting bracket * 2. D1 type: Operation indicator (red), Setting indicator (green) E2EC-C3D@ With Mounting Blanket Attached... -
Page 7: Mounting Brackets
Mounting Brackets ± 24.2 ± 2-R1.6 3.2 dia. Material: Stainless steel (SUS301) Note: It is attached to the DC 2-wire sensors. 34.5 ± Accessories (Order Separately) Mounting Brackets Y92E-F5R4 R2.6 Material: Stainless steel (SUS304) Note: E2EC-C1R5D applicable to head of @... - Page 8 ALL DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527. Cat. No. D09E-EN-01 In the interest of product improvement, specifications are subject to change without notice. D-114 Inductive Sensors...
