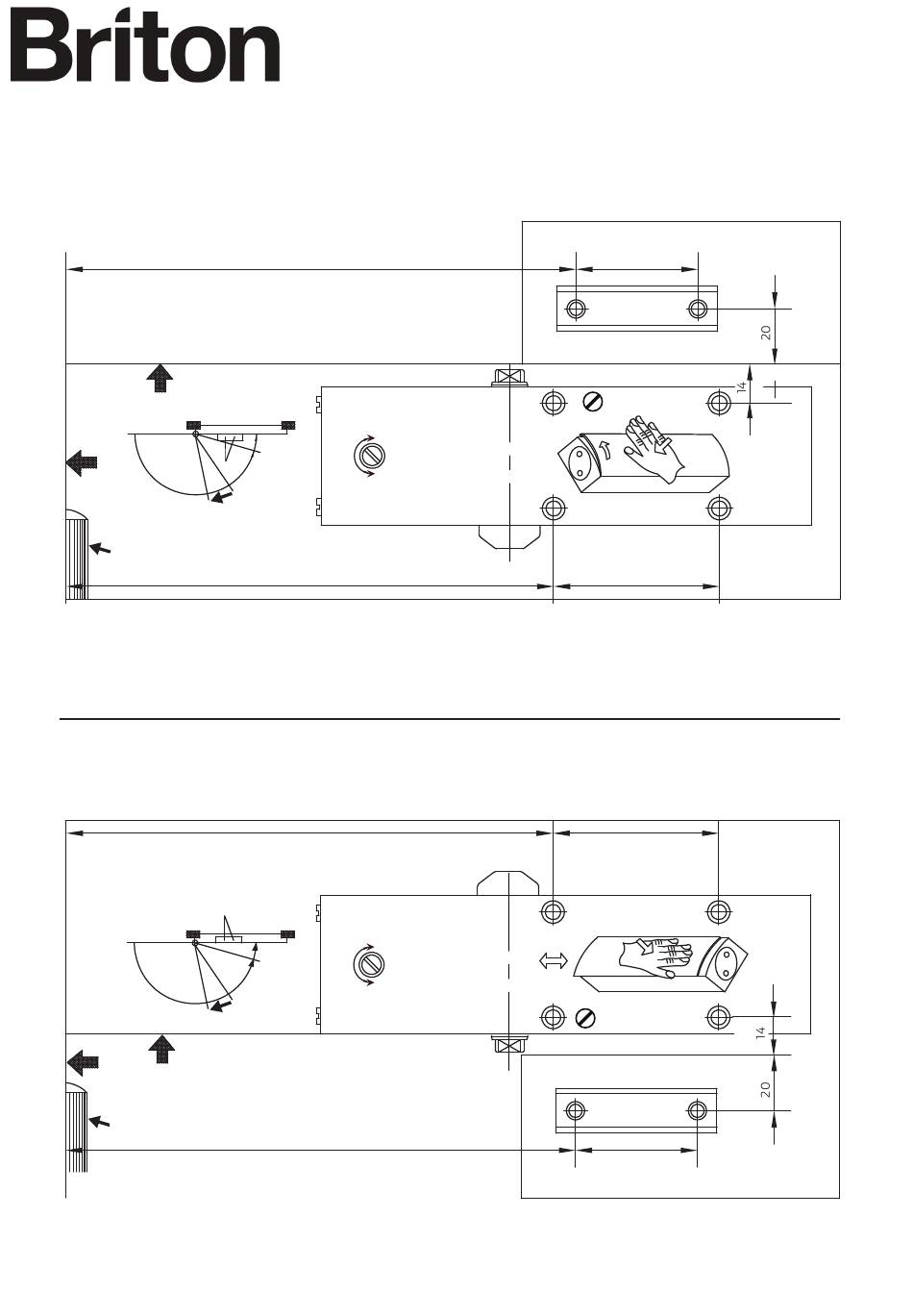

Briton 200 Series Instructions

Right Hand Installation
Hinge-pull side mounted
Top edge of door
1
BC
Hinge
1 -
Closing speed
2 -
Latching speed
3 -
Backcheck
Top jamb-push side mounted
1
BC
Top edge of door
Hinge
1 -
Closing speed
2 -
Latching speed
3 -
Backcheck
Door Closer - 200 Series
Instructions for Regular Closer Installation
183
2
Direct fixing
Slow
2
Fast
1
175
Notes
Backcheck valve can not be closed completely.

Don't use external force when the door is closing,

otherwise the door closer will be damaged.
Use indicated measurements to mark fixing points.

175
2
Direct fixing
Fast
2
Slow
1
183
Notes
Backcheck valve can not be closed completely.

Don't use external force when the door is closing,

otherwise the door closer will be damaged.
 Use indicated measurements to mark fixing points.
45
Arm pinion position
3
Clips
on
60
60
Remove
3
Arm pinion position
45
