Briton 5000 Instruction

10905 IN-800-MI-01
Determination
of Door Hand
Right
0°
A.
Spring Strength
Closer Model # Max. Door Width Max. Door Weight
Size
5003 3 950mm 80KG
5004 4 1100mm 100KG
Top pivot
3
16.5
Jamb
Jamb
16.5
Left
B. Maintenance (Annually):
Max. Opening Angle
Check door closer closes the door correctly and
adjust if necessary.
130°
Tighten any screw that may have become loose.
130°
167
50 46 46 46
35
M5x23
Countersunk Screw
50
Cement Case
306
167
50 46 46 46
35
Fast
Slow
M5x6 SCREW
324
C. Important warning:
It contains a pre-stressed spring which could
be dangerous, so under no circumstances
attempt to dismantle the closer.

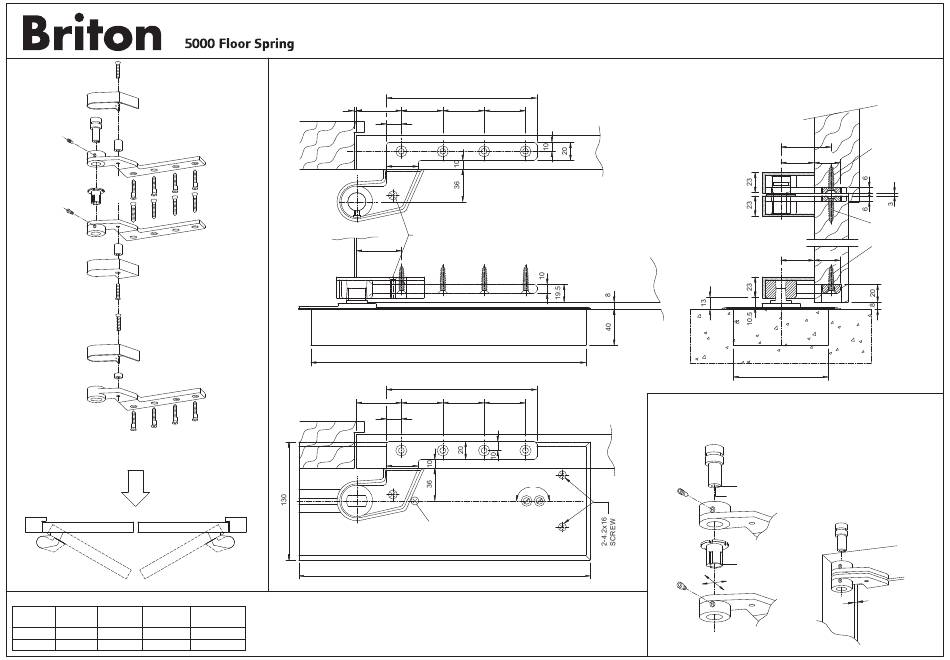

FIXING INSTRUCTION FOR SINGLE ACTION
WOOD DOOR AND ACCESSORIES
Wood Door
Door
108
Additional adjustments:
Support the weight of the door with a wedge,and loosen
the machine screw in the door portion of the top centre.
Rotate the bushing as necessary,and then re-secure
with the screw.The screw must always locate into a
groove in the bushing.
Turn the neutral (0) position to
SW2.5
0-Stellung
A = pulls door into frame
SW6 B = increases gap at hanging stile (T)
C = pulls door out of frame
0-Stellung
C
SW2.5
0
B
A
56
4-1/4"x1-1/4"
36 30 Wooden Screw
4-1/4"x1-1/4"
Wooden Screw
4-1/4"x1-1/4"
36 30 Wooden Screw
-1mm
+2mm
+1mm
T
