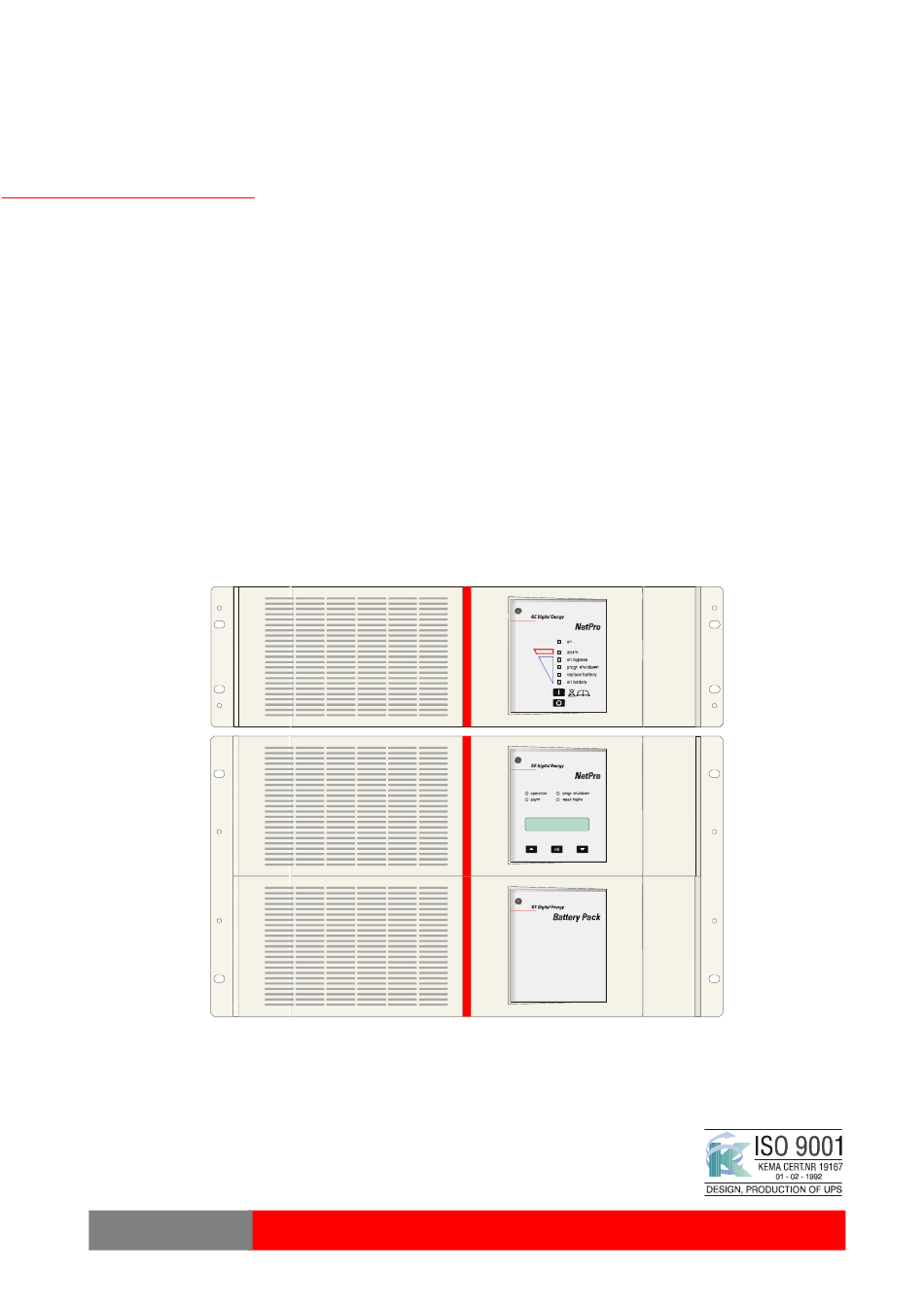

g
GE Digital Energy
Product Description
NetPro 19"
NetPro 19"
NetPro 19"
NetPro 19"
On-Line Rack-mount
Uninterruptible Power Supply
2000, 3000 VA
Manufactured by:
GE Digital Energy
General Electric Company
CH – 6595 Riazzino (Locarno)
Switzerland
NetPro 19" UPS
Technology for the Digital World.
Telephone +41 (0)91 / 850 51 51
Fax
+41 (0)91 / 850 51 44
Website
www.gedigitalenergy.com
ver 0206 - GB
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GE NetPro 19
Summary of Contents for GE NetPro 19
- Page 1 Manufactured by: GE Digital Energy General Electric Company Telephone +41 (0)91 / 850 51 51 CH – 6595 Riazzino (Locarno) +41 (0)91 / 850 51 44 Switzerland Website www.gedigitalenergy.com NetPro 19" UPS Technology for the Digital World. ver 0206 - GB...
-
Page 2: Table Of Contents
Data subject to change without prior notice. All brands and product names are Trademarks or Registered Trademarks of their respective owners. Reproduction only upon written consent by GE. 1/14 LX: PRD_NPE_19X_2K0_3K0_2GB_0206 01-06-02 GE DE NetPro 19” 2000-3000 UPS: product description... -
Page 3: Introduction
Principles of Operation The NetPro 19” UPS stores electric energy in batteries housed in the unit. This allows the UPS to supply output power even when the incoming mains power is cut off completely. Energy is stored as Direct Current (DC), while input and output energy are Alternating Current (AC) in sine wave form. -
Page 4: Mains Failure
FRONT PANEL INTERFACE Figure 2 Block diagram of the NetPro 19”, mains failure In the event of an extended mains failure, the output converter will stop when the battery energy has been used up. At this point, the UPS is no longer able to power the connected equipment. -
Page 5: External Description
GE Digital Energy 3 - External Description Front and Rear Panel Figure 4 Front panel NetPro 19” 3000 (2000VA model is without lower battery compartment) Figure 5 Rear panels NetPro 19” 2000 (top) and NetPro 19" 3000 (bottom) FRONT REAR... - Page 6 Output frequency* 50 / 60 Hz 50 Hz Restore defaults* UPS functions, ranges and default settings * Restore defaults: restores the default settings except the settings marked with * 5/14 LX: PRD_NPE_19X_2K0_3K0_2GB_0206 01-06-02 GE DE NetPro 19” 2000-3000 UPS: product description...
-
Page 7: Enclosure
635 x 560 x 560* Depth required in 19" rack (mm) 420 (without connectors) Battery module (hxwxd, mm) 133.5 (3HU) x 450 (19”) x 440 * The NetPro 19” 3000 is shipped with 2 seperately packed battery drawers on one pallet. Weight Weight (kg) -
Page 8: Electrical Specifications
EN 50091-1-1; EN 60950; IEC 950 Electromagnetic compatibility EN 50091-2; EN 50081-1 + EN 50082-1; IEC 801-5: 6kV Note: The NetPro 19" UPS is intended for use in normal domestic and office situations (see Safety: EN 50091-1-1) 7/14 LX: PRD_NPE_19X_2K0_3K0_2GB_0206 01-06-02... -
Page 9: Performance Characteristics
Runtimes (ratings given for 25°C) NetPro 19”model 2000 3000 Watts runtime in minutes 1200 1800 Units connected to battery cabinets will have longer runtimes. See section 8.5. 8/14 LX: PRD_NPE_19X_2K0_3K0_2GB_0206 01-06-02 GE DE NetPro 19” 2000-3000 UPS: product description... -
Page 10: Alarm Conditions
Progr.outlet off (NetPro 3/4k) ● Input error ● Weak mains Note: By using ComConnect, additional conditions can be monitored and signals include written screen messages (see section 6, Communications Port). 9/14 LX: PRD_NPE_19X_2K0_3K0_2GB_0206 01-06-02 GE DE NetPro 19” 2000-3000 UPS: product description... -
Page 11: Overload Capability
Minimises need for battery operation High voltage protection Above the maximum input voltage (264Vac), the NetPro 19” will protect itself and the load by disconnecting the mains and switching to battery operation. Reducing the mains voltage will recover the normal situation. If the mains voltage rises above 312Vac the NetPro shuts down immediately and must be restarted manually. - Page 12 Automatic (quick) battery test The NetPro 19” UPS conducts automatic battery tests to ensure that the batteries and the wiring are healthy and able to support power failures. The tests are executed 5 hours after starting up or return of mains, and every 30 days.
-
Page 13: Communications Port: Comconnect
6 - Communications Port: ComConnect Principles of Operation All models in the NetPro 19” series are equipped with a communications port, the ComConnect, located at the back of the unit. The ComConnect is a plug-in interface port (9-pin, Sub-D, male) which enables advanced communication between the UPS and the computer (interface kit required). -
Page 14: Batteries
Interface kits (cables and/or software) are available for operating systems supporting JAVA and most commonly used network operating systems, including Novell, UNIX, VMS, Windows, IBM AS/400, IBM OS/2, LINUX. Please contact your dealer for specific information. 13/14 LX: PRD_NPE_19X_2K0_3K0_2GB_0206 01-06-02 GE DE NetPro 19” 2000-3000 UPS: product description... -
Page 15: Dc-Extension Cables
UPS. Subsequently connect the unit to a wall outlet and recharge the batteries for 24 hours: if the storage temperature is within -20 and +30°C: every 3 months, if the storage temperature is within -20 and +45°C: every month. 14/14 LX: PRD_NPE_19X_2K0_3K0_2GB_0206 01-06-02 GE DE NetPro 19” 2000-3000 UPS: product description...
