11. Technical Data

11.1.1 Control Unit
Serial Number ...................... As per label on rear of Control Unit
Electrical Supply ................................ 220-240VAC, 50/60Hz or
Power Rating ..................................... 7.5-10VA (220-240VAC),
Fuses .................................................................... TA1H 250V
Protection Against Shock .............................................. Class 2
Noise Level ................................................... Approx. 30 dB (A)
Dimensions ................................................ 245 x 160 x 95mm
Weight ........................................................................... 1.7kg
Service Interval ................................... 12 months / 8760 hours
Expected Life ............................................................... 5 years
Shelf Life of Parts ......................................................... 5 years
11.1.2 Mattress
Serial Number ........................ Label on inside of mattress cover
Number of Air Cells .................. 14 Air Cells / 1 Static Foam Cell
Dimensions ............................. 1980 x 880 x 150mm (Nominal)
Weight ......................................................................... 13.3kg
Expected Life of Mattress .............................................. 5 years
Shelf Life of Mattress Parts ........................................... 5 years
12. Optimum Conditions
(Applies to mattress and Control Unit)
12.1 Environmental Conditions for Use
Transport ......................................................... -25°C - +70°C
Storage ........................................................... -25°C - +70°C
Usage ............................................................... +5°C - +40°C
Humidity ............................................................... 10% - 93%
Atmospheric Pressure ................................. 700hPa - 1060hPa
Operational Altitude .................................................... ≤2000m
12.2 Exposure
Exposure to direct sunlight, dust, lint and general debris is not
considered to be an issue with the Mercury Advance System.
18
DYNA-FORM MERCURY ADVANCE
100-120VAC, 50/60Hz
5.5-9VAC (100-120VAC)
DHG-HEALTHCARE.COM

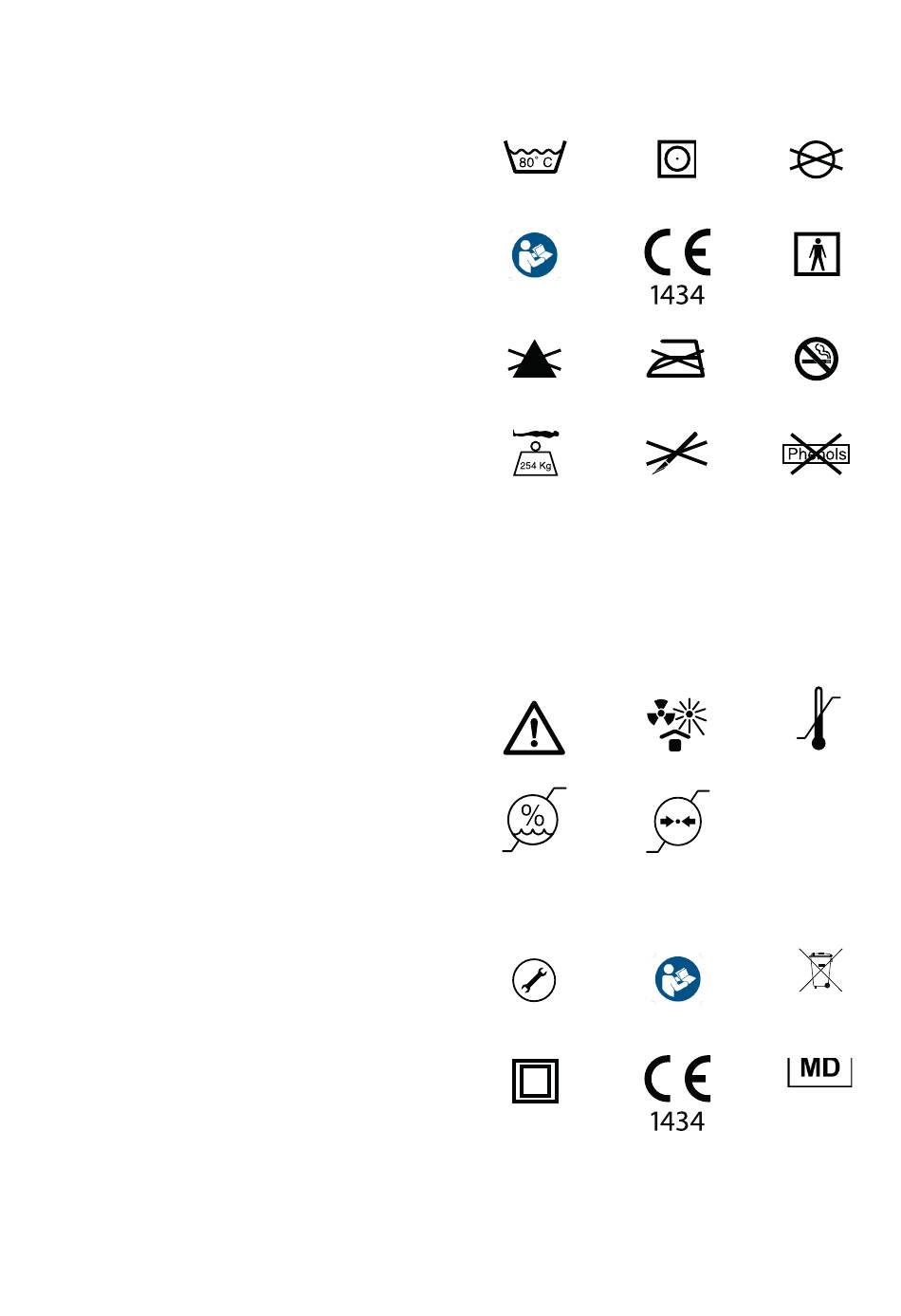

13. Symbols Guide

Mattress Symbols
WASH AT 80°C TUMBLE DRY ON LOW
REFER TO
USER MANUAL
DO NOT BLEACH
MAXIMUM USER WEIGHT
LIMIT 254KG / 40 STONE SHARP INSTRUMENTS
WARNING
THIS IS A STATEMENT THAT
ALERTS THE USER TO THE
POSSIBILITY OF SERIOUS
INJURY OR OTHERWISE
ADVERSE REACTIONS WITH THE
USE OR MISUSE OF THE DEVICE
General Symbols
PROTECT FROM HEAT AND
CAUTION RADIOACTIVE SOURCES
HUMIDITY ATMOSPHERIC PRESSURE
LIMITATION
Control Unit Symbols
SERVICE
REQUIRED
DOUBLE INSULATED
CLASS II
IP: INGRESS PROTECTION
2: PROTECTION AGAINST FINGERS OR OTHER OBJECTS NOT GREATER
THAN 80MM IN LENGTH AND 12MM IN DIAMETER
2: PROTECTION AGAINST FALLING DROPS OF WATER, IF THE CASE IS
DISPOSED UP TO 15° FROM VERTICAL
DO NOT DRY CLEAN
TYPE BF
APPLIED PART
DO NOT IRON NO SMOKING
DO NOT USE
DO NOT USE PHENOL
CAUTION
THIS IS A STATEMENT THAT
ALERTS THE USER TO THE
POSSIBILITY OF A PROBLEM
WITH THE SYSTEM ASSOCIATED
WITH ITS USE OR MISUSE
TEMPERATURE
LIMITATION
LIMITATION
DO NOT DISPOSE OF WITH
REFER TO HOUSEHOLD WASTE. PLEASE
USER MANUAL REFER TO DHG WEBSITE
MEDICAL DEVICE
IP22
