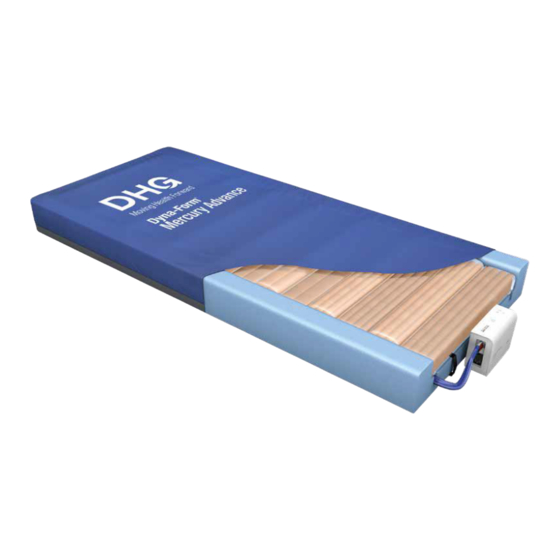

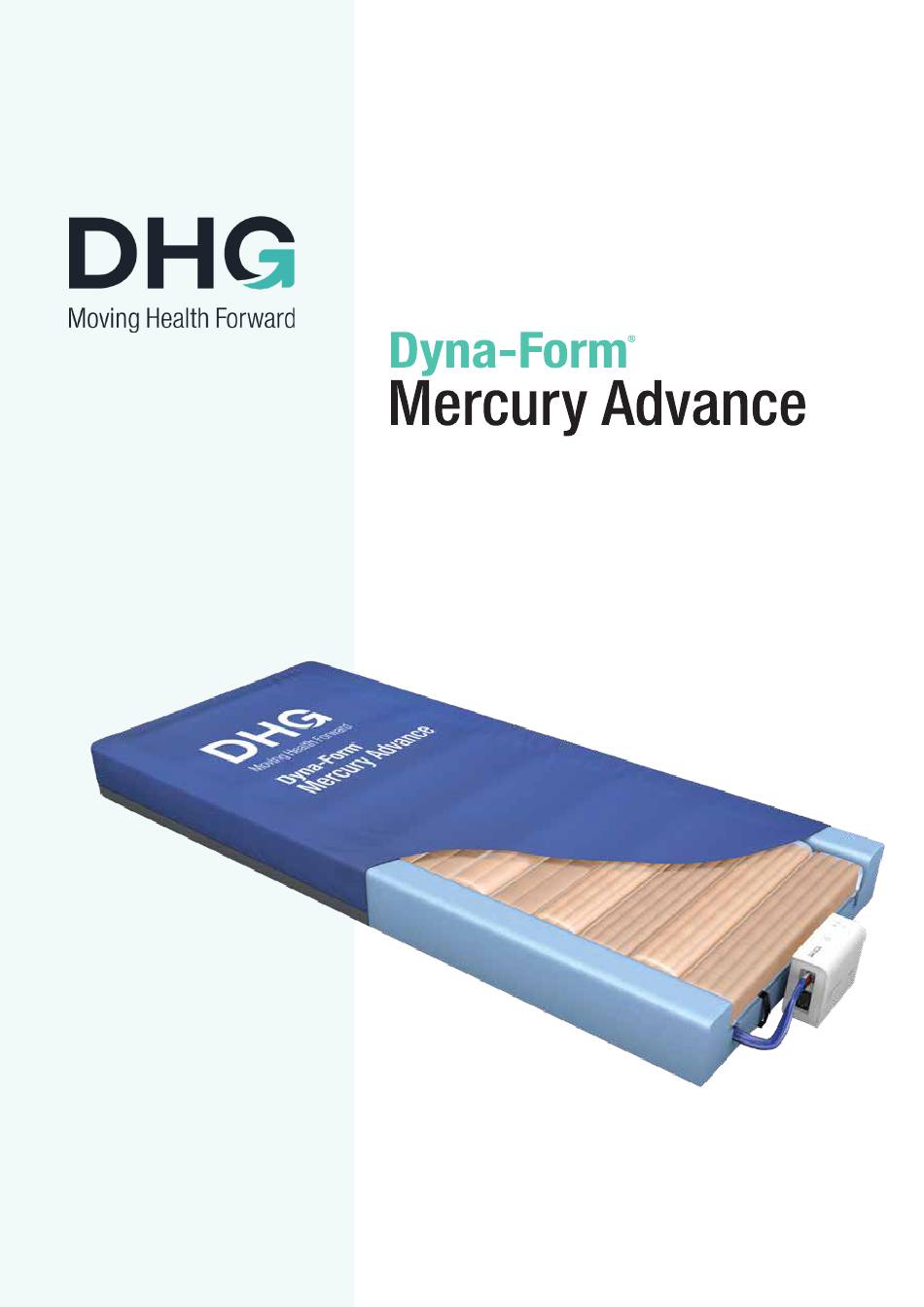

- Page 1 Service Manual D H G - H E A L T H C A R E . C O M...
- Page 2 DYNA-FORM MERCURY ADVANCE DHG-HEALTHCARE.COM...
-
Page 3: Table Of Contents
8. Alerts ....................................09 9. Maintenance Procedures ..............................10 10. Technical Specification ..............................14 11. Technical Data ................................18 12. Optimum Conditions for Use ............................18 13. Symbols Guide ................................18 14. Detachable/Removable Parts ............................19 15. Disposal ..................................19 DHG-HEALTHCARE.COM... -
Page 4: Introduction
The intended patient population is for individuals aged between Paediatric - Geriatric with a body weight of >10kg. 2.2 Contraindications The Dyna-Form Mercury Advance should not t be used for patients with unstable fractures, gross oedema, burns or intolerance to motion. 3. Quick Reference Guide... - Page 5 Please see troubleshooting guide below for how to re-set. This symbol, when illuminated, indicates a Service is required. DHG recommends an annual service. The service light will illuminate every 8760 hours of operation (one continuous year running). Note: Please ensure (when available) that all securing straps on the base of the mattress are secured onto the MOVING PARTS of the bed frame.
-
Page 6: Troubleshooting
DYNA-FORM MERCURY ADVANCE 4. Troubleshooting Warning / Fault Cause Solution Control Unit does The Control 1. Check the Control Unit is connected to mains power outlet with the correct voltage. Unit may not be 2. Check the Control Unit is switched on. Switch off and unplug the unit before not operate;... -
Page 7: Installation
Dyna-Form Mercury Advance Control Unit) are specific to this mattress only. The Dyna-Form Mercury Advance is a replacement mattress system and should NOT be placed on top of any existing mattress. - Page 8 5.4 Fire Evacuation System (If Applicable) The Dyna-Form Mercury Advance can be fitted with an optional fire evacuation system. In the event of an evacuation occurring, the following steps should be taken to provide the safest possible transport of the user: 1.
-
Page 9: Transportation
2. Check the power cable is firmly plugged into the mains outlet and the Control Unit; and check the mains power is switched on. 3. Check the Control Unit fuse (1 AMP) – fuses can be released using a screwdriver to push and turn. DHG-HEALTHCARE.COM... -
Page 10: Maintenance Procedures
The unit contains no user serviceable parts and should only be carried out by persons as described in section 9.1. 9.4.1 Warning DHG will make available on request all manuals, component parts Ensure the Mercury Advance System is not exposed to: lists and other information necessary for any suitably qualified 1. - Page 11 7. Secure new PCB into front enclosure using two fixings retained from disassembly. 8. Connect pressure sensor tube to pressure sensor on PCB and apply cable tie. 9. Connect switch header from IEC to the PCB and apply cable tie. DHG-HEALTHCARE.COM...
- Page 12 DYNA-FORM MERCURY ADVANCE 10. Connect Mercury Advance membrane 14 way header to the PCB, make sure that all pins of the header are connected. 11. Connect compressor/pump header to the PCB. 12. Connect motor header to the PCB. 13. Finally connect mains in header to the PCB.
- Page 13 3. Grease the rotor valve: Press down the cap of the rotor valve release the lock pin. Lift of the cap and put a thin layer of grease (Silicone grease Dow Corning Molykote PG21, 613000103) on the bottom side of the cap. Assemble back again. DHG-HEALTHCARE.COM...
-
Page 14: Technical Specification
DYNA-FORM MERCURY ADVANCE 10. Technical Specification Declaration - Electromagnetic Emissions - for all ME EQUIPMENT and ME SYSTEMS Guidance and Manufacturer’s Declaration – Electromagnetic Emission The MAT1210001 is intended for use in the electromagnetic environment specified below. The customer or the user of the system should ensure that it is used in such an environment. - Page 15 3 A/m Power frequency magnetic magnetic field fields should be at levels IEC 61000-4-8 characteristic of a typical location in a typical commercial or hospital environment. NOTE U is the a.c. mains voltage prior to application of the test level. DHG-HEALTHCARE.COM...
- Page 16 DYNA-FORM MERCURY ADVANCE 10. Technical Specification Declaration - Electromagnetic Immunity - for all ME EQUIPMENT and ME SYSTEMS that are not LIFE-SUPPORTING Guidance and Manufacturer’s Declaration – Electromagnetic Immunity The MAT1210001 is intended for use in the electromagnetic environment specified below.
- Page 17 NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. DHG-HEALTHCARE.COM...
-
Page 18: Technical Data
DYNA-FORM MERCURY ADVANCE 11. Technical Data 13. Symbols Guide 11.1.1 Control Unit Mattress Symbols Serial Number ...... As per label on rear of Control Unit Electrical Supply ........ 220-240VAC, 50/60Hz or 100-120VAC, 50/60Hz Power Rating ........7.5-10VA (220-240VAC), WASH AT 80°C... -
Page 19: Detachable/Removable Parts
Do not use with hot water bottles or electric blankets. Direct Healthcare Group. • DHG strongly advise against smoking whilst the Control Unit is” 15. Disposal in use. This is to prevent accidental secondary ignition of items All contaminated mattresses must be disposed of as clinical waste which may be flammable e.g. - Page 20 PRESSURE ULCER PREVENTION SAFE MOVING & HANDLING SPECIALIST THERAPIES BATHROOM SAFETY RENTAL & SERVICE SOLUTIONS Direct Healthcare Group Ltd Withey Court, Western Industrial Estate Caerphilly, United Kingdom CF83 1BF T: +44 (0) 800 043 0881 F: +44 (0) 845 459 9832 E: info@directhealthcaregroup.com Direct Healthcare Group Sverige AB Torshamnsgatan 35, SE-164...
