DHG Dyna-Form Mercury Advance Service Manual page 13

9.11.2 The Compressor
The compressor should be swapped out as a whole component.

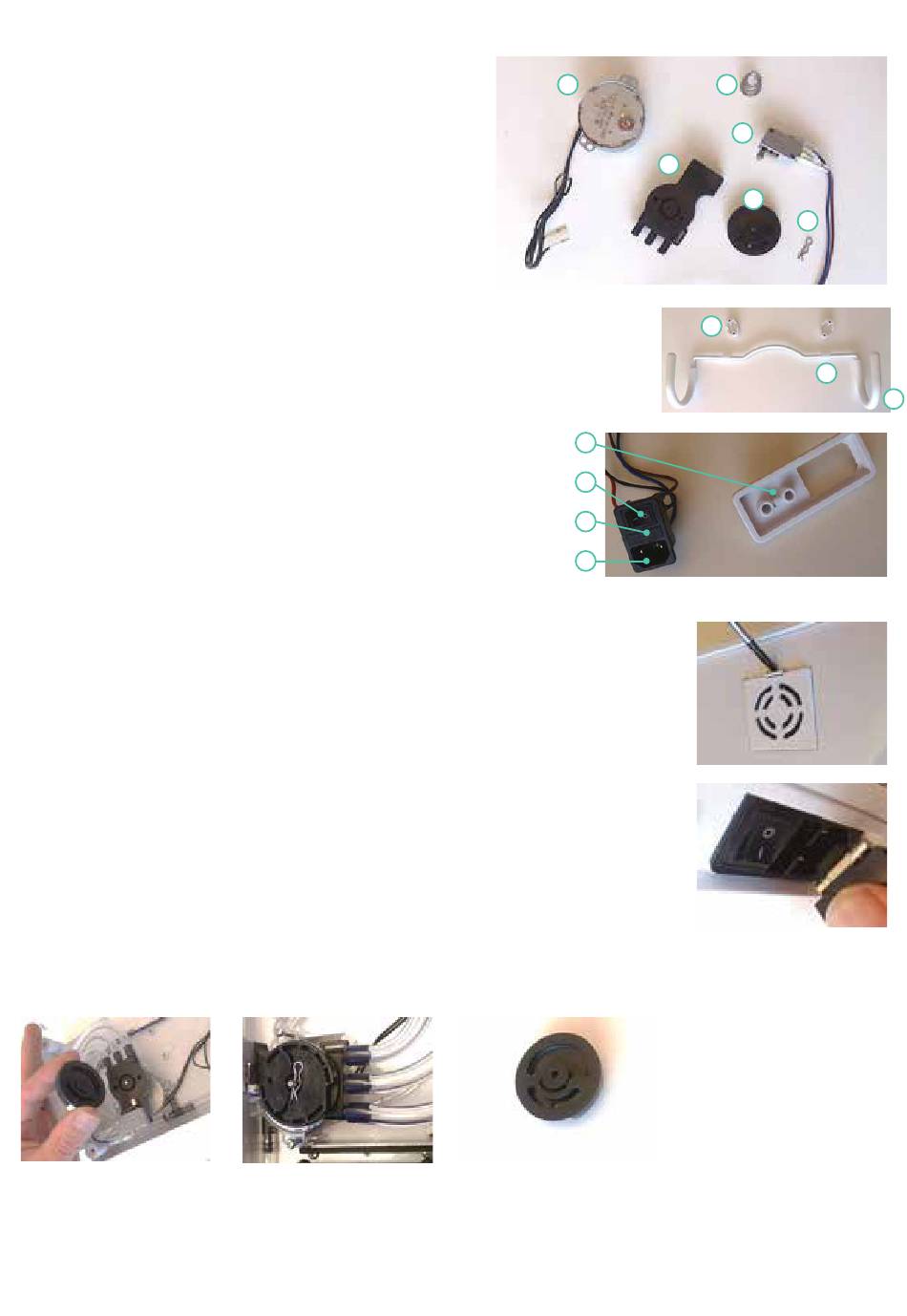

9.11.3 Rotor Valve with Motor
1. Rotor valve motor
2. Spring
3. Micro switch
4. Lock pin
5. Rotor valve cap
6. Rotor valve body
9.11.4 The Hooks
1. Hook attachment
2. Rubber suspension
3. Hook
9.11.5 Air Inlet / Power Outlet
1. Air outlet
2. Power inlet
3. Fuse holder
4. ON/OFF
9.12 Filter Maintenance
The Control Unit has a light that when illuminated indicates a Service is required.
1. Change the air filter: Remove air filter holder by pressing the plastic catch downwards and lifting
the air filter holder up. Take out the filter and put in a new one and put the filter holder back.
9.13 Fuse
2. Check the fuse: Check the fuse and if required add a spare in the holder for the fuse in the fuse
holder.
9.14 Rotor Valve Maintenance
The Control Unit has a light that when illuminated indicates a Service is required. Open the housing by
remove the 4 screws from the bottom part.
3. Grease the rotor valve: Press down the cap of the rotor valve release the lock pin. Lift of the cap
and put a thin layer of grease (Silicone grease Dow Corning Molykote PG21, 613000103) on the
bottom side of the cap. Assemble back again.
SERVICE MANUAL
DHG-HEALTHCARE.COM
1 2
6
1
1
4
3
2
3
5
4
2
3
13
