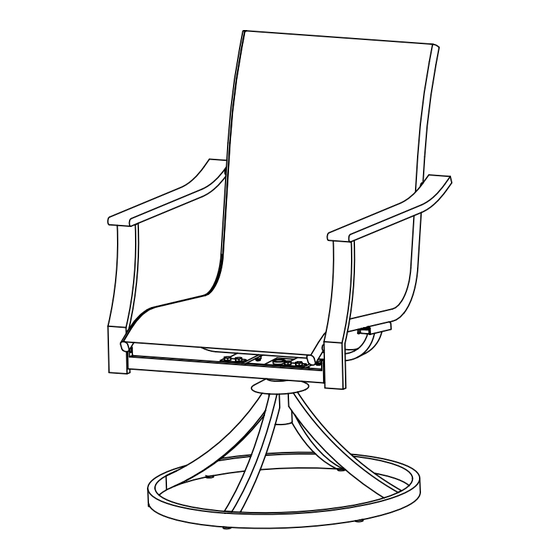

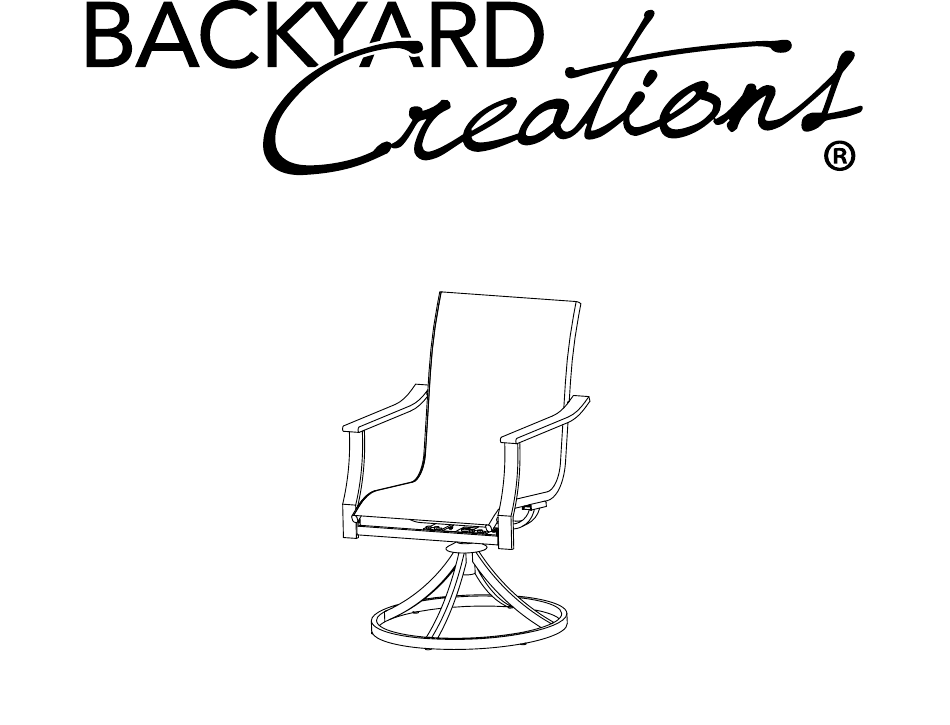

- Page 1 Spencer Collection Swivel Rocker Chair style # FCS60650S-1 sku # 2721842 >>assembly instructions...
-
Page 2: Before You Begin
IMPORTANT WARNING: Unpack the box on a clean soft level surface and make sure all parts have been included. If you have any questions or concerns, please visit our website at: www.yotrioint.com or toll free at: 1-866-905-4107 Monday-Friday 8:30 am to 5:00 am pacific standard time / 11:30 am to 8:00 pm eastern standard time. or email us at: customerservice@yotrious.com ATTENTION: This Chair is not intended for use during any kind of inclement weather and the manufacturer is not... - Page 3 table of contents introduction hardware parts list assembly QUESTIONS? Please call 1-866-905-4107 parts and service. For faster service, have the style nember and SKU number ready when calling.
- Page 4 hardware (Part J)×1 (Part G)×8 (Part H)×8 (Part I)×8 allen wrench M6*15mm bolt with washer M6*30mm bolt with washer M8*12mm bolt with washer (Part K)×1 hex wrench ATTENTION: THE HARDWARE KIT IS FOR 2 CHAIRS...
-
Page 5: Description Quantity
ITEM DESCRIPTION QUANTITY chair frame right arm left arm connect bar support tube chair base... - Page 6 step 01: (Part G)×2 (Part H)×2 M6*15mm bolt with washer M6*30mm bolt with washer (Part J)×1 allen wrench ATTENTION: To avoid damage to your new patio furniture, please use either the carton or another soft surface such as carpet as a working surface to prevent product damage during assembly.
- Page 7 step 02: (Part G)×2 (Part H)×2 M6*15mm bolt with washer M6*30mm bolt with washer (Part J)×1 allen wrench 1. Attach the chair frame (A) to the left arm (C) by lining up the bolt holes. 2. Secure with M6*30mm bolt with washer (H) using allen wrench (J). 3.
- Page 8 step 03 (Part I)×4 (Part K)×1 M8*12mm bolt with washer hex wrench 1. Attach the support tube (E) to the chair frame (A) by lining up the bolt holes. 2. Secure with M8*12mm bolt with washer (I) using hex wrench (K). Do not completely tighten screws until all screws are in place.
- Page 9 step 04 1. Tighten all the bolts. 2. Turn the chair frame (A) to an upright position. Put the chair frame (A) to the chair base (F). 3. Repeat these steps for the other chair. You are now ready to enjoy your new chair.
