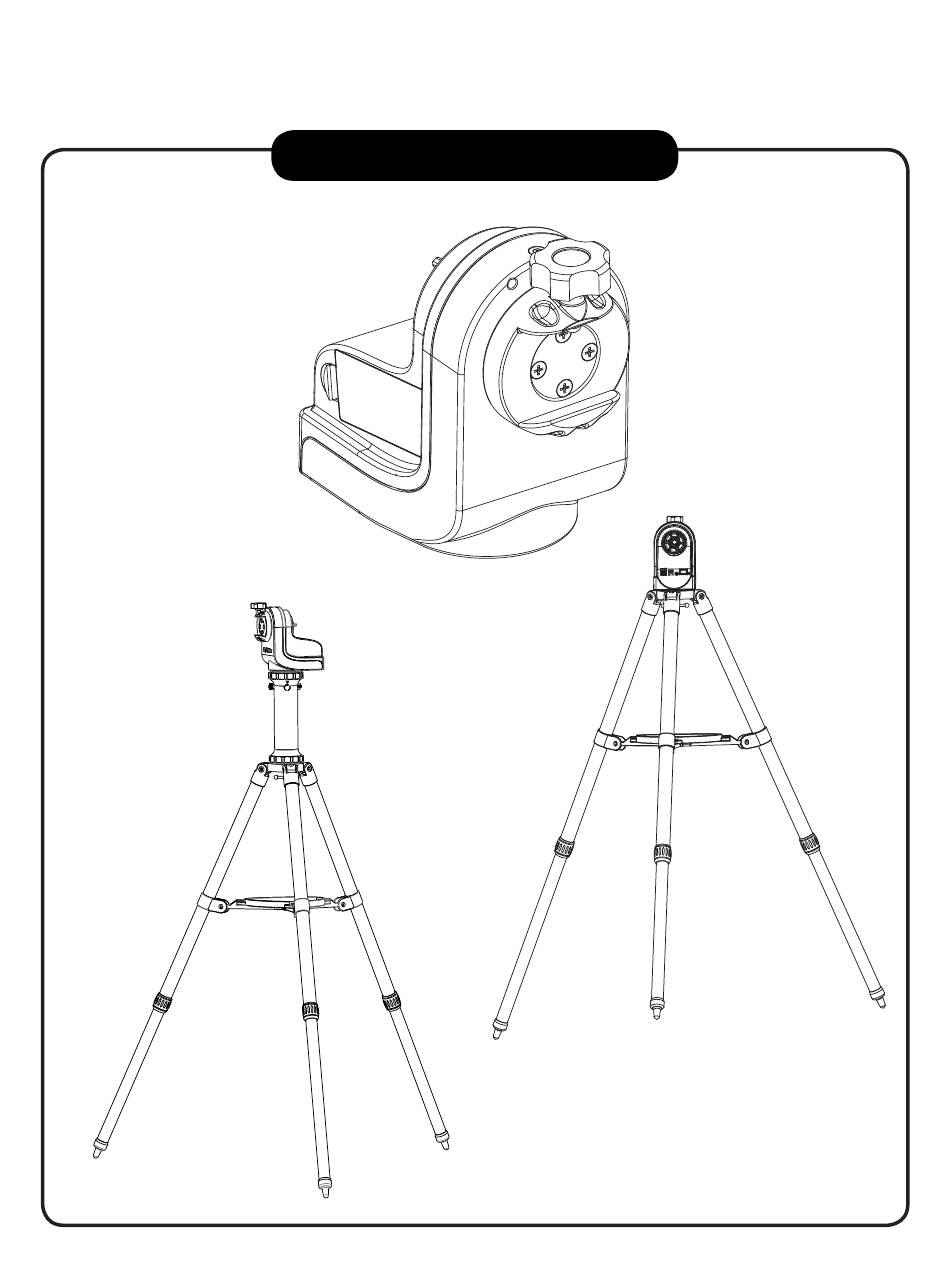

Parts Diagram Dovetail Bubble Level Locking Knob Altitude Clutch Wheel Dovetail Groove Saddle Battery Compartment for 8x AA Batteries Power Switch SNAP port External Power Hand controller LED Indicator port 3/8” socket...
PART I : SETTING UP THE AZ-GTe MOUNT 1.1 Setting Up on a Skywatcher Tripod Fully expand the three legs of the tripod on level ground. Install the accessory tray on the tripod as shown in Fig. 1.1a. If using a short tube telescope, which does not hit the tripod legs when it points high up, with the AZ-GTe mount, the mount can be installed onto the tripod directly.
PART I: SETTING UP THE AZ-GTe MOUNT If using a long tube telescope with AZ-GTe mount, an extension pier should be inserted between the tripod and the AZ-GTe mount to prevent the telescope from hitting the tripod legs when it points high up(Fig.
PART I: SETTING UP THE AZ-GTe MOUNT 1.3 Installing The Telescope Doveltail Locking Knob Loosen Tighten Saddle Dovetail Groove Altitude Clutch Wheel Tighten Loosen Fig. 1.3a Fig. 1.3b Loosen the altitude clutch wheel and rotate the saddle until the dovetail groove is horizon- tal, then tighten the altitude clutch wheel again (Fig 1.3a).
PART II : ELECTRONIC CONTROL INTERFACE 2.1 Control Panel The control panel of the AZ-GTe mount is shown below: Hand Control Power SNAP Fig. 2.1 2.2 Panel Interface Components: POWER: This is an input for external power to avoid running on the 8 AA batteries in the AZ-GTe mount battery compartment.
PART II: ELECTRONIC CONTROL INTERFACE 2.3 Pinout of The Interfaces: Note: The SNAP port provides two trigger signals Internal Circuit to the stereo plug. For a camera which only needs a shutter-release signal, either trigger Optoisolator TRIGGER Control Signal signals will work. For a camera which requires an extra “Focus”...
PART III : USING THE AZ-GTe MOUNT 3.1 Manually Rotating The Mount NEVER try to manually rotate the azimuth axis,it might damaged the mount.Always use a SynScan hand control or the SynScan App to rotate the azimuth axis with motor. You can loosen the altitude clutch and manually rotate the alitude axis.
PART IV: Assembling Your Telescope REFRACTOR A. Dew Cap/Sun Shade B. Telescope Main Tube C. Dovetail D. Finderscope E. Finderscope Bracket F. Finderscope Alignment Screws G. Focus Locking Screw H. Eyepiece I. Diagonal J. Focus knob...
Page 12
PART IV: Assembling Your Telescope REFLECTOR A. Red Dot Finder B. Red Dot Finder Bracket C. Telescope Main Tube D. Dovetail E. Main mirror F. Focus knob G. Eyepiece...
Page 13
PART IV: Assembling Your Telescope MAKSUTOV A. Dust Cap( not shown, remove before viewing) B. Telescope Main Tube C. Dovetail D. Focus knob E. Diagonal F. Eyepiece G. Red Dot Finder H. Red Dot Finder Bracket...
PART IV: Assembling Your Telescope Before you begin This instruction manual is applicable to 3 models. Take a moment to find the model of your telescope. Follow the instructions for your specific model in the manual. Read the entire instructions carefully before beginning. Your telescope should be assembled during daylight hours.
PART IV: Assembling Your Telescope 4.2 Eyepiece assembly 1. Inserting eyepiece for refractor and Maksutov(Fig.4.2.1a) • loosen the thumbscrew on the end of the focus tube. • Insert the diagonal into the focus tube and re-tighten the thumbscrew to hold the diagonal in place.
PART V: Operating Your Telescope 5.1 Aligning and using the finderscope/red dot finder Aligning and using the finderscope These fixed magnification scopes mounted on the optical tube are very useful accesso- ries. When they are correctly aligned with the telescope, objects can be quickly located and brought to the center of the field.
PART V: Operating Your Telescope • Open the battery cover by pulling it down (you can gently pry at the 2 small slots) and remove the plastic shipping cover over the battery(Fig.5.1.2b). • Turn on the Red Dot Finder by rotating the variable brightness control clockwise until you hear a “click”.
PART V: Operating Your Telescope 5.3 Choosing the appropriate eyepiece • The magnification produced by a telescope is determined by the focal length of the eye- piece that is used with it. To determine a magnification for your telescope, divide its focal length by the focal length of the eyepieces you are going to use.
PART VI: Observing the sky 6.1 Sky Conditions • Sky conditions are usually defined by two atmospheric characteristics, seeing, or the steadiness of the air, and transparency, light scattering due to the amount of water va- pour and particulate material in the air. When you observe the Moon and the planets, and they appear as though water is running over them, you probably have bad “seeing”...
PART VI: Observing the sky 6.4 Cooling the Telescope • Telescopes require at least 10 to 30 minutes to cool down to outside air temperature. This may take longer if there is a big difference between the temperature of the telescope and the outside air.
Page 21
PART VII: Proper Care for Your Telescope 7.1 Cleaning Your Telescope • Replace the dust cap over end of telescope whenever not in use. This prevents dust from settling on mirror or lens surface. Do not clean mirror or lens unless you are familiar with optical surfaces.
Page 22
APPENDIX : SPECIFICATIONS Dimensions: Mount Tripod Specifications: Product Name AZ-GTe Mount Mount Type Altitude-azimuth Mount Payload 5 kg Mount’s Weight 1.3 kg Tripod + Extension Pier Weight 1.9 kg + 0.5kg Power Requirement DC7.5~14V, 0.75A Motor DC Servo Motor Gear Ratio 6480 Resolution 2073600 Counts/Rev., 0.625 arc-second...
