Beijer Electronics JetCon 3701G Quick Installation Manual

JetCon 3701G
Quick Installation Guide v1.1
Copyright
Copyright © 2014 all rights reserved. No part of this publica�on may be
reproduced, adapted, stored in a retrieval system, translated into any
language, or transmi�ed in any form or by any means without the wri�en
permission of the supplier.
About the Quick Installa�on Guide
This Quick Installa�on Guide is intended to guide professional installer to
install and configure the JetCon 3701G . It covers procedures to assist you
in avoiding unforeseen problems.
Introduction
JetCon 3701G is an Ethernet to fiber op�c media converter. It conforms
IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, and IEEE 802.3ab 1000Base-T
supports RJ-45 copper to Gigabit fiber conversion. JetCon3701G are
classified as power source equipment (PSE), providing 15.4/30 wa�s to
powered devices(PD). It could be used to power IEEE 802.3af/at compliant
powered devices (PD). The JetCon 3701G adopts rugged metal case design
to operate in harsh environment (-40~75°C). It also IP-31 standard
protec�on. It features link loss forwarding raise an alarm when a remote
fault occurs and also adopts one relay output to alarm users if a port link or
power fails. Alarm can be enable/disable by dip switch. The fiber port
supports SFP sockets for several of SFP transceiver to achieve different link
distance.
JetCon 3701G recommend working voltage is DC 48V. (Input range: DC10~
60 V)
Package Check List
JetCon 3701G Industrial Media Converter

Quick Installa�on Guide

Installation
Mount the unit
Din-Rail mount: Mount the din-rail clip on the rear of JetCon 3701G V2 on
the DIN rail. For informa�on about the DIN Rail installa�on, please refer
to user's manual.
Grounding JetCon 3701G
There is one grounding screw on the
bo�om side of JetCon 3701G . Connect the
frame grounding of JetCon 3701G to the
grounding surface to ensure safety and
prevent noise for communica�on interference.

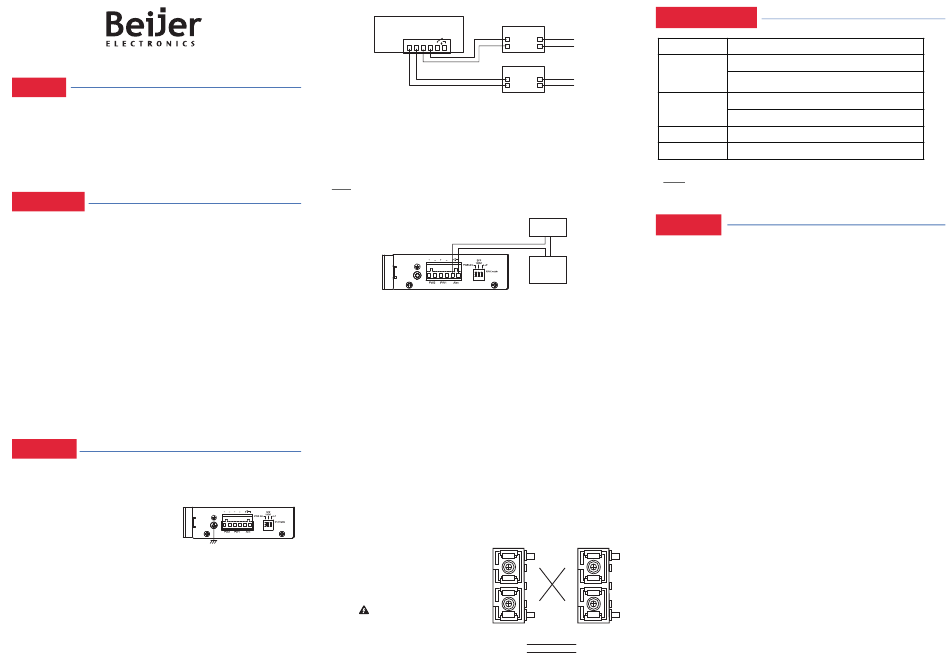

Wiring the Power Inputs
1. Insert the posi�ve and nega�ve wires into the V+ and V- contact on the
terminal block connector.
2. Tighten the wire-clamp screws to prevent the power wires loosened.
AC/DC Power Supply
(DC 10V~60V, 1A, UL Listed)
DC Power output
PWR 1 PWR 2 Dry Relay Output
DC 10V~60V
V+ V- V+ V-
Bottom side of
AC/DC Power Supply
JetCon 3710G
(DC 10V~60V, 1A, UL Listed)
12~23 AWG Wire
DC Power output
DC 10V~60V
12~23 AWG Wire
Wiring the Relay Output
The relay output contacts are in the middle of the terminal block connector
as shown below. By inser�ng the wires and se�ngs the DIP switch of the
respec�ve alarm func�on to "ON", relay output alarm will detect port or
power fault, and form a short circuit. The alarm relay output is "Normal
Open". For more informa�on, please refer Manual chapter for more detail.
Note:
The relay contact only support 1A current, DC 24V. It does not recommend
apply higher voltage and current that over this specifica�on.
Maximum 1A current / DC 24V
Connec�ng to Network
1. Connec�ng the Gigabit PoE port: The port supports IEEE 802.3at PoE
standard, and offer 2 event PoE behavior. Thus, the PoE port can
offer 15W/30W power, and system offer 60W with DC12V input
under 70C one end of an Ethernet cable into the UTP port of JetCon
3701G , while the other end is connected to the a�ached networking
device. UTP port support auto MDI/MDIX func�on. The LNK / ACT
LED will turn on and flash to indicate RJ-45 port link and the packets
received and transmi�ed from RJ-45.
2. Install Gigabit SFP transceiver and make the connec�on: Connect
the fiber port on your JetCon 3701G to another Gigabit Fiber
Ethernet device, by following the figures below. Wrong connec�on
will cause the fiber port not working properly.
The SFP Fiber port supports 2 LEDs for link/ac�vity and full duplex/
collision, once the gigabit fiber port is in up, the link LED will be
trigger to"ON"
A�en�on:
This is a Class 1 Laser/LED product.
A
Don't stare into the Laser/LED
TX (A)
Beam.
RX (A)
DIP Switch Setting
V -
AC Power input
Dipswitch
V +
Switch 1
V -
AC Power input
V +
Switch #2
Switch #3
Note:
A�er adjus�ng the DIP-switch, please reboot the unit to ac�vate the
new se�ngs.
Support
Alarm System
5 Years Warranty
Each of Beijer Electronics 's product is designed, produced, and tested with
Extra Power
high industrial standard. Beijer Electronics warrants that the product(s) shall
System
be free from defects in materials and workmanship for a period of five (5)
years from the date of delivery provided that the product was properly
installed and used.
This warranty is voided if defects, malfunc�ons or failures of the warranted
product are caused by damage resul�ng from force measure (such as floods,
fire, etc.), other external forces such as power disturbances, over spec power
input, or incorrect cabling; or the warranted product is misused, abused, or
operated, altered and repaired in an unauthorized or improper way.
A�en�on! To avoid system damage caused by sparks, please DO NOT plug
in power connector when power is on.
The product is in compliance with Direc�ve 2002/95/EC and 2011/65/EU of
the European Parliament and of the Council of 27 January 2003 on the
restric�on of the use of certain hazardous substances in electrical and
electronics equipment (RoHS Direc�ves & RoHS 2.0)
RX RX
TX TX
B
Cable Wiring (SC to SC)
RX (B)
TX (B)
Func�onality
On: Enable power event alarm
Off: Disable.
On: SFP speed at 100Mbps
Off: SFP speed at 1000Mbps
On: Enable LLF func�on
Off: Disable.
