1200
Portable Carpet Extractor
Operator
611383
Rev.
01 (05- - 04)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 611468-230V and is the answer not in the manual?

Questions and answers

Related Manuals for Tennant 611468-230V

Summary of Contents for Tennant 611468-230V

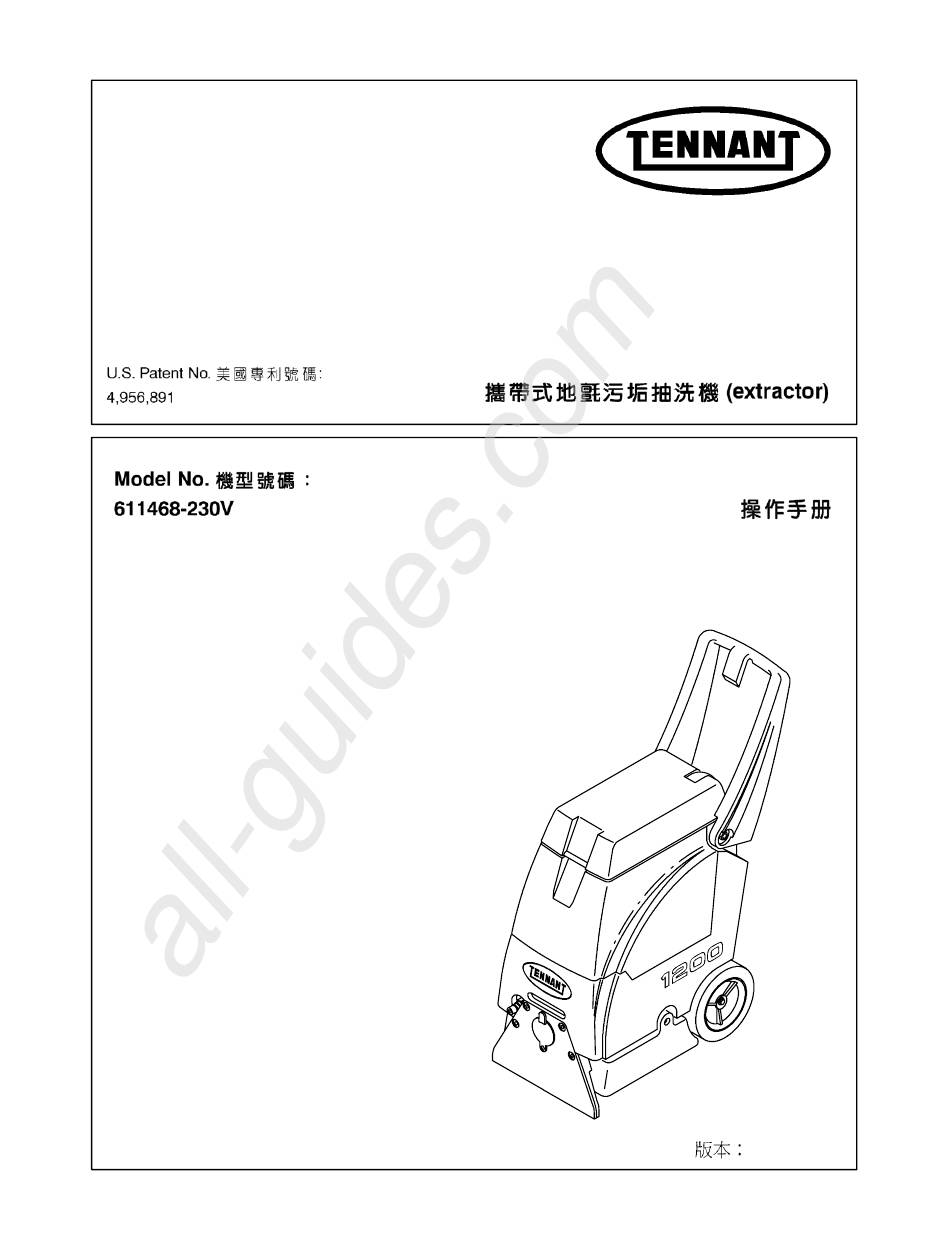

  • Page 1 All manuals and user guides at all-guides.com 1200 Portable Carpet Extractor Operator 611383 Rev. 01 (05- - 04)

  • Page 2: Machine Data

    – Please fill out at time of installation for future reference. – Model No. – Install. Date – Serial No. – Specifications and parts are subject to change without notice. © 2001 Tennant Company Printed in U.S.A. Tennant 1200 (04-01)
  • Page 3 All manuals and user guides at all-guides.com...

  • Page 4: Safety Precautions

    Do not unplug by pulling on cord. Do not stretch cord. Do not handle plug with wet hands. Keep cord away from heated surfaces. Report machine damage or faulty operation immediately. Follow mixing and handling instructions on chemical containers. Tennant 1200 (04-01)

  • Page 5: Grounding Instructions

    The plug must be plugged into an appropriate outlet that is properly installed in accordance with all local codes and ordinances. Grounded Outlet Grounding Edge/hole Tennant 1200 (04-01)

  • Page 6: Safety Labels

    – WARNING: Flammable materials can cause an explosion or fire. Do not use flammable materials in tank(s). Flammable materials or reactive met als can cause explosion or fire. Do not pick up. Tennant 1200 (04-01)

  • Page 7: Machine Components

    (Figure 2). Markers 9. Recovery Tank Cover 10. Recovery Sight Window 11. Recovery Tank 12. Solution tank 13. Floating Brush Base 14. Pick-Up Head 15. Accessory Tool Solution Hose Coupler 16. Accessory Tool Vacuum Hose Port FIG. 2 Tennant 1200 (04-01)
  • Page 8 7. Plug machine’s power cord into a grounded wall outlet (Figure 4). Grounded Outlet Grounding Edge/hole FIG. 3 FIG. 4 FOR SAFETY: Do not operate machine unless cord is properly grounded. FOR SAFETY: Do not operate machine with the use of an extension cord. Tennant 1200 (04-01)

  • Page 9: Machine Operation

    3. Release triggers at end of path and continue to pull machine to pick up excess solution. CLEANING CARPETS 1. Turn main power switch on (Figure 5). 4. Tip machine back on wheels and push machine forward to begin next path. FIG. 5 Tennant 1200 (04-01)

  • Page 10: While Operating

    ATTENTION: Excessive foam buildup will not activate the float shut-off screen. 4. If brush stops, the circuit breaker may have been tripped. Unplug power cord, check brush for obstruction. Push brush reset button to resume (Figure 7). FIG. 8 FIG. 7 Tennant 1200 (04-01)

  • Page 11: Draining Tanks

    FIG. 11 NOTE: Make sure to rinse out recovery tank before refilling solution tank. FIG. 10 4. After cleaning, relieve water pressure from tool before disconnecting hose. Squeeze trigger for five seconds after turning main power switch off. Tennant 1200 (04-01)

  • Page 12: Draining Solution Tank

    (Every 4 Hours of Operation) 1. Empty and rinse out recovery tank thoroughly FIG. 12 (Figure 13). 2. Replace drain hose. FIG. 13 2. Remove float shut-off screen from recovery tank cover and clean (Figure 14). FIG. 14 Tennant 1200 (04-01)
  • Page 13 Coil cord neatly after use. 5. Remove any entangled carpet fibers and debris from brush (Figure 16). 8. Clean machine with an all purpose cleaner and damp cloth (Figure 18). FIG. 16 FIG. 18 Tennant 1200 (04-01)

  • Page 14: Weekly Maintenance

    Next day, spray out remaining solution and flush system with 11L (3 gal) of clean water. 2. Lubricate wheels with a water resistant oil. 3. Inspect machine for water leaks and loose hardware. loose Tennant 1200 (04-01)

  • Page 15: Quarterly Maintenance

    2. Store machine in a dry area in the upright position. 3. Open recovery tank cover to promote air circulation. ATTENTION: Do not expose to rain. Store indoors. ATTENTION: If storing machine in freezing temperatures, be sure that machine and solution system are completely drained and dry. Tennant 1200 (04-01)

  • Page 16: Troubleshooting

    Contact Service Center. Worn spray tips. Replace spray tips. Solution tank low or empty. Refill solution tank. Faulty solution pump. Contact Service Center. Pump needs priming. Prime pump by pressing solution hose coupler tip located at front of machine. Tennant 1200 (04-01)
  • Page 17 All manuals and user guides at all-guides.com OPERATION Tennant 1200 (04-01)

  • Page 18: Specifications

    DECIBEL RATING AT OPERATOR'S EAR, <72 dB(A) INDOORS ON CARPET MACHINE DIMENSIONS  914 mm (36.0 in)   1054 mm (41.5 in) 749 mm  330 mm 533 mm  (21.0 in) (13.0 in)   Tennant 1200 (04-01)
  • Page 19 (65psi) 4.5LPM 1.2 1.4HP 1046 105cfm 2514 1249 3x1.5 – 230 <72  914 mm (36.0 in)   1054 mm (41.5 in) 749 mm  330 mm 533 mm  (13.0 in) (21.0 in)   Tennant 1200 (04-01)
