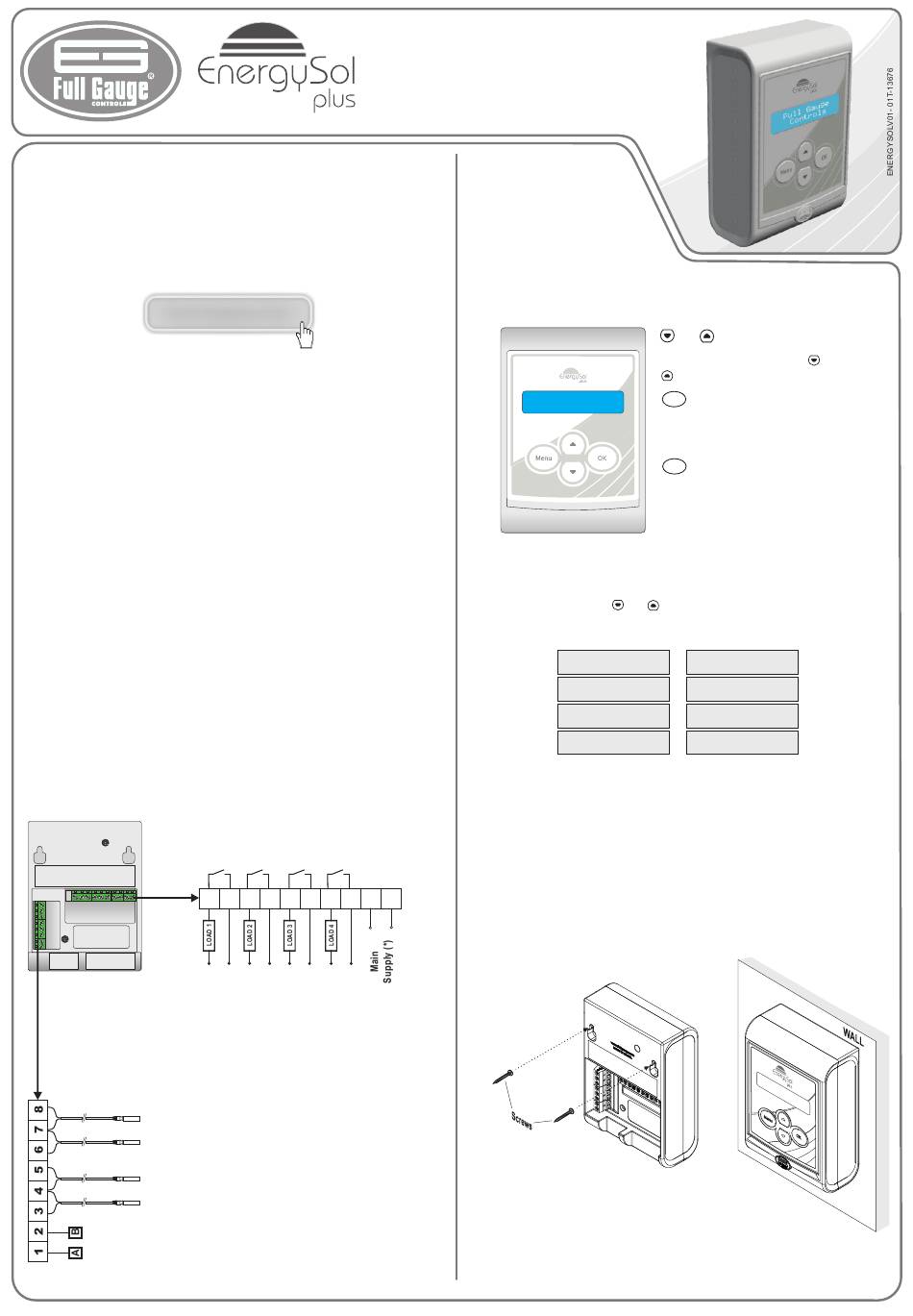

Full Gauge Controls EnergySol plus Quick Installation Manual

1 - DESCRIPTION
EnergySol plus is a differential temperature controller for solar heating systems with four temperature
sensors and four relay outputs, which performs the control and management of all kinds of facilities,
including booster systems (gas or electric heating.) This controller has functions that prevents the
overheating and freezing of the water in the pipes of the collectors and operates in the water circulation of
the pump control through the temperature differential between solar collectors and thermal storage tank
(or swimming pool).
EnergySol plus provides the user with a quick configuration of its functions through its wide range of
predefined layouts and a friendly interface. According to the application you can select one out of 9
layouts (or types of installation) predefined in the controller or freely use the available functions by
configuring it in a customized manner.
Access the complete manual in:
www.fullgauge.com
2 - APPLICATION
Solar heating systems aided by a pump.
3 - TECHNICAL SPECIFICATIONS
- Power supply: 90 to 264Vac (50/60Hz)
- Temperature control: S1, S3 and S4: -50 to 200°C / -58 to 392°F (using sensor SB59)
S2: -50 to 105°C / -58 to 221°F
- Resolution: 0.1°C between -10 and 100°C and 1°C in the remainder of the band
1 °F the all of the range
- Inputs:
Four temperature sensors: S1 - temperature sensor 1
S2 - temperature sensor 2
S3 - temperature sensor 3
S4 - temperature sensor 4 (sensor sold separately)
- Outputs:
Four relay outputs: RL1 - Operation of the pump
Maximum current 5(3)A/240Vac 1/8HP
Contact NO
RL2 - Auxiliary operation 1
Maximum current 5(3)A/240Vac 1/8HP
Contact NO
RL3 - Auxiliary operation 2
Maximum current 5(3)A/240Vac 1/8HP
Contact NO
RL4 - Auxiliary operation 3
Maximum current 5(3)A/240Vac 1/8HP
Contact NO
- Dimensions (WxHxD): 90 x 130 x 43mm.
- Operating Temperature of the controller: 0 to 50°C
- Operating humidity: 10 to 90% RH (no condensation)
4 - IDENTIFICATION OF THE PARTS OF THE ONTROLLER'S
PARTS
4.1 - Identification of the terminals
EnergySol plus has two sets of terminals located in the rear of the controller, as shown in the
drawing below.
www.fullgauge.com
MADE IN BRAZIL
(*) For the model EnergySol plus:17 = 90 to 264Vac,18 = 0 Vac
For the model EnergySol L plus:17 = 12 Vac/Vdc,18 = 0 Vac/Vdc
Sensor S4
The temperature sensor
inputs and the communication
Sensor S3
connections with SITRAD are
located in the vertical
terminals.
Sensor S2
Sensor S1
Serial
Communication
RS-485
Ver.01
Relay outputs and power supply of the controller are
located in the horizontal connectors
RL1 RL2 RL3 RL4
9 10 11 12 13 14 15 16 17 18
QUICK INSTALLATION GUIDE
DIFFERENTIAL TEMPERATURE CONTROLLER
FOR SOLAR HEATING SYSTEMS WITH 4 SENSORS
AND 4 CONFIGURABLE OUTPUTS
4.2 - Identification of the front panel
EnergySol plus features a liquid crystal display as a visual interface with the user on the front panel
and four navigation keys, as shown in the figure below.
Full Gauge
Full Gauge
Controls Controls
5 - HOW TO ACCESS THE MENUS
EnergySol plus plus has all its programming separated into menus as shown below: To access the
menus on the controller, press
You will then see the
01-Access Code
02-Functions
03-Parameters
04-Schedule
5.1 - Access Code
01-Access Code
The menu
programs.
123
: Allows functions, parameters, scheduler, clock and configurations to be changed.
231
: Allows unit of measurement to be changed (°C/°F).
717
: Allows the layout of the installation to be selected.
6 - INTRUMENT FIXATION MODE
6 .1 - Screw fixation (WALL-MOUNTED)
and : These keys are used to work through the
menus and functions of the controller. When the user is
adjusting a certain function, the key
increases the value of that function.
Menu
: If the user is viewing the main screen and
presses this key, the display will show the easy access
functions. When the menu or sub-menu is being viewed,
the controller returns to the main screen or the next
highest menu.
OK
: This is used to enter in a menu or function.
By adjusting a function this key is to confirm a new value.
and simultaneously for 2 seconds.
01-Access Code
screen showing the value
05-Clock
06-Config
07-Descriptions
08-Layout
is used to enter a security code to allow access to certain
decreases and
000
.
