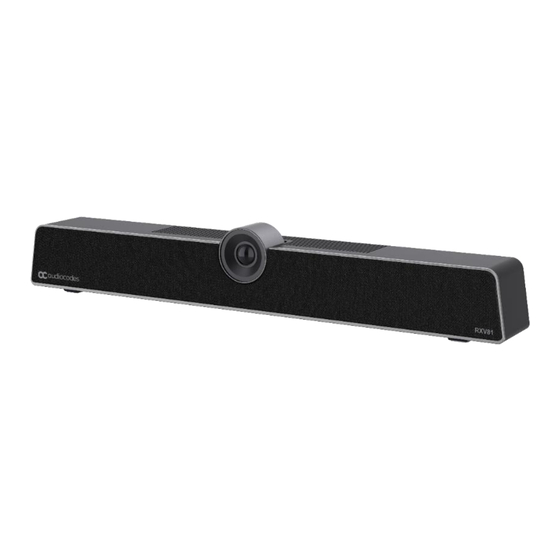

AudioCodes RXV81 Collaboration Bar

1. Introduction

Thank you for purchasing AudioCodes AudioCodes RXV81 Collaboration Bar!
The RXV81 offers an integrated camera with an adjustable lens angle for optimal viewing, six beamforming
microphone arrays that provide a pickup range of 14.7 feet (4.5 meters), and a robust 10W speaker.

2. Package Contents

Make sure you've received the following items in the shipped box:
✓
RXV81 Collaboration Bar
✓
Power Adapter
✓
USB Type-C cable
✓
Wall mount and screws
✓
HDMI Cable
✓
Controller. Depending on your purchase, your RXV81 includes one of the following controllers:
o
RC-RXV Remote Control and batteries (when purchasing TEAMS-RXV81)
o
RX-PAD Meeting Room Controller (when purchasing TEAMS-RXV81-B10)

3. Positioning

You can wall mount the RXV81 or
placed it on top of the display (not
supplied but can be ordered
separately). Designed for small-to-
mid-size rooms, it's recommended
to position the RXV81 below the
display and approximately 4 inches
(10 cm) above the table.
You can adjust the camera's wide-angle horizontal field of view, which spans 110 degrees,
allowing for precise fine-tuning of its vertical position as well.
