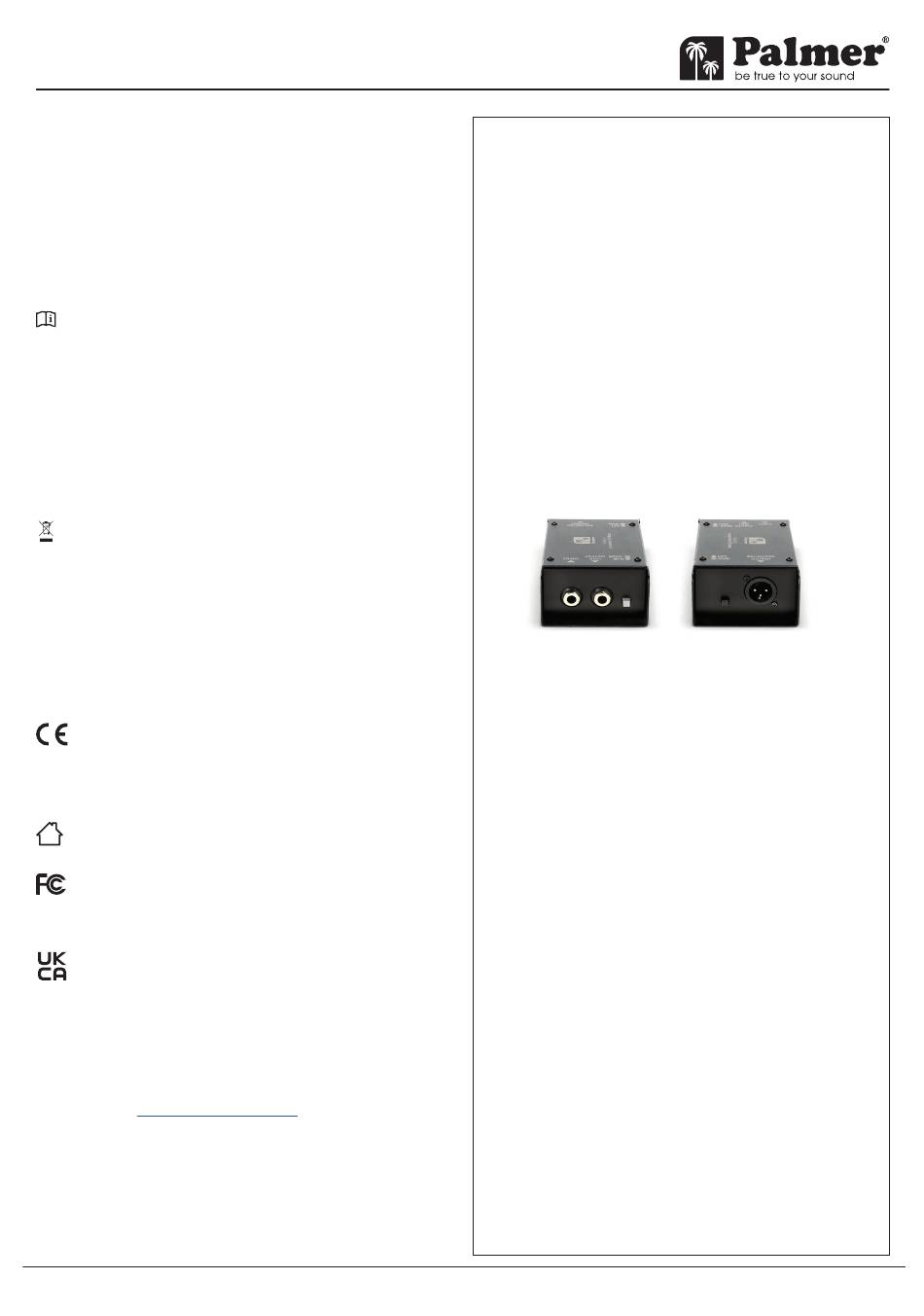

Palmer PAN01 Quick Start Manual

PAN01
PASSIVE DI BOX
INTENDED USE
This product is a device for event technology, as well as studio, TV and broadcast!
This product has been developed for professional use in the field of event technology,
studio, TV and broadcast. It is not suitable for household use!
Furthermore, this product is only intended for qualified users with specialist knowledge of
event technology, as well as studio, TV and broadcast!
Use of the product outside the specified technical data and operating conditions is
considered improper use!
Liability for damage and third-party damage to persons and property due to inappropria-
te use is excluded!
The product is not suitable for:
- Persons (including children) with limited physical, sensory or mental abilities or lack of
experience and knowledge.
- Children (children must be instructed not to play with the product).
SAFETY INSTRUCTIONS
1. Please read this manual carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Use the device in the prescribed manner only.
5. Do not open the device and do not perform any modifications.
CHOKING HAZARD! KEEP OUT OF THE REACH OF CHILDREN! THE PRODUCT CONTAINS
SMALL PARTS THAT CAN BE SWALLOWED AS WELL AS PACKAGING MATERIAL THAT CAN BE
SWALLOWED! PLASTIC BAGS MUST BE KEPT OUT OF THE REACH OF CHILDREN!
MANUFACTURER'S WARRANTY & LIMITATION OF LIABILITY
Our current warranty conditions and limitation of liability can be found at:
www.adamhall.com/media/shop/downloads/documents/manufacturersdeclarations.pdf
If service is required, please contact Adam Hall GmbH, Daimlerstraße 9, 61267 Neu
Anspach / E-mail Info@adamhall.com / +49 (0)6081 / 9419-0
CORRECT DISPOSAL OF THIS PRODUCT
(Valid in the European Union and other European countries which mandate waste
separation) This symbol on the product or associated documents indicates that to
prevent environmental damage and personal injury through uncontrolled waste
disposal, the product must not be disposed of with normal household waste at the
end of its service life. Please dispose of this product separately from other waste and
recycle it to promote sustainable commercial activity. As a private customer, you can
obtain information on environmentally-friendly disposal options from the vendor of the
product or the appropriate regional authorities. As a commercial user, please contact
your supplier and check for any contractually agreed conditions on disposing of the
equipment. This product must not be disposed of with other commercial waste.
PLEASE NOTE:
The shielding of the breakout cable is connected to the shielding of the Cat cable
via the Cat plug and Cat socket.
CE CONFORMITY
Adam Hall GmbH hereby confirms that this product meets the following
guidelines (where applicable):
Low-Voltage Directive (2014/35/EU)
EMC Directive (2014/30/EU)
RoHS (2011/65/EU)
RED (2014/53/EU)
For use in dry indoor areas.
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept
any interference received, including interference that may cause undesired operation
UKCA- Conformity
Hereby, Adam Hall Ltd. declares that this product meets the following
guidelines (where applicable) Electrical Equipment (Safety) Regulations
2016 Electromagnetic Compatibility Regulations 2016 (SI 2016/1091).
The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic
Equipment Regulation 2012 (SI 2012/3032) Radio Equipment Regulations 201 7(SI 2016/2015)
Adam Hall Ltd. | The Seedbed Bus. Centre | SS3 9QY Essex | UK
UKCA- Declaration of Conformity
Products that are subject to Electrical Equipment(Safety)Regulation 2016, EMC
Regulation 2016 or RoHS Regulation can be requested at info@adamhall.com.
Products that are subject to the Radio Equipments Regulations 2017 (SI2017/1206) can
be downloaded from www.adamhall.com/compliance/
SUBJECT TO MISPRINTS AND ERRORS, AS WELL AS TECHNICAL OR OTHER
MODIFICATIONS!
Palmer® is a registered brand of the Adam Hall Group
Adam Hall GmbH | Adam-Hall-Str. 1 | 61267 Neu-Anspach | Germany
Adam Hall Ltd. | The Seedbed Bus. Centre | SS3 9QY Essex | UK
INTRODUCTION
A DI box (Direct Injection) serves the purpose of connecting instruments
with an electric output directly to the microphone input of a mixer or stage
box, bypassing the acoustic signal chain (instrument – loudspeaker –
microphone). Beyond adjusting the signal level, a DI box also balances the
signal and lowers its impedance. This ensures the signal is less susceptible
to interference and cable losses. Palmer DI boxes incorporate audio
transformers, guaranteeing galvanic isolation between the input and
output. It is important to note that a passive DI box should not be used for
galvanically isolating a line signal, as the transfer ratio is not 1:1 in such
cases. Instead, opt for a line isolation box like Palmer's RIVER wupper, kyll,
and iller.
CONNECTIONS
Connect the unbalanced output of your instrument to the input of the
PAN01 using a shielded jack cable. This input signal is directly looped to the
THRU connector, meaning you can pass the uncharged original signal on to
a further device (e.g., to connect the instrument to an amplifier). The XLR/m
output named "Balanced Out" should be connected to the microphone
input of a stage box or mixer using a balanced, shielded microphone cable.
ATTENUATOR
This switch allows for a 30dB reduction of the input signal. Use the 0dB setting
for all signals with a level of +6dBu (line level). For stronger signals or when
using the DI box between an amplifier and a speaker, employ the -30dB
setting. Generally, use the Attenuator switch in such a way, that the micro-
phone input receives an appropriate signal.
GROUND LIFT SWITCH
As stated above, the PAN01 achieves galvanic isolation between input
and output (galvanic isolation means there is no conducted connection;
the signal is transferred on the basis of magnetic induction), preventing
ground loop hum caused by double grounding (e.g., when a mains-
powered instrument or amplifier is connected to a mixer). Despite galvanic
isolation, occasional hum loops or noise may arise due to unintended
earthing issues. The ground lift switch interrupts the earth connection,
minimizing ground loop interference. So if there is audible hum in the
signal, press the ground lift switch. In general, lift the ground when
connecting two mains-powered devices and do not lift the ground when
dealing with a battery-powered device.
info@adamhall.com | adamhall.com
Designed and engineered in Germany, assembled in P .R.C.
