Palmer PGA04 Quick Start Manual

PALMER - PGA04
Customizing the Loadbox LED-Chain
The LED on the front of the PGA04 indicates the load on the PGA04s' load box. The factory setting is such, that the
load box automatically gets deactivated when you connect a speaker to the rear "THRU" socket of the PGA04. Thus
the LED chain is also inactive.
You can however modify this behavior with a simple jumper within the PGA04.
If you change the position of the jumper, the LED chain will display the input level instead of the load on the load box.
It will thus always display the input, regardless of whether a speaker is connected or not.
Follow these instructions to change this setting:
Please only make this change if you are confi dent of being able to do so. Otherwise please contact a certifi ed techni-
cian.
CONTACTS:
Tel: +49 (0)6081 94190
FAX: +49 (0)6081 43280
Email: palmer@adamhall.com
STEP 1:

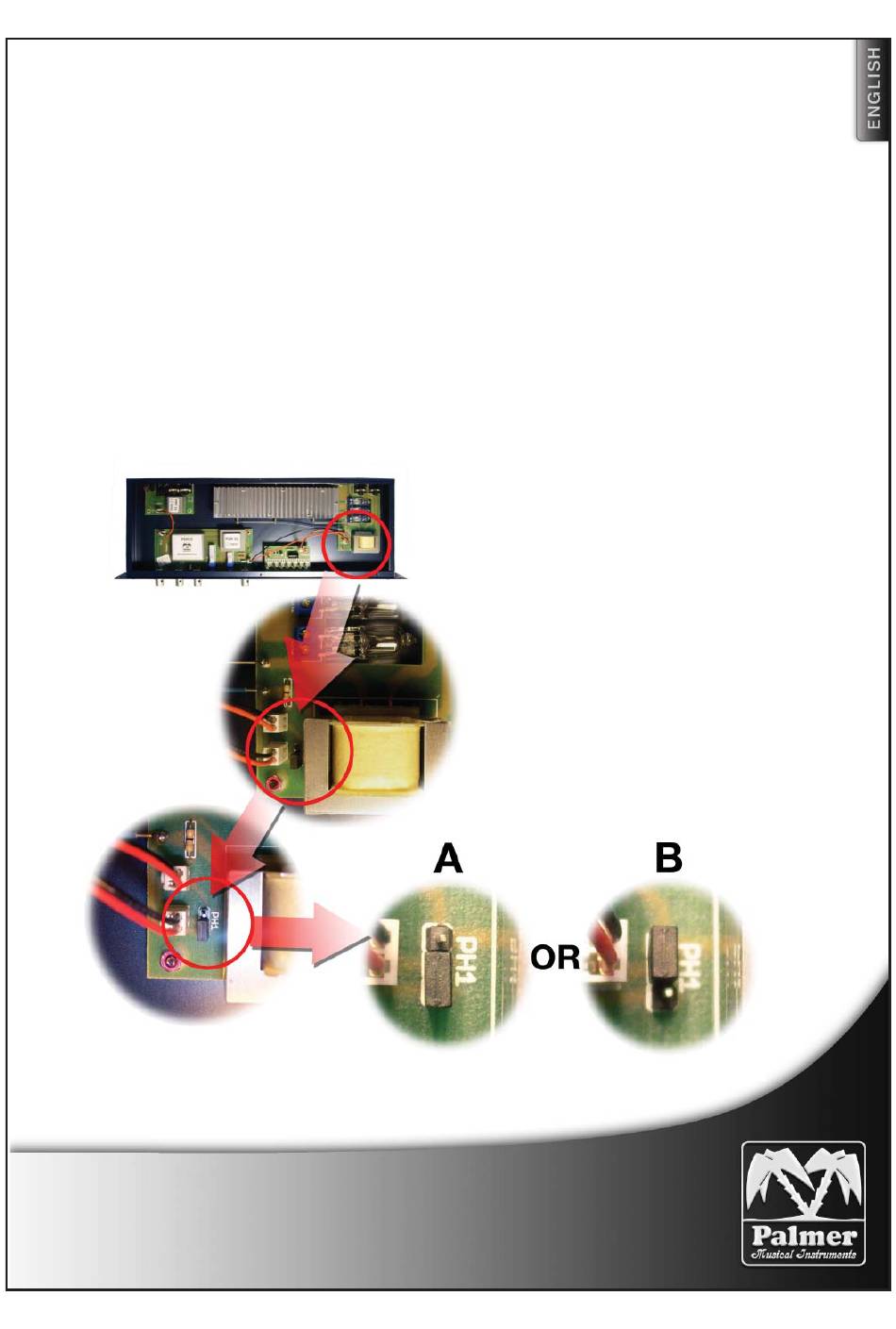

Remove the top cover of the PGA04 and
locate the jumper as shown below.
STEP 2:
For the LED Chain to display the Input level,
pull the jumper out using a pair of fi ne twee-
zers and stick it back on in the alternative
position.
A: The LED chain displays the load on
the load box - this is the factory setting.
B: The LED chain shows the input level at
all times
