MANUAL
PGA05
Palmer
Musical Instruments

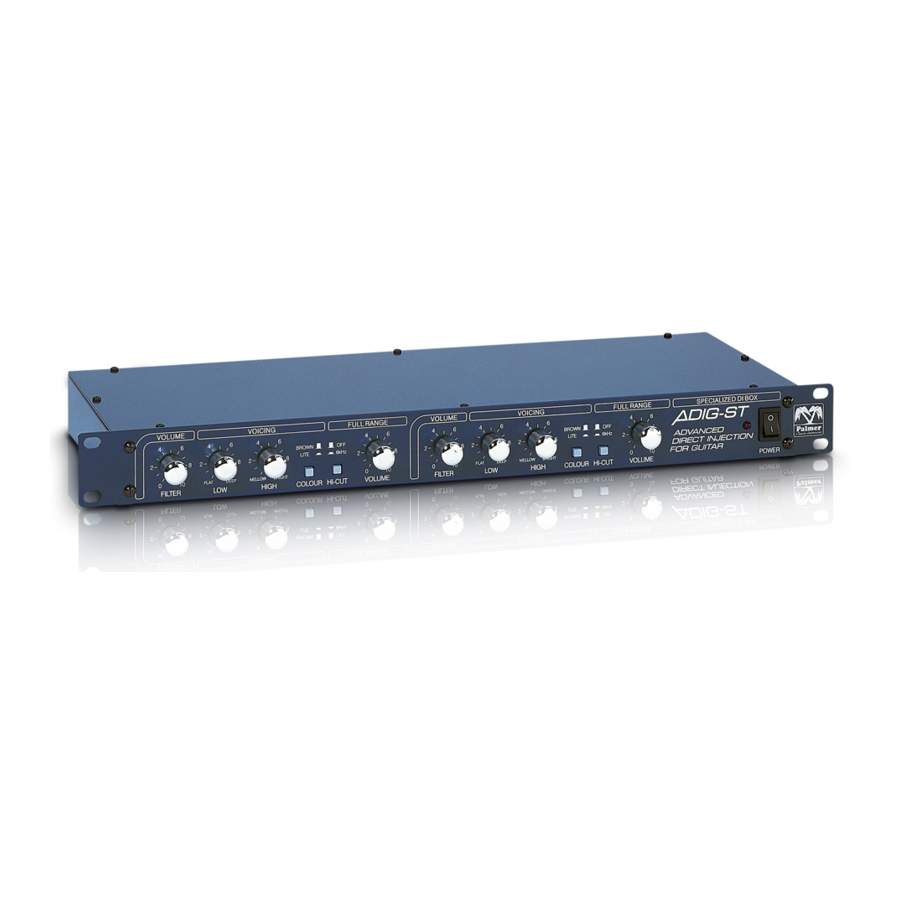

The ADIG-ST is one of a special series devoted to the direct injection of guitar amplification.
A DI box should normally transfer a linear signal through its circuitry.
The guitar amplifier's loudspeaker, however plays a very important role in forming the
electrified sound, and therefore must be taken into account when replacing the miked-up
sound. While the ADIG-LB has a built-in Load Box - loudspeaker substitute - for connecting
directly to the amplifier, the ADIG-ST differs in that it is effectively a two channel (stereo)
DI box. This means that it can not only accept the full power output of an amplifier, but also
a preamplifier or multieffect line output signal.
Advertisement
Table of Contents
Related Manuals for Palmer ADIG-ST
Summary of Contents for Palmer ADIG-ST

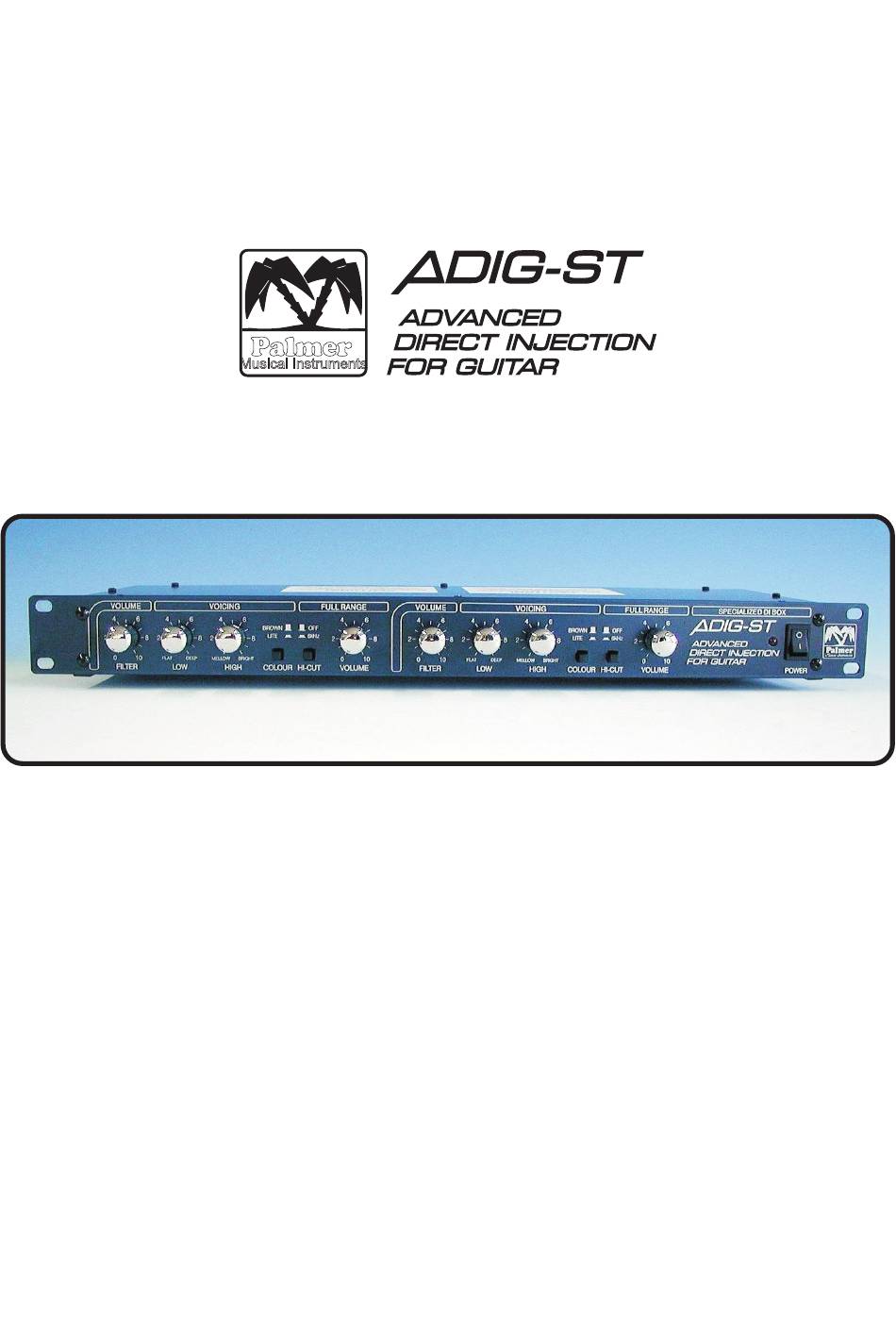

- Page 1 Palmer Musical Instruments The ADIG-ST is one of a special series devoted to the direct injection of guitar amplification. A DI box should normally transfer a linear signal through its circuitry. The guitar amplifier's loudspeaker, however plays a very important role in forming the electrified sound, and therefore must be taken into account when replacing the miked-up sound.
- Page 2 - Guitar Amplifier and ADIG-ST. Background The ADIG-St is one of a special series devoted to the direct injection of guitar amplification. A DI box should normally transfer a linear signal through its circuitry. The guitar amplifier’s loudspeaker, however plays a very important role in forming the electrified sound, and therefore must be taken into account when replacing the miked-up sound.
- Page 3 Tip! If you are not using both channels of the ADIG-ST, link the THRU - CHANNEL 1 socket to the INPUT - CHANNEL 2, then you can use the controls of both channels to optimize the separate “clean”...
- Page 4 Power Supply: 115/230V Switchable, Fuse 63AT/230v, 125mAT/115V On/Off Switch, LED, Combined Power Socket/Fuse Holder © Palmer Musical Instruments, Adam Hall GmbH, D-61267 Neu-Anspach, Daimlerstr. 9, Germany TEL: ++49 (0)6081 94190 FAX:++49 (0)6081 94190 Web: www.palmer-germany.com, e mail: palmer@adamhall.com USA: JAMS audio, 4605 Elkins Avenue, Nashville, TN 37209, www.palmergear.com, e-mail: jamsaudio@palmergear.com...
