OWNER'S MANUAL | ASSEMBLY GUIDE
ASSEMBLY GUIDE

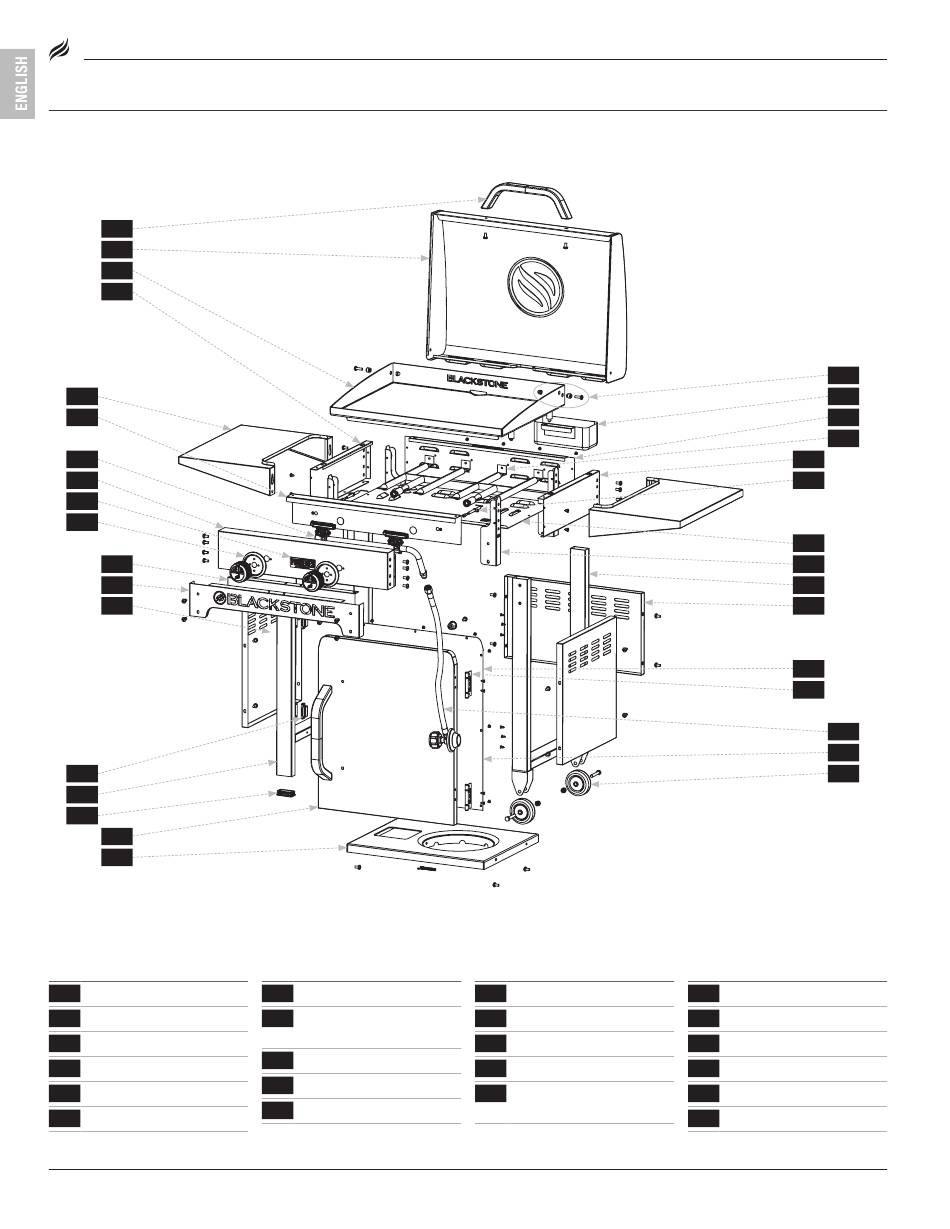

ExPLODED VIEW
8
2.1
2.2
1.3c
9
1.5
1.7
1.1a
1.2
1.1b
4.1
4
6
10.2
10
10.1
7
3
PARTS LIST
PARTS
QTY
Control panel
1
1.1a
Control knob bezels
2
1.1b
logo badge
1
1.2
Rear panel
1
1.3a
Bottom panel
1
1.3b
left side panel
1
1.3c
04
PARTS
QTY
Right side panel
1
1.3d
U Reinforcement
4
1.4
plates
Baffle panel
1
1.5
Ignition needles
2
1.6
Gas rail
1
1.7
PARTS
QTY
H burners
2
1.8
Regulator
1
1.9
Hood
1
2.1
Griddle top
1
2.2
Hood hinge
2
2.3
assembly
Models: 2358 • 2359 • 2360
2.3
13
1.3a
1.8
1.3d
1.6
1.3b
1.4
11
5
7.1
7.2
1.9
7.3
12
PARTS
QTY
Background panel
1
4.1
Handle caps
2
7.1
door hinges
2
7.2
door panel lining
1
7.3
leg caps
2
10.1
Magnets
2
10.2
BLACKSTONEPRODUCTS.COM/SUPPORT
Advertisement
Related Manuals for Black Stone 2358
Summary of Contents for Black Stone 2358
- Page 1 OWNER’S MANUAL | ASSEMBLY GUIDE Models: 2358 • 2359 • 2360 ASSEMBLY GUIDE ExPLODED VIEW 1.3c 1.3a 1.3d 1.1a 1.1b 1.3b 10.2 10.1 PARTS LIST PARTS PARTS PARTS PARTS Control panel Right side panel H burners Background panel 1.1a 1.3d...
- Page 2 Models: 2358 • 2359 • 2360 ASSEMBLY GUIDE | OWNER’S MANUAL Body (1 piece) Griddle top & Hood (1 piece) Cart base (1 piece) Front logo panel (1 piece) Rear panel (1 piece) side panels door assembly (2 pieces) (1 piece)
- Page 3 OWNER’S MANUAL | ASSEMBLY GUIDE Models: 2358 • 2359 • 2360 AsseMBlY INsTRUCTIoNs TOOLS NEEDED: TOOL NEEDED: TOOL NEEDED: TOOL NEEDED: Find a large, clean area to assemble your appliance� #3 Phillips head screwdriver & #3 Phillips head screwdriver Adjustable wrench 5mm Allen wrench Remove all packing material before assembling�...
- Page 4 Models: 2358 • 2359 • 2360 ASSEMBLY GUIDE | OWNER’S MANUAL With the help of another person, use two (2) M6x12 bolts With the help of another person, use two (2) M6x12 bolts STEP 03 STEP 04 [b.] to attach the right side of the cart base to the right leg assembly�...
- Page 5 OWNER’S MANUAL | ASSEMBLY GUIDE Models: 2358 • 2359 • 2360 Use four (4) M6x12 bolts [b.] to secure the griddle body to Install the two (2) control knobs [a.] by pushing them into STEP 09 STEP 10 the left and right leg assemblies� (Note: loosely install all screws place in the oFF position�...
- Page 6 Models: 2358 • 2359 • 2360 ASSEMBLY GUIDE | OWNER’S MANUAL Use four (4) of the removed M6x12 bolts to secure one (1) Use the two (2) M6x12 bolts pre-installed in one (1) handle to STEP 13 STEP 14 side shelf to the left side of the griddle body�...
- Page 7 OWNER’S MANUAL | ASSEMBLY GUIDE Models: 2358 • 2359 • 2360 Use the two (2) M6x12 bolts pre-installed in one (1) handle to Use six (6) self-tapping screws [d.] to attach the door STEP 17 STEP 18 install that handle to the door assembly�...
