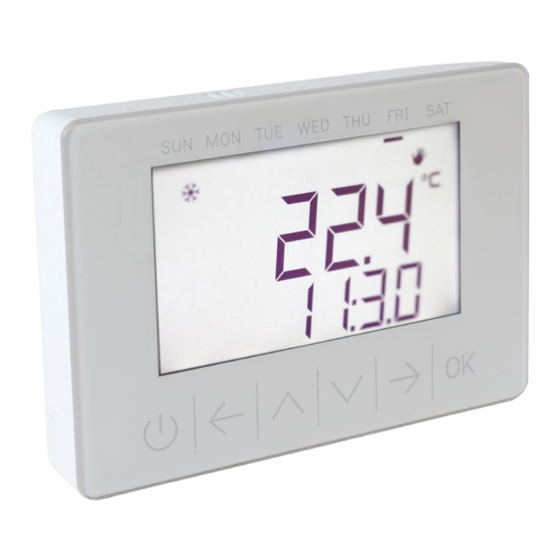

K495C
Thermostat with temperature
and humidity probe,
CANbus connection
Versions and product codes
PRODUCT CODE
K495CY002
Completion codes
• KPM22: electronic regulation unit for HVAC systems
POWER SUPPLY
12÷24 Vac / 12 Vdc
Thermostat with temperature and humidity probe.
Back-lit LCD display with touch buttons.
For use with the KPM22 regulation unit through CANbus
connection to control HVAC systems.
Installation on wall or on exposed or flush-mount Italian
standard 3-module box.
Technical data
• Power supply:
12÷24 Vac (±15 %), 50÷60 Hz (±3 Hz); max absorption 2 VA,
not insulated
12 Vdc (±15 %), max absorption 1 W, not insulated
(independent power or supplied by a controller)
• Wall-mount installation (with anchor-screws and screws)
or in the most common built-in boxes (with screws)
• Working temperature range: 0÷40 °C
• Working humidity range: 5÷95 % R.H. without condensation
• Temperature and relative humidity sensor: 0÷40 °C, 10÷70 %
• Protection class: IP30
• Display: 2-line LCD with function icons
• Dimensions: 112 x 77 x 19 mm
Giacomini S.p.A.
Via per Alzo 39, 28017 San Maurizio d'Opaglio (NO) Italia
consulenza.prodotti@giacomini.com
+39 0322 923372 - giacomini.com
Datasheet
1115EN 06/2023
1
